De36%202%2000%20etc
Continuous Power Handling
Voice Coil Diameter
Diaphragm Material
Throat Diameter
As the newest ring radiator offering from B&C speakers, the DE36 features a ketone polymer diaphragm with a ferrite magnet motor. Extensive FEA modeling and physical testing over the last several years has culminated in these 1.5 inch (38mm) coil ring drivers with outstanding sensitivity, high frequency extension, and compactness. A practical recommended crossover point of 1.8kHz and sensitivity of 108dB in the DE36 allows for a wide range of applications, including compact two way boxes and line arrays.




Features

  • 70 W continuous program power capacity
  • 1" horn throat diameter
  • 38 mm (1.5 in) copper clad aluminum voice coil
  • HT polymer diaphragm
  • 1200 - 20000 Hz response
  • 107.5 dB sensitivity

Specifications1

  • Throat Diameter25 mm (1.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.2 Ω
  • Nominal Power Handling235 W
  • Continuous Power Handling370 W
  • Sensitivity4107.5 dB
  • Frequency Range1.2 - 20.0 kHz
  • Recommended Crossover51.8 kHz
  • Voice Coil Diameter38 mm (1.5 in)
  • Winding MaterialCopper Clad Aluminum
  • Inductance0.05 mH
  • Diaphragm MaterialHT Polymer
  • Flux Density1.6 T
  • Magnet MaterialFerrite

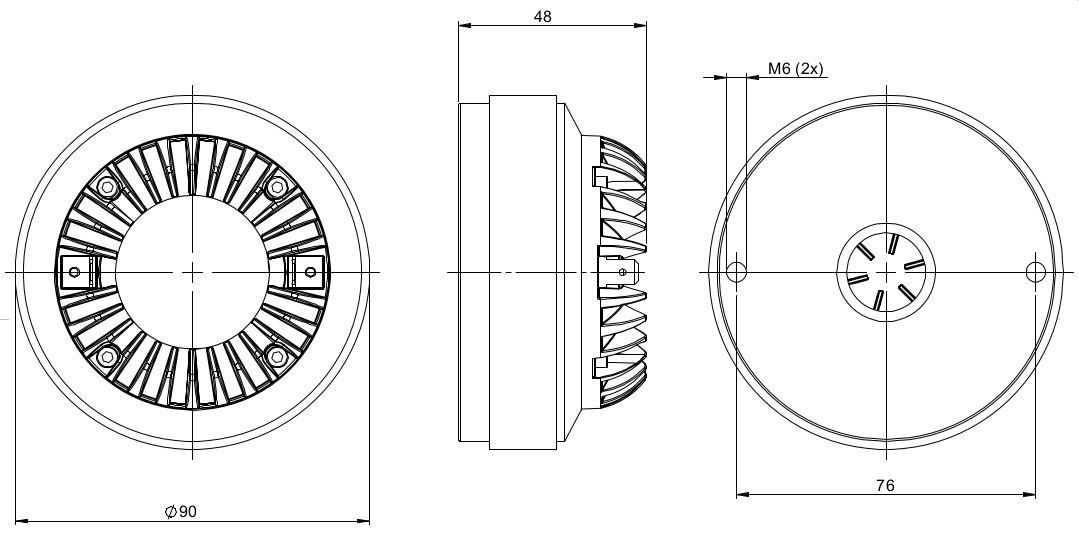

Mounting and Shipping Info

  • Two M6 holes 180° on 76 mm (3 in) diameter
  • Overall Diameter90 mm (3.54 in)
  • Depth48 mm (1.89 in)
  • Net Weight1.1 kg (2.43 lb)

replacement diaphragm

  • MMD0368
  • Driver mounted on B&C ME 45 horn.
  • 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated nominal impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • 12 dB/oct. or higher slope high-pass filter.
