Continuous power handling
Voice coil diameter
Magnet material





Features

  • 38 mm (1.5 in) copper voice coil
  • 70 - 6000 Hz response
  • 93 dB sensitivity
  • Neodymium magnet allows a very light yet powerful motor assembly
  • Aluminium demodulating ring allows a very low distortion figure
  • 300 W continuous program power capacity

Specifications

  • Nominal Diameter170 mm (6.5 in)
  • Nominal Impedance16 Ω
  • Minimum Impedance12.4 Ω
  • Nominal Power Handling1150 W
  • Continuous power handling2300 W
  • Sensitivity (1W/1m)393.0 dB
  • Frequency Range70 - 6000 Hz
  • Voice Coil Diameter38 mm (1.5 in)
  • Winding MaterialCopper
  • Former MaterialKapton
  • Winding Depth12.0 mm (0.5 in)
  • Magnetic Gap Depth6.0 mm (0.25 in)
  • Flux Density1.15 T

Design

  • Surround ShapeRoll
  • Cone ShapeExponential
  • Magnet MaterialNeodymium Ring
  • SpiderSingle
  • Pole DesignT-Pole
  • Woofer Cone TreatmentWP Waterproof Front Side
  • Recommended Enclosure9.0 dm3 (0.32 ft3)
  • Recommended Tuning62 Hz

Parameters4

  • Resonance Frequency70 Hz
  • Re11.3 Ω
  • Qes0.53
  • Qms10.29
  • Qts0.5
  • Vas8.9 dm3 (0.31 ft3)
  • Sd132.0 cm2 (20.5 in2)
  • η₀0.53 %
  • Xmax± 6.0 mm
  • Xvar± 5.5 mm
  • Mms15.0 g
  • Bl11.7 Txm
  • Le1.0 mH
  • EBP132 Hz

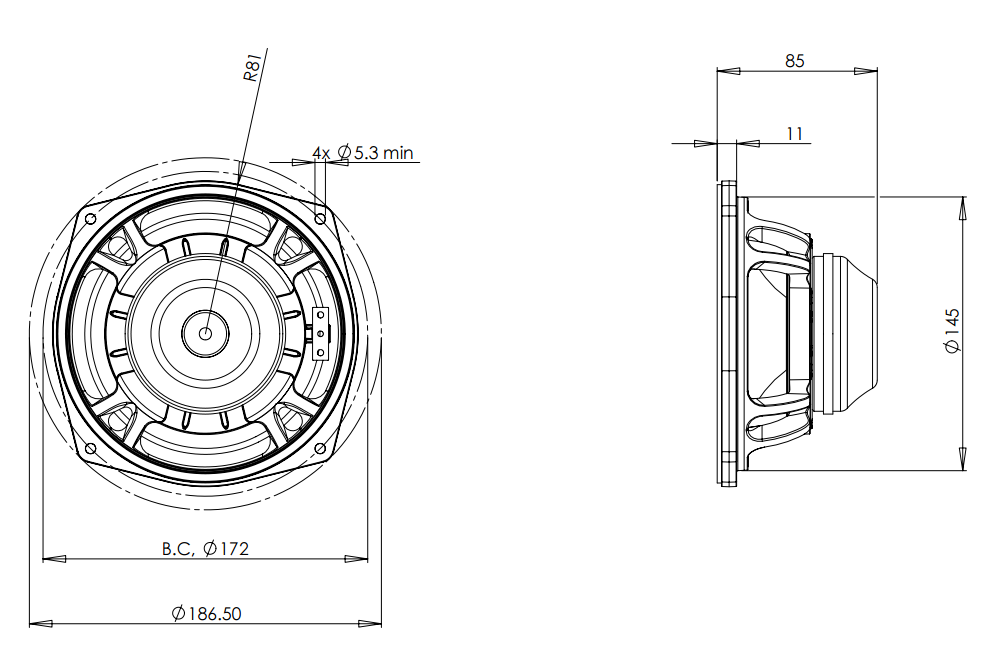

Mounting and Shipping Info

  • Overall Diameter187 mm (7.4 in)
  • Bolt Circle Diameter172 mm (6.7 in)
  • Baffle Cutout Diameter145.0 mm (5.7 in)
  • Depth85 mm (3.3 in)
  • Flange and Gasket Thickness11 mm (0.4 in)
  • Air Volume Occupied by Driver0.63 dm3 (0.02 ft3)
  • Net Weight1.2 kg (2.6 lb)
  • Shipping Units1
  • Shipping Weight1.4 kg (3.09 lb)
  • Shipping Box210x210x125 mm (8.27x8.27x4.92 in)

Service Kit

  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 4V for 16 ohm Nominal Impedance
  • Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
