Continuous power handling
Voice coil diameter
Magnet material
The MBX series mid-bass woofers from B&C Speakers offer acoustic designers a new range of high efficiency, wide bandwidth alternatives that are not currently available in the B&C range. These full-featured transducers incorporate lightweight neodymium motors, inside/outside wound copper clad aluminum wire voice coils, weatherproof impregnated paper cones, and a symmetrical inductance profile. The MBX Series is especially well suited for two-way loudspeaker enclosures.





Features

  • Product Preview - Coming Soon....
  • 400 W continuous program power capacity
  • 44 mm (1.7 in) aluminium voice coil
  • 115 - 5000 Hz response
  • 98 dB sensitivity
  • Neodymium magnet allows a very light yet powerful motor assembly
  • Aluminium ring allows a very low distortion figure

Specifications

  • Nominal Diameter170 mm (6.5 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance6.0 Ω
  • Nominal Power Handling1200 W
  • Continuous power handling2400 W
  • Sensitivity (1W/1m)398.0 dB
  • Frequency Range115 - 5000 Hz
  • Voice Coil Diameter44 mm (1.7 in)
  • Winding MaterialAluminium
  • Former MaterialGlass Fibre
  • Winding Depth10.0 mm (0.37 in)
  • Magnetic Gap Depth6.0 mm (0.25 in)
  • Flux Density1.55 T

Design

  • Surround ShapeTriple Roll
  • Cone ShapeExponential
  • Magnet MaterialNeodymium Ring
  • SpiderSingle
  • Pole DesignT-Pole
  • Woofer Cone TreatmentWaterproof Impregnated Cone
  • Recommended Enclosure3.0 dm3 (0.11 ft3)
  • Recommended Tuning120 Hz

Parameters4

  • Resonance Frequency113 Hz
  • Re5.4 Ω
  • Qes0.34
  • Qms3.9
  • Qts0.31
  • Vas4.1 dm3 (0.14 ft3)
  • Sd132.0 cm2 (20.46 in2)
  • η₀1.4 %
  • Xmax± 3.5 mm
  • Xvar± 3.0 mm
  • Mms12.0 g
  • Bl11.7 Txm
  • Le0.2 mH
  • EBP332 Hz

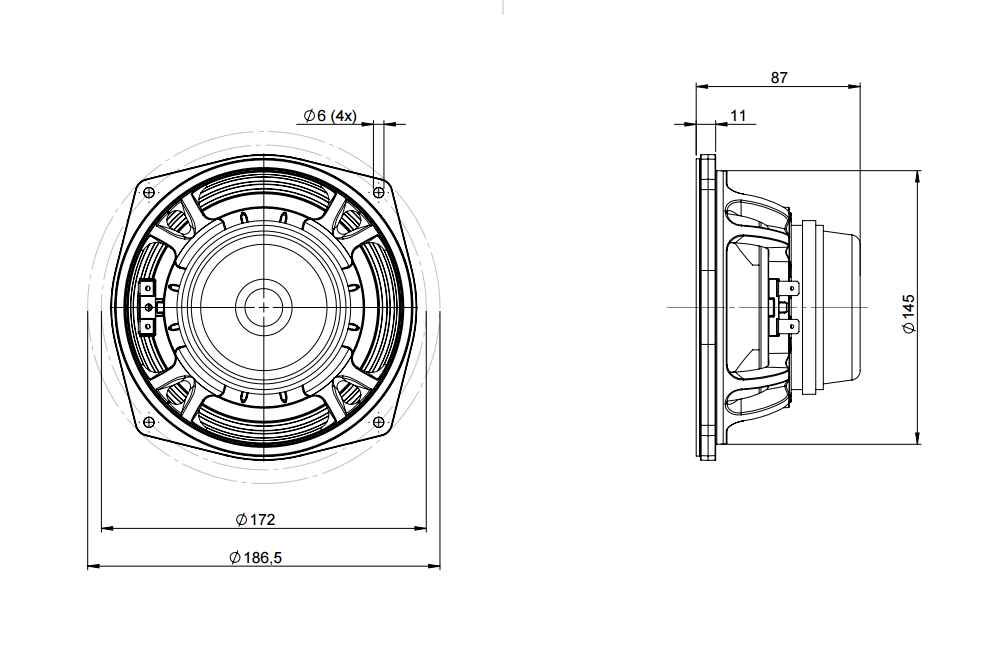

Mounting and Shipping Info

  • Overall Diameter187 mm (7.36 in)
  • Bolt Circle Diameter172 mm (6.7 in)
  • Baffle Cutout Diameter145.0 mm (5.7 in)
  • Depth87 mm (3.43 in)
  • Flange and Gasket Thickness11 mm (0.4 in)
  • Air Volume Occupied by Driver0.6 dm3 (0.02 ft3)
  • Net Weight1.59 kg (3.51 lb)
  • Shipping Units1
  • Shipping Weight1.79 kg (3.95 lb)
  • Shipping Box210x210x125 mm (8.27x8.27x4.92 in)

Service Kit

  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
