Features
160 W continuous program power capacity
2' horn throat diameter
400 - 16000 Hz response
108.5 dB sensitivity
Neodymium magnet assembly
Time coherent coaxial design
Specifications HF unit
Throat Diameter
50 mm (2 in)
Nominal Impedance
8 Ω
Minimum Impedance
7 Ω
Nominal Power Handling
20 W
Continuous Power Handling
40 W
Sensitivity
108.5 dB
Frequency Range
10 - 16 kHz
Recommended Crossover
10 kHz
Voice Coil Diameter
32 mm (1.2 in)
Winding Material
Aluminium
Inductance
0.11 mH
Diaphragm Material
Polyester
Magnet Material
Neodymium
Flux Density
2 T
Specifications MF unit
Throat Diameter
50 mm (2 in)
Nominal Impedance
8 Ω
Minimum Impedance
8 Ω
Nominal Power Handling
80 W
Continuous Power Handling
160 W
Sensitivity
108.5 dB
Frequency Range
0.4 - 10 kHz
Recommended Crossover
0.4 kHz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Inductance
0.3 mH
Diaphragm Material
Composite
Magnet Material
Neodymium
Flux Density
2 T

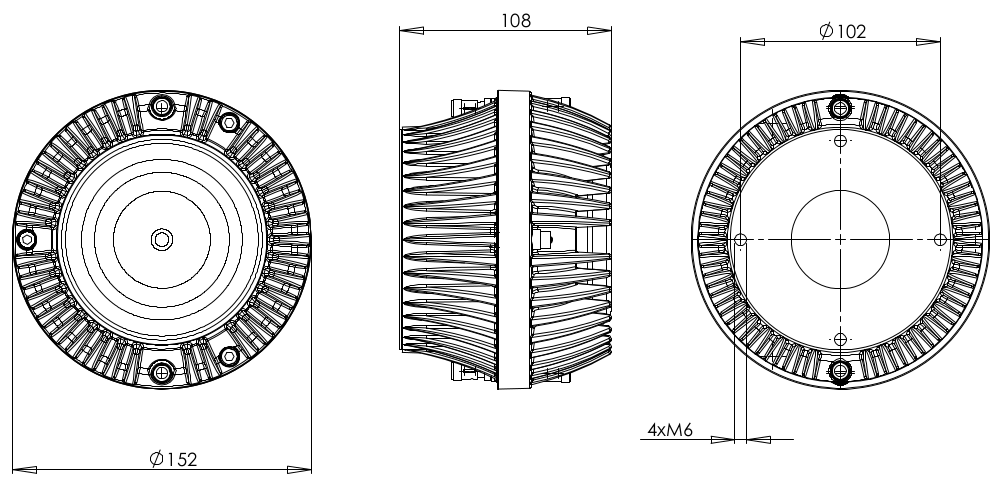

Mounting and Shipping Info
Overall Diameter
152 mm (6 in)
Depth
108 mm (4.25 in)
Net Weight
3.39 kg (7.47 lb)
Shipping Units
1 pcs
Shipping Weight
3.59 kg (7.91 lb)
Shipping Box
170x170x140 mm (6.69x6.69x5.51 in)
Service Kit
hf Replacement Diaphragm
MMDTWDCX8
mf Replacement Diaphragm
MMDDCX08
