13_41_36_286_fb15cx4022_01_48_351_fb15cx40_pcb
Nominal impedance
Filter Type
Low-pass Slope
High-pass Slope

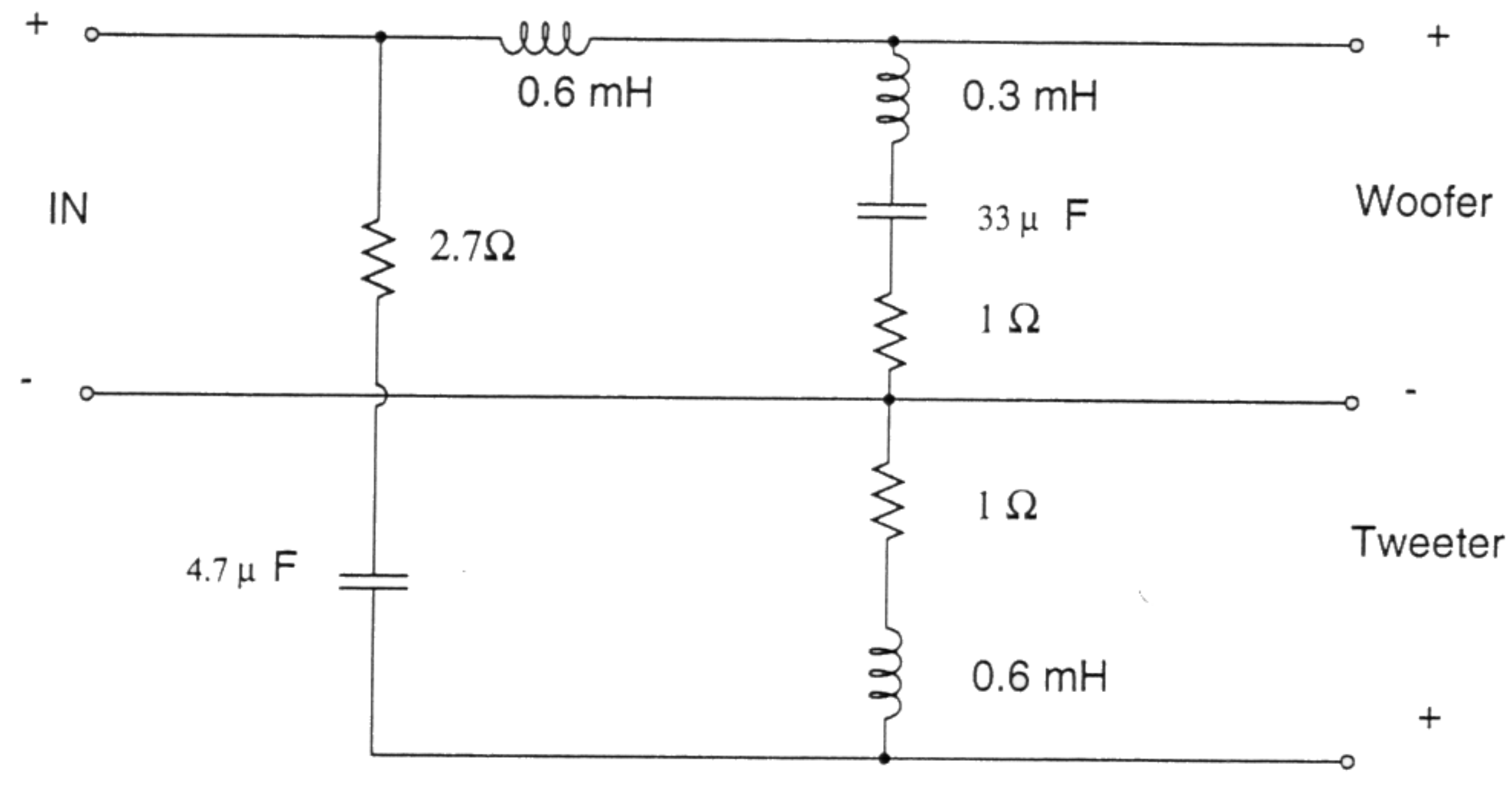

Dedicated crossover network for 15CX40 coaxial speaker




Specifications

  • Nominal Impedance8 Ω
  • Crossover Frequency1.4 kHz
  • Filter TypeTwo Way
  • Low-pass Slope6.0 dB/oct
  • High-pass Slope12.0 dB/oct
  • Overall Dimensions143x108 mm (5.63x4.25 in)

Mounting and Shipping Info

  • Net Weight0.6 kg (1.32 lb)
  • Shipping Units1
  • Shipping Weight0.64 kg (1.41 lb)
  • Shipping Box135x150x40 mm (5.31x5.91x1.57 in)
  • Other Details6 mm diameter holes on the PCB at 131 mm x 96 mm
