Features
- 40 W continuous program power capacity
- 1" horn throat diameter
- 25 mm (1 in) aluminium voice coil
- Polyester diaphragm
- 1500 - 18000 Hz response
- 107 dB sensitivity
Specifications1
- Throat Diameter25 mm (1.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance6.3 Ω
- Nominal Power Handling220 W
- Continuous power handling340 W
- Sensitivity (1W/1m)4107.0 dB
- Frequency Range1.5 - 18.0 kHz
- Recommended Crossover52.5 kHz
- Voice Coil Diameter25 mm (1.0 in)
- Winding MaterialAluminium
- Inductance0.1 mH
- Diaphragm MaterialMylar
- Flux Density1.55 T
- Magnet MaterialFerrite

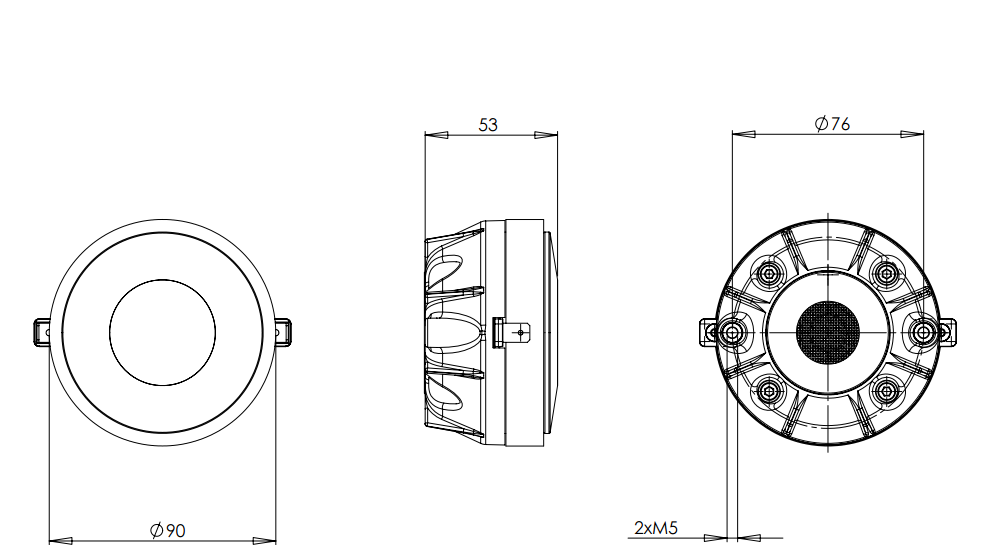

Mounting and Shipping Info
- Two M5 holes 180° on 76 mm (3 in) diameter
- Overall Diameter90 mm (3.5 in)
- Depth53 mm (2.1 in)
- Net Weight0.8 kg (1.8 lb)
- Shipping Units1
- Shipping Weight0.83 kg (1.82 lb)
- Shipping Box105x105x65 mm (4.13x4.13x2.56 in)
- Driver mounted on B&C ME 10 horn.
- 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- 12 dB/oct. or higher slope high-pass filter.
