    1.4 inches

    The DE990TN is a uniquely compact 86mm (3.4 in) voice coil, neodymium high frequency driver. The compact 118mm diameter was achieved using a specially milled inside ring neodymium magnet. The diaphragm used in the DE990TN has been completely redesigned to incorporate a bent edge voice coil former, new dome and surround geometry and an optimized phase plug. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.


    200 W continuous program power capacity
    1.4" horn throat diameter
    86 mm (3.4 in) aluminium voice coil
    Titanium diaphragm
    500 - 18000 Hz response
    108.5 dB sensitivity
    Neodymium magnet assembly with shorting copper cap


    Throat Diameter

    36 mm (1.4 in)

    Nominal Impedance

    16 Ω

    Minimum Impedance

    11.5 Ω

    Nominal Power Handling

    100 W

    Continuous Power Handling

    200 W


    108.5 dB

    Frequency Range

    0.5 kHz - 18 kHz

    Recommended Crossover

    1 kHz

    Voice Coil Diameter

    86 mm (3.4 in)

    Winding Material



    0.1 mH

    Diaphragm Material


    Flux Density

    1.9 T

    Max Frequency Range

    18 kHz

    Min Frequency Range

    0.5 kHz

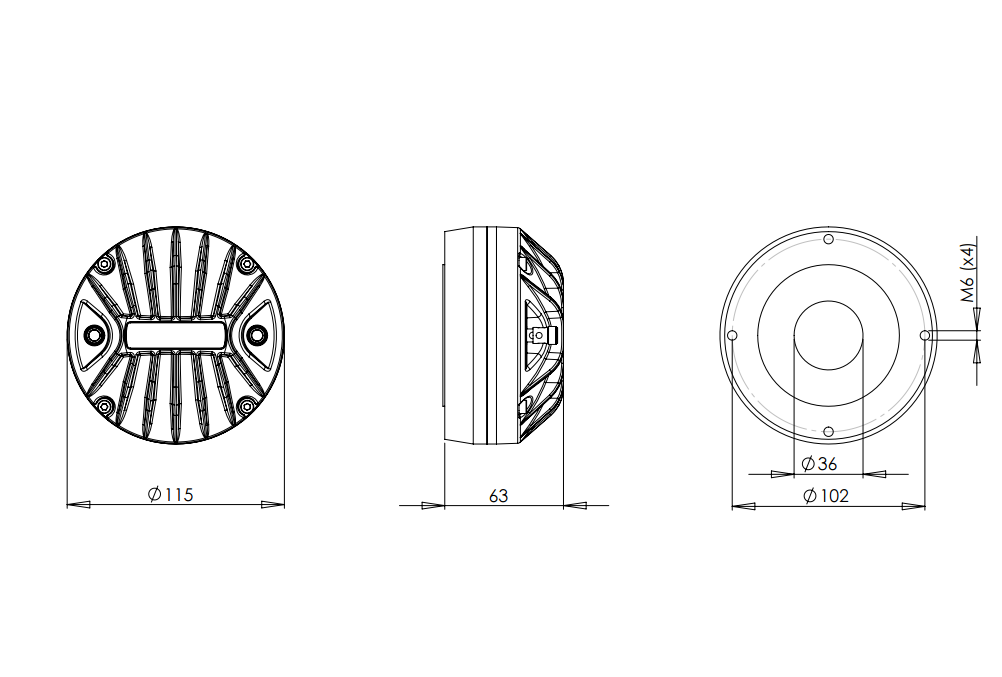

    Mounting and Shipping Info

    Other details

    4x M6 Mounting Studs with bolts and washers included

    Overall Diameter

    118 mm (4.65 in)


    63 mm (2.48 in)

    Net Weight

    2 kg (4.41 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    2.04 kg (4.5 lb)

    Shipping Box

    120x120x65 mm (4.72x4.72x2.56 in)

    Service Kit

    hf Replacement Diaphragm
