Features
220 W continuous program power capacity
1.5" horn throat diameter
75 mm (3 in) aluminium voice coil
Titanium diaphragm
500 - 18000 Hz response
107.5 dB sensitivity
Shorting copper cap for extended HF response
Specifications
Throat Diameter
38 mm (1.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
8.4 Ω
Nominal Power Handling
110 W
Continuous Power Handling
220 W
Sensitivity
107.5 dB
Frequency Range
1 - 18 kHz
Recommended Crossover
0.8 kHz
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Inductance
0.14 mH
Diaphragm Material
Titanium
Magnet Material
Ferrite
Flux Density
1.9 T
Mounting and Shipping Info
Other details

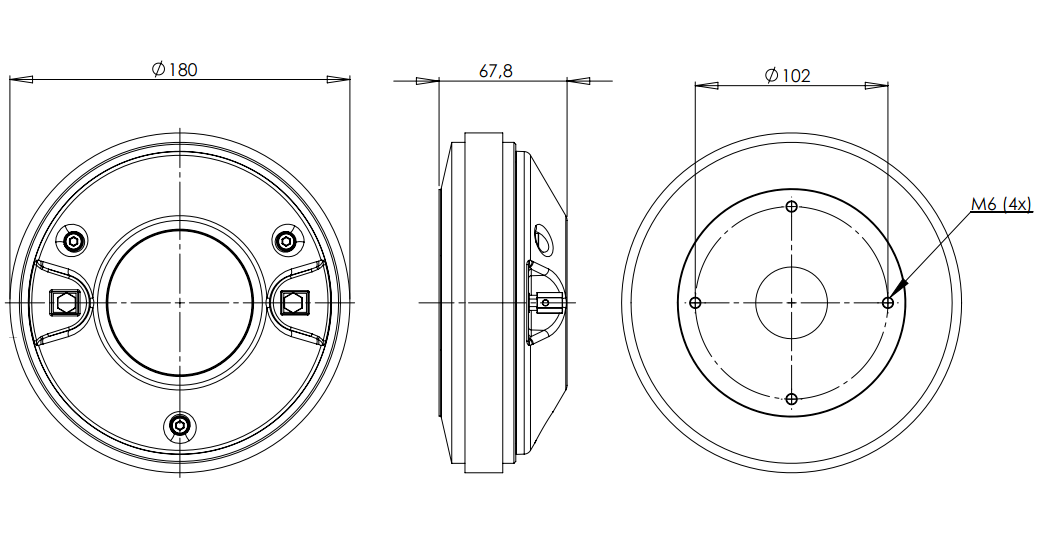

4x M6 Mounting Studs with bolts and washers included
Overall Diameter
180 mm (7.1 in)
Depth
70 mm (2.8 in)
Net Weight
6 kg (13.2 lb)
Shipping Units
1 pcs
Shipping Weight
6.18 kg (13.62 lb)
Shipping Box
190x190x100 mm (7.48x7.48x3.94 in)
Service Kit
hf Replacement Diaphragm
MMD3ATN8
Available in Fast-On Version
