Throat diameter
Nominal coverage horizontal
Nominal coverage vertical

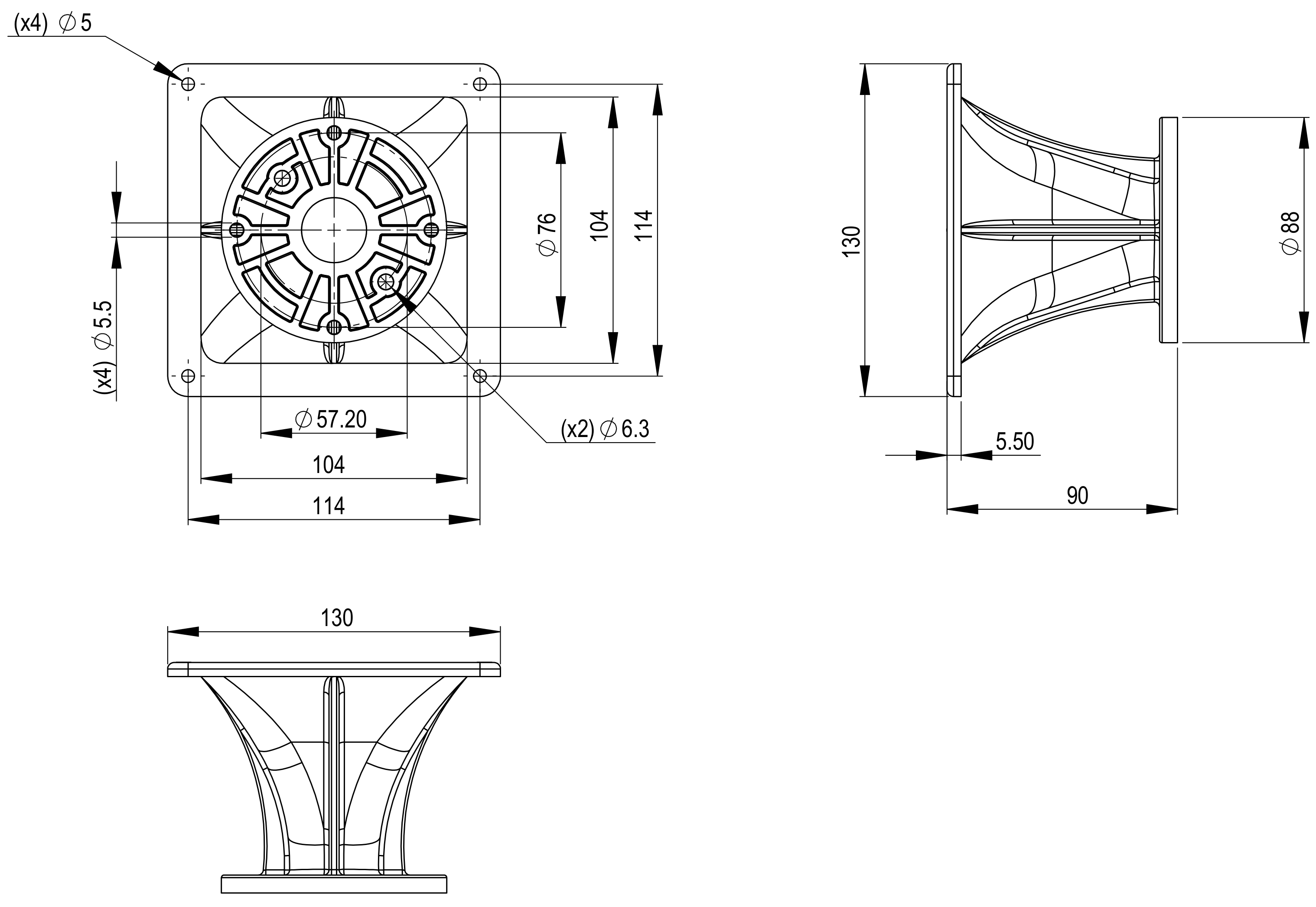

The ME10v2 replaces the ME10. The revised design adds two additional mounting holes to expand driver compatibility. The ME10v2 should be backwards compatible with most previous applications for the ME10, but we recommend that all users check the product revised drawings, to be certain.






Features

  • 1" throat entry
  • 90° x 60° nominal coverage
  • Hyperbolic Cosine Flare
  • Excellent loading down to 1.5 kHz

Specifications1

  • Throat Diameter25 mm (1.0 in)
  • Nominal Coverage Horizontal90 °
  • Nominal Coverage Vertical60 °
  • Cutoff Frequency1.5 kHz
  • MaterialABS
  • DesignHyperbolic Cosine Flare
  • Dimensions130.5x130.5x90 mm (5.1x5.1x3.5 in)

Mounting and Shipping Info

  • Baffle Cutout Dimension104x104 mm (4.1x4.1 in)
  • Air Volume Occupied by Horn0.15 dm3 (0.01 ft3)
  • Net Weight0.15 kg (0.33 lb)
  • Shipping Units20
  • Shipping Weight6.0 kg (13.2 lb)
  • Shipping Box540x350x390 mm (21.2x13.8x15.3 in)
  • Other Details4x 5.5 mm (0.22 in) holes 90° on 76 mm (3 in) diameter --- 2x 6.3 mm (0.25 in) holes 180° on 57.2 mm (2.26 in) diameter
  • Horn mounted on B&C DE 10 compression driver.
