Features
- 1" throat entry
- 90° x 60° nominal coverage
- Exponential flare
- Excellent loading down to 1.5 kHz
Specifications1
- Throat Diameter25 mm (1.0 in)
- Nominal Coverage Horizontal90 °
- Nominal Coverage Vertical60 °
- Cutoff Frequency1.5 kHz
- MaterialCast Aluminium

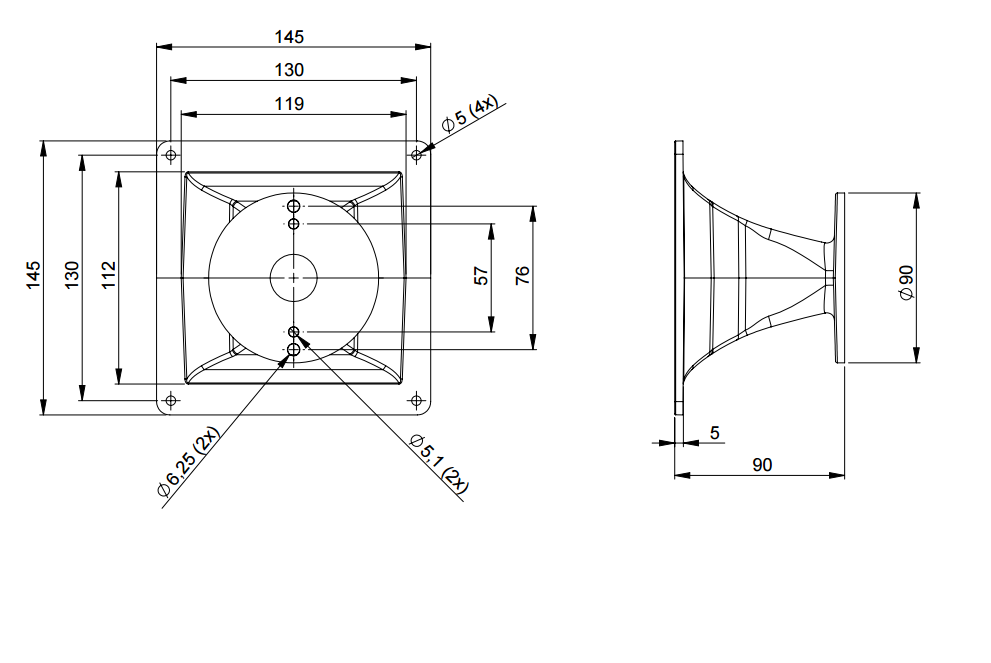

- Dimensions145x145x90 mm (5.7x5.7x3.6 in)
Mounting and Shipping Info
- Baffle Cutout Dimension118x113 mm (4.6x4.4 in)
- Air Volume Occupied by Driver0.1 dm3 (0.0 ft3)
- Net Weight0.45 kg (0.99 lb)
- Shipping Units1
- Shipping Weight0.46 kg (1.01 lb)
- Shipping Box165x165x100 mm (6.50x6.50x3.94 in)
- Other Details2x 6.3 mm (0.25 in) holes 180° on 76 mm (3 in) diameter --- 2x 5.1 mm (0.2 in) holes 180° on 57 mm (2.24 in) diameter
- Horn mounted on B&C DE 500 compression driver.
