    ME242

    1.4 inches

    Features


    1.4” throat entry \t
    Line Array optimized Waveguide \t
    120° max horizontal coverage \t
    Vertical coverage depends on configuration \t
    Very good loading down to 800 Hz

    Specifications

    Throat Diameter

    36 mm (1.4 in)

    Nominal Coverage Horizontal

    120 °

    Cutoff Frequency

    0.8 kHz

    Material

    Cast Aluminium

    Design

    Line Array Optimized Waveguide

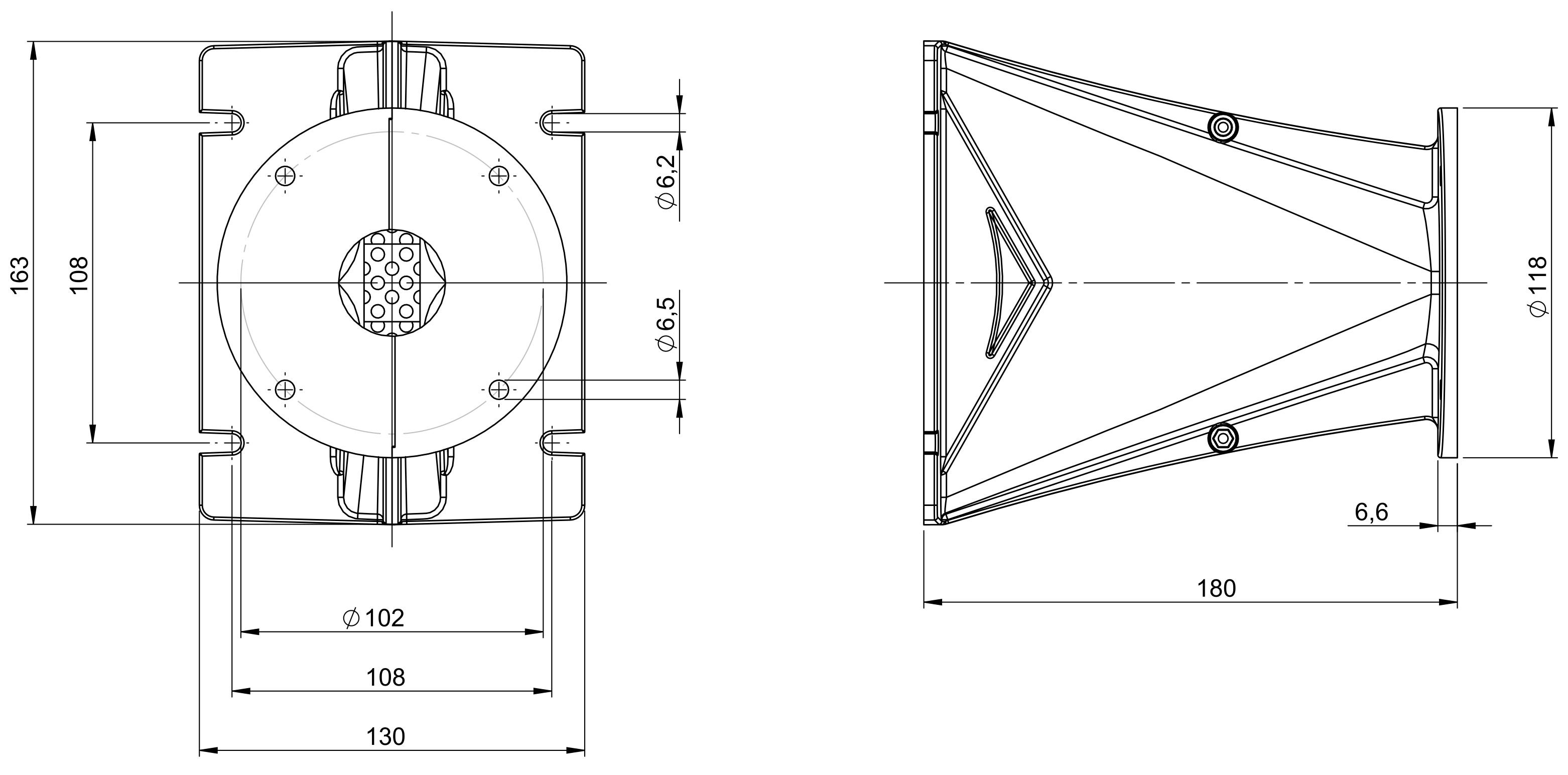

    Dimensions

    163x130x180 mm (6.42x5.12x7.09 in)

    Mounting and Shipping Info

    Other details

    Four 6.5 mm holes at 90° on 102 mm (4 in) diameter

    Baffle Cutout Dimension

    153 mm (6 in)

    Air Volume Occupied by Driver

    0.34 dm³ (0.01 ft³)

    Net Weight

    0.94 kg (2.08 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    1.04 kg (2.3 lb)

    Shipping Box

    190x135x165 mm (7.48x5.31x6.50 in)
