ME45
1 inches
Features
1" throat entry
90° x 40° nominal coverage
Exponential flare
Excellent loading down to 1 kHz
Specifications
Throat Diameter
25 mm (1 in)
Nominal Coverage Horizontal
90 °
Nominal Coverage Vertical
40 °
Cutoff Frequency
1 kHz
Material
Cast Aluminium

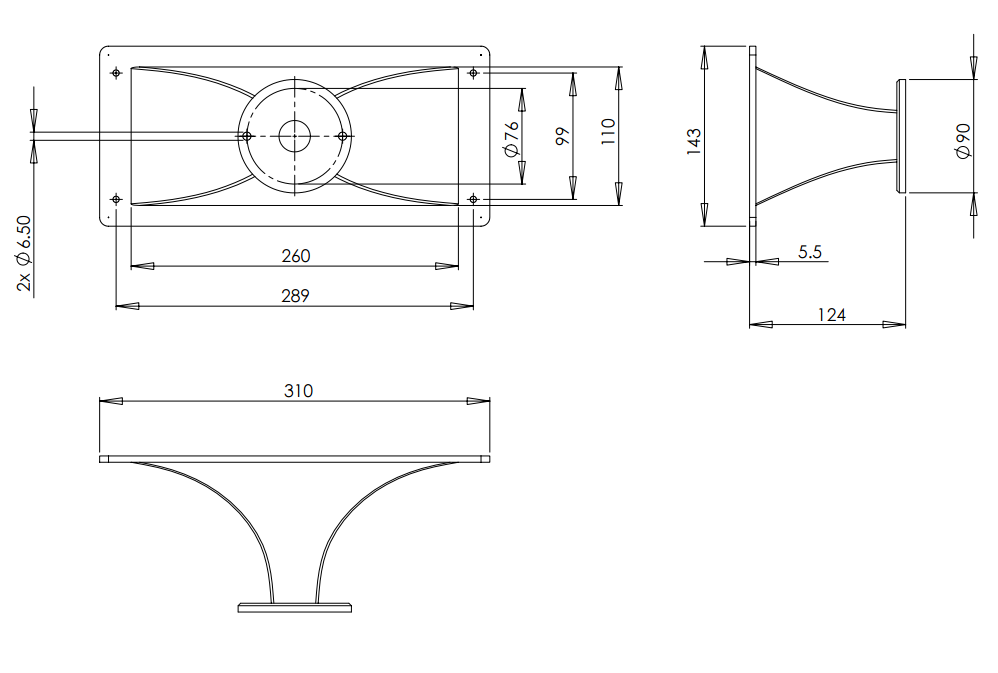

Dimensions
310x140x124 mm (12.2x5.6x4.9 in)
Mounting and Shipping Info
Other details
2x 6.5 mm (0.255 in) holes 180° on 76 mm (3 in) diameter
Baffle Cutout Dimension
260 mm (10.2 in)
Air Volume Occupied by Driver
0.26 dm³ (0.01 ft³)
Net Weight
0.86 kg (1.9 lb)
Shipping Units
1 pcs
Shipping Weight
0.96 kg (2.12 lb)
Shipping Box
