ME10
1 inches
Archived
No longer in production
Features
1" throat entry
90° x 60° nominal coverage
Hyperbolic cosine flare
Excellent loading down to 1.5 kHz
Specifications
Throat Diameter
25 mm (1 in)
Nominal Coverage Horizontal
90 °
Nominal Coverage Vertical
60 °
Cutoff Frequency
1.5 kHz
Material
ABS

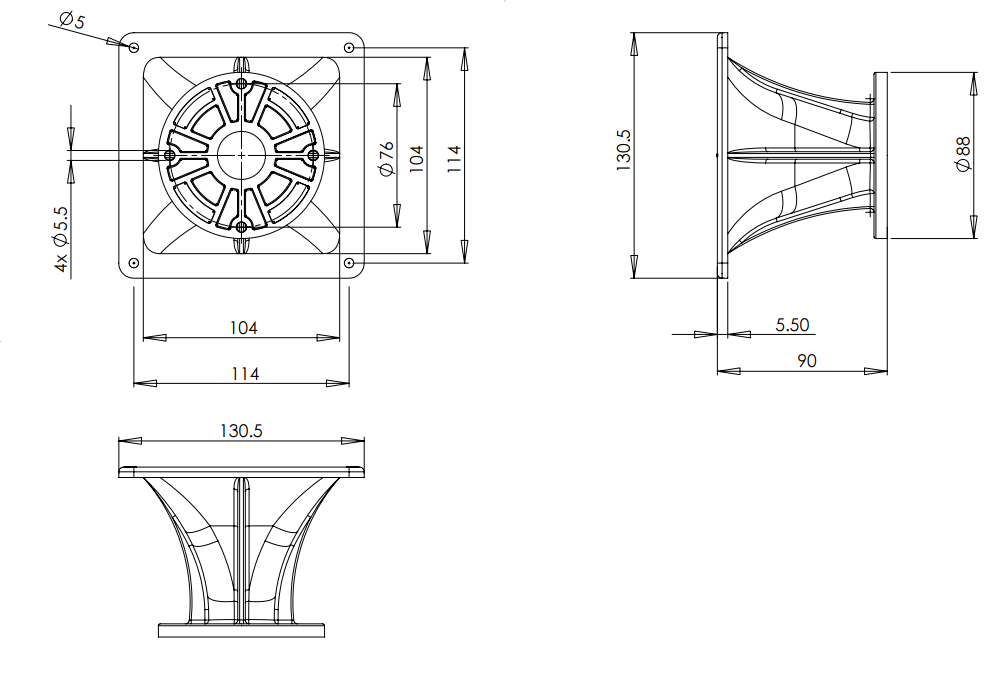

Dimensions
130.5x130.5x90 mm (5.1x5.1x3.5 in)
Mounting and Shipping Info
Other details
4x 5.5 mm (0.22 in) holes 90° on 76 mm (3 in) diameter
Baffle Cutout Dimension
104 mm (4.1 in)
Air Volume Occupied by Driver
0.15 dm³ (0.01 ft³)
Net Weight
0.17 kg (0.37 lb)
Shipping Units
1 pcs
Shipping Weight
0.23 kg (0.5 lb)
Shipping Box
