ME75
2 inch exit
Archived
Features
2” aluminium constant directivity horn
90°x 40° nominal coverage
Specifications
Throat Diameter
50 mm (2 in)

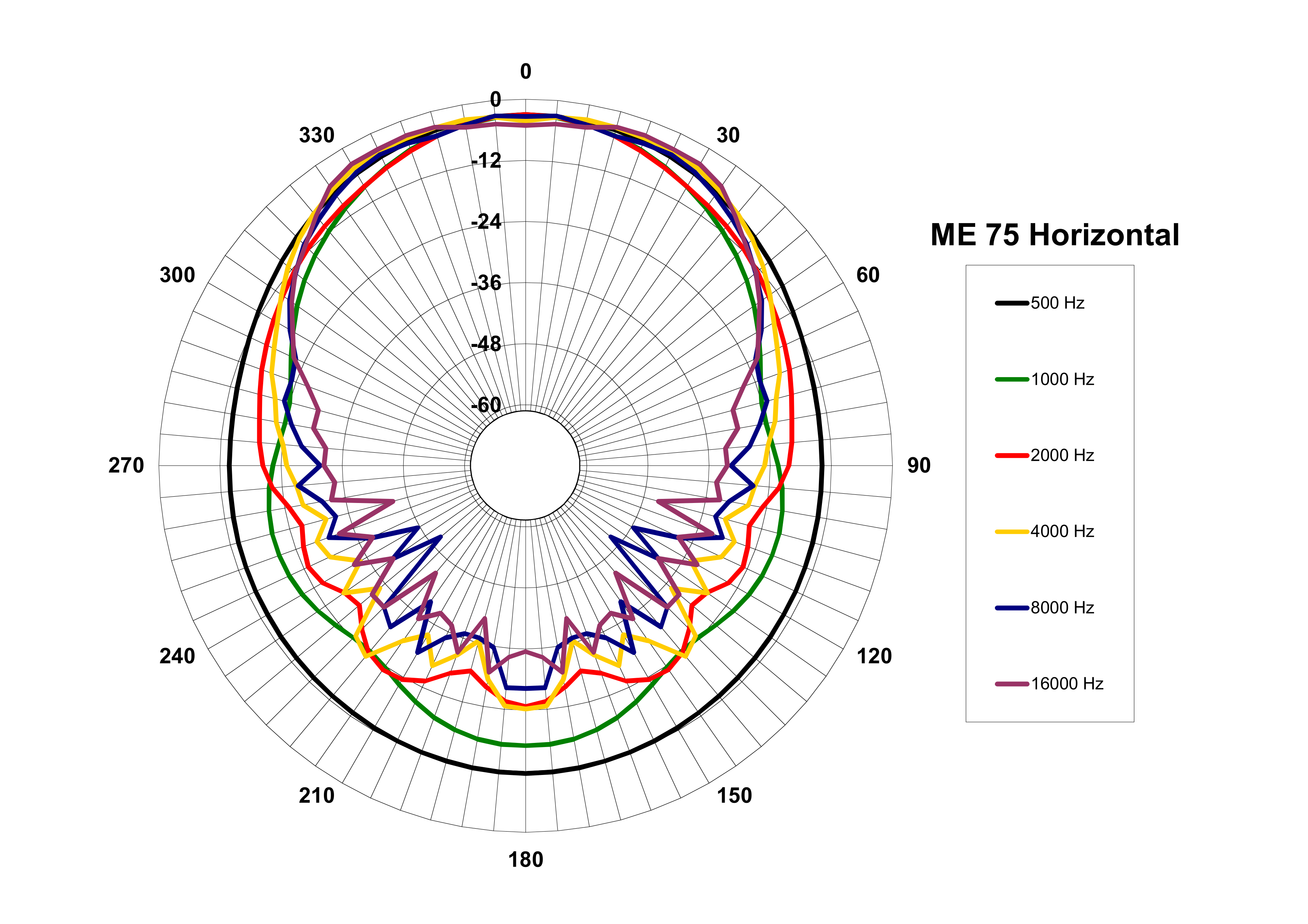

Nominal Coverage Horizontal
90 °

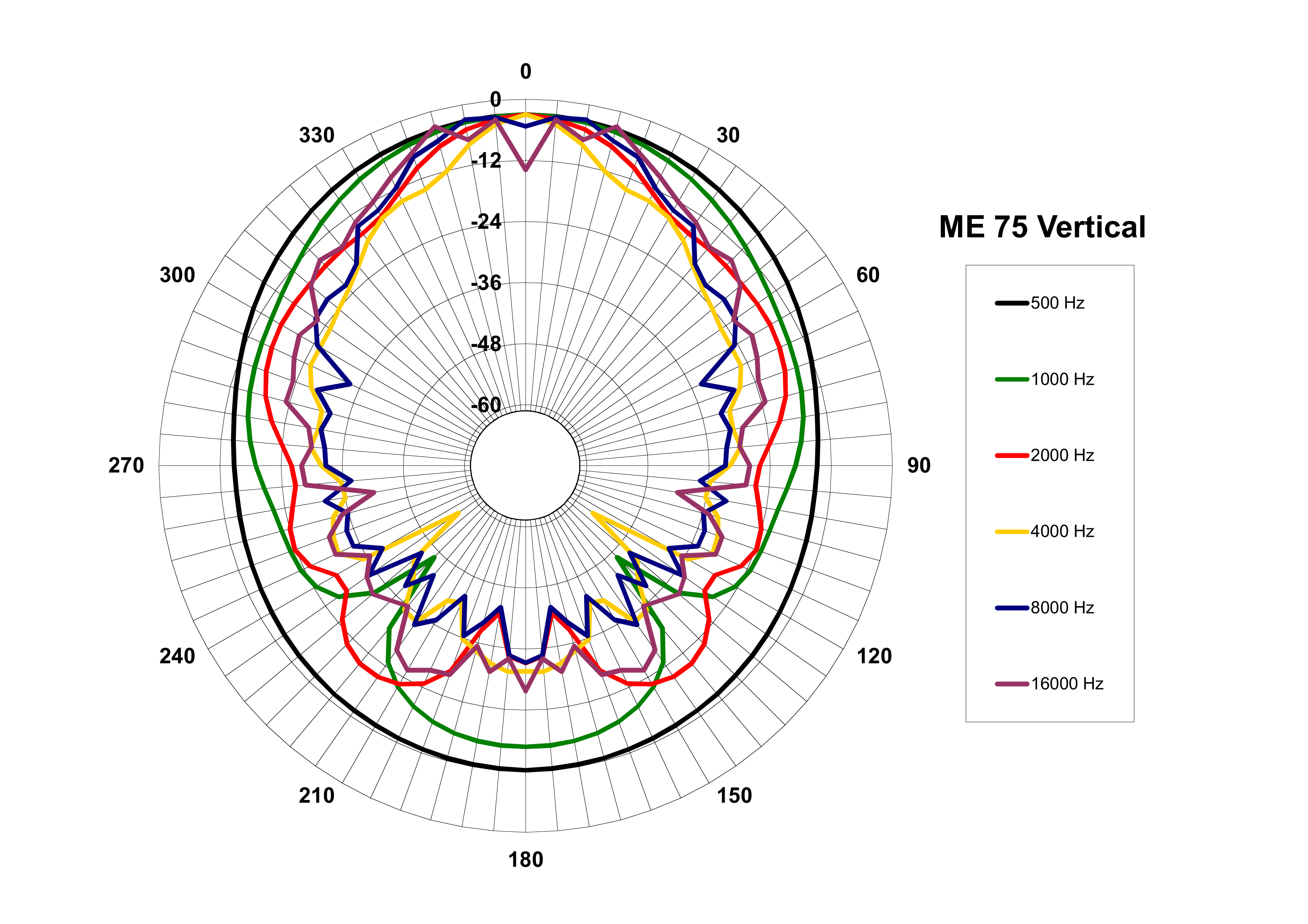

Nominal Coverage Vertical
40 °
Cutoff Frequency
0.5 kHz
Material
Cast Aluminium
Design
Constant Directivity
Dimensions
435x268x230 mm (17.2x10.5x9 in)
Mounting and Shipping Info
Other details
4x 6.5 mm (0.255 in) holes 90° on 102 mm (4 in) diameter
Net Weight
2.7 kg (5.9 lb)
Shipping Units
1 pcs
Shipping Weight
3.5 kg (7.7 lb)
Shipping Box
