Features

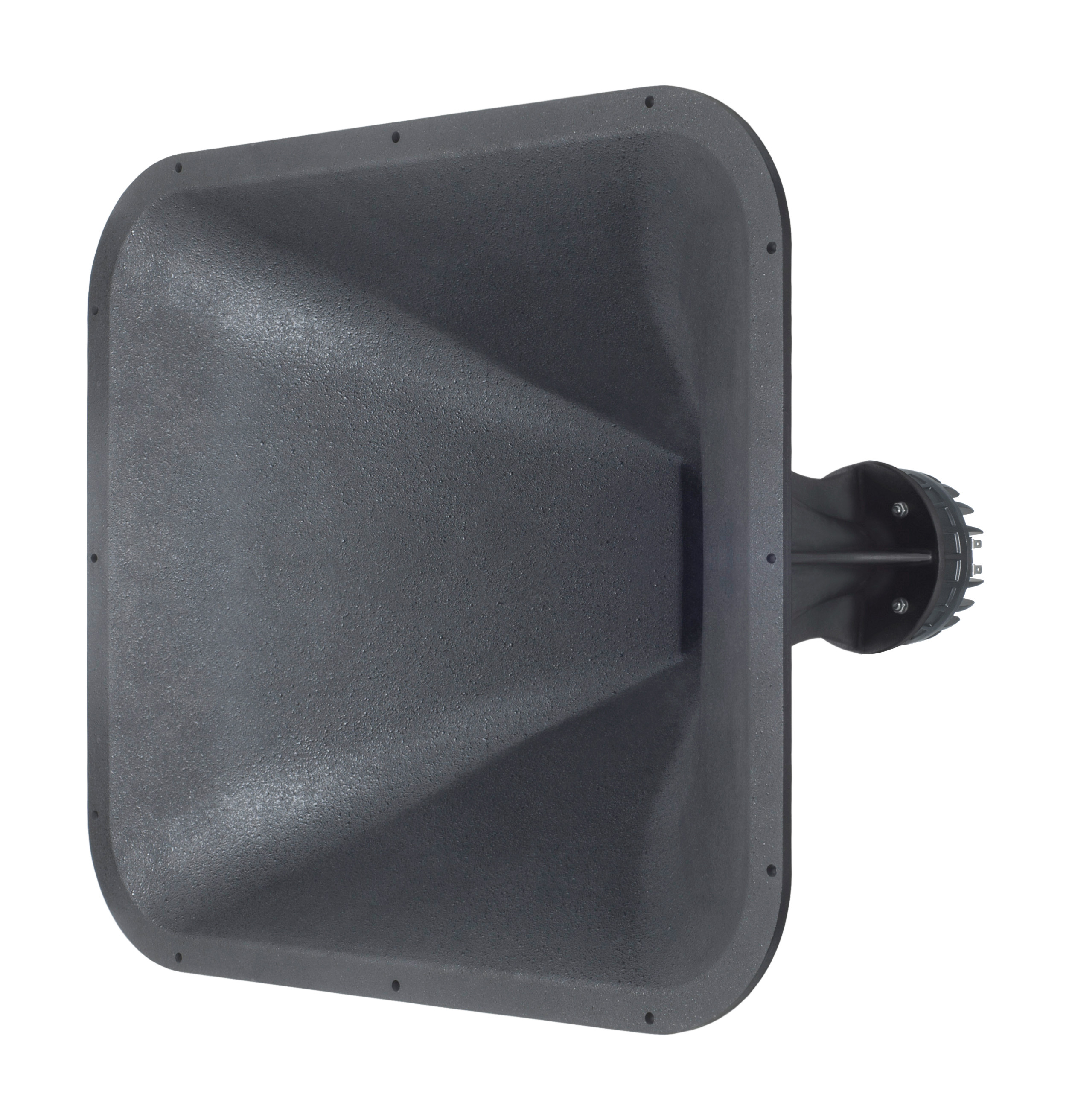

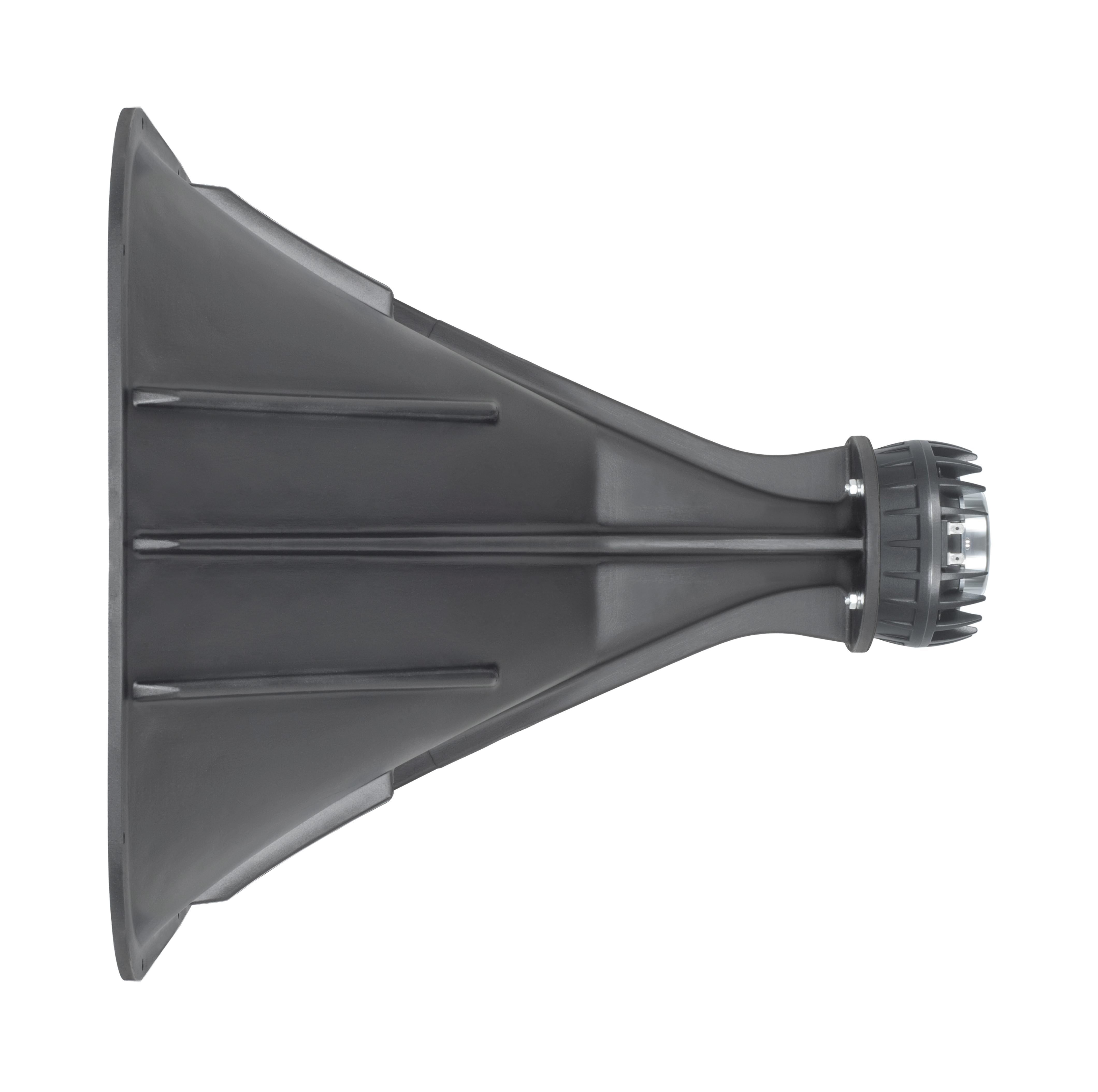

Constant Directivity horn with DCX354-16 driver
Time coherent coaxial ring radiator design
80x60° nominal coverage
111.2 dB sensitivity
180 W continuous program power capacity
Neodymium magnet assembly
revised 20/10/20
Specifications Horn unit

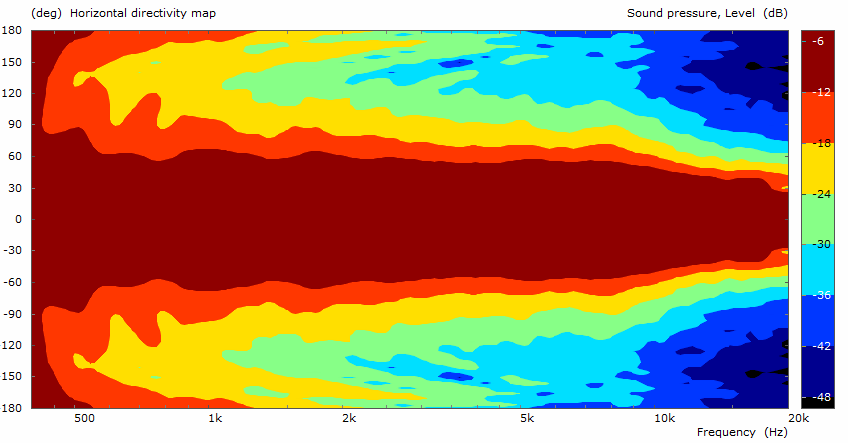

Nominal Coverage Horizontal
80 °

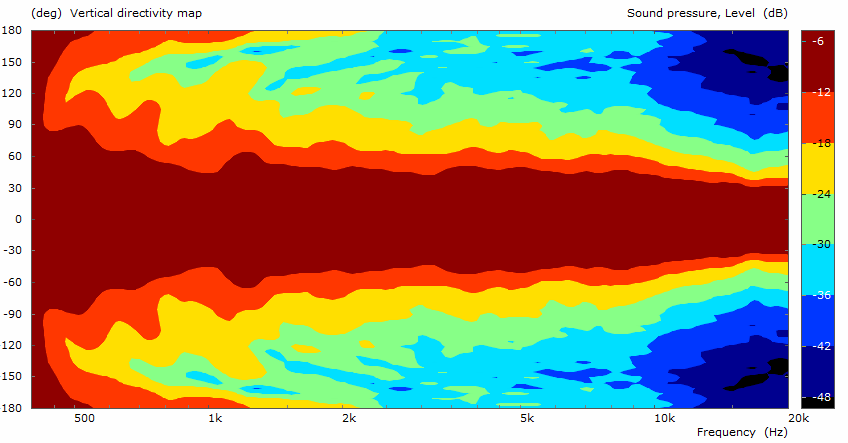

Nominal Coverage Vertical
60 °
Cutoff Frequency
0.3 kHz

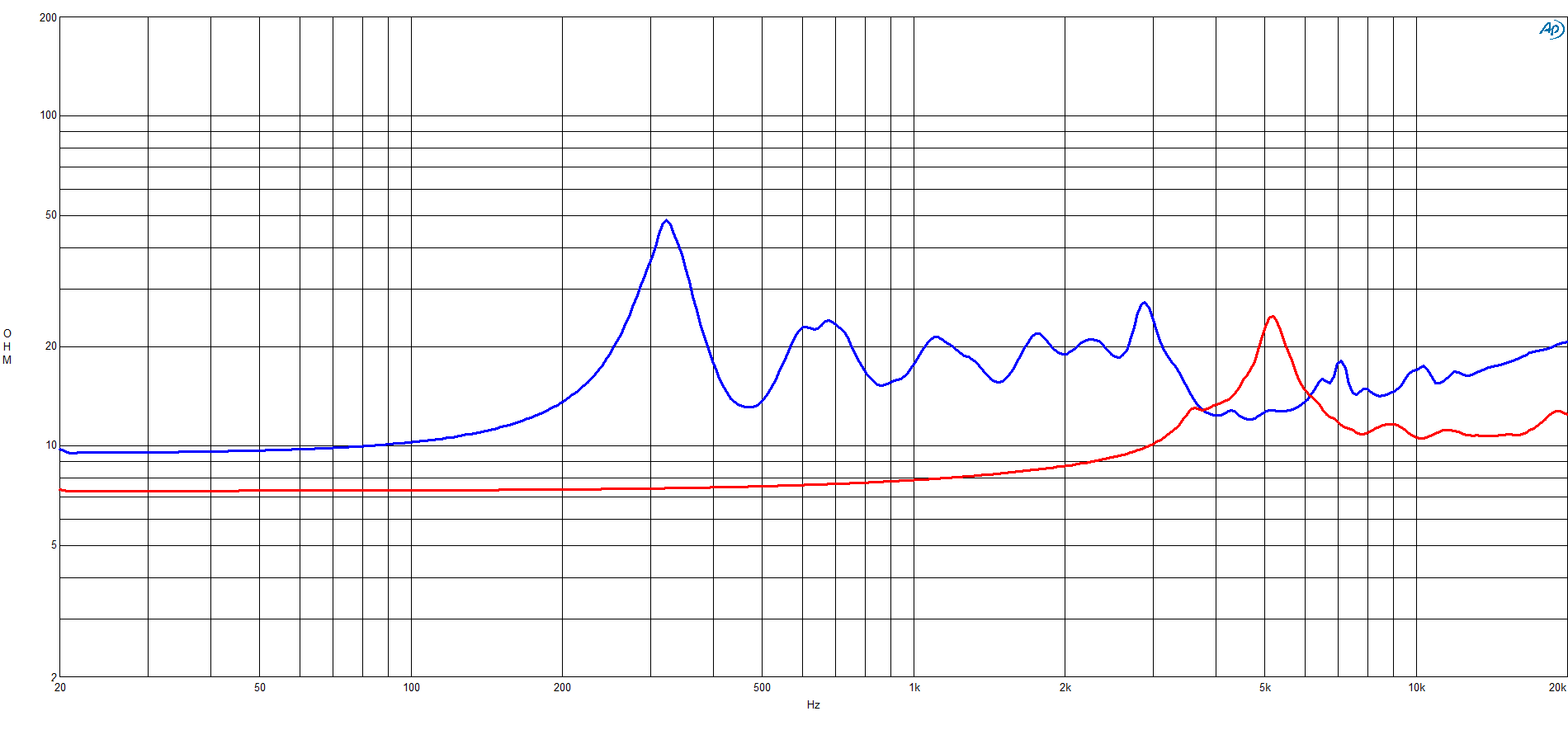

Nominal Impedance
16 Ω
Specifications HF unit
Minimum Impedance
10.5 Ω
Nominal Power Handling
50 W
Continuous Power Handling
100 W

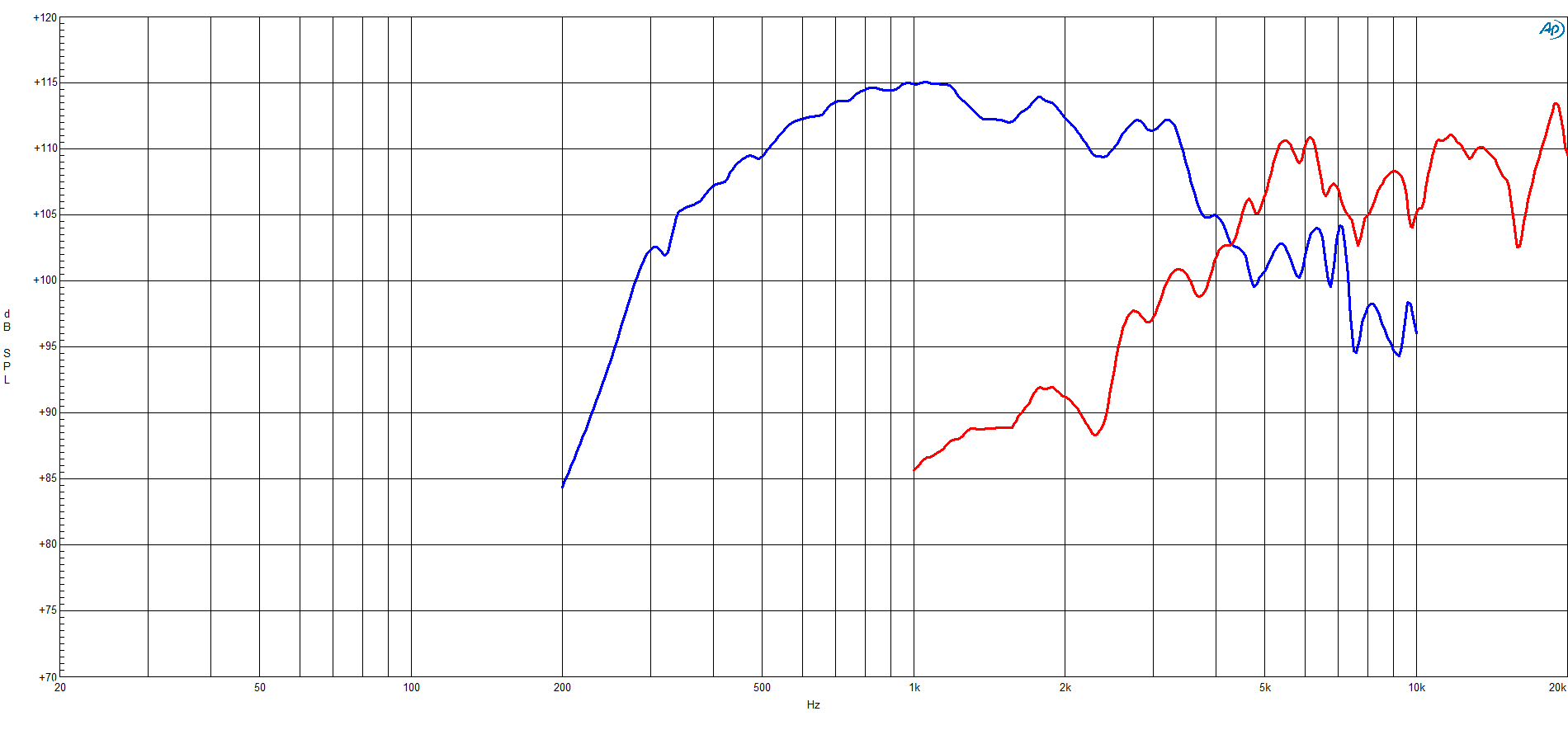

Sensitivity
108.5 dB
Frequency Range
5 kHz - 20 kHz
Recommended Crossover
4.5 kHz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Inductance
0.1 mH
Flux Density
1.96 T
Diaphragm Material
HT Polymer
Min Frequency Range
5 kHz
Max Frequency Range
20 kHz
Specifications MF unit
Minimum Impedance
12 Ω
Nominal Power Handling
90 W
Continuous Power Handling
180 W
Sensitivity
111.2 dB
Frequency Range
0.4 kHz - 6 kHz
Recommended Crossover
0.4 kHz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Aluminium
Inductance
0.26 mH
Flux Density
1.93 T
Diaphragm Material
HT Polymer
Min Frequency Range
0.4 kHz
Max Frequency Range
6 kHz
Mounting and Shipping Info
Exit Size
NaN in
Baffle Cutout Diameter
538 mm (21.18 in)
Net Weight
7.3 kg (16.09 lb)
Shipping Box
NaN in
Driver Diameter
130 mm (5.12 in)

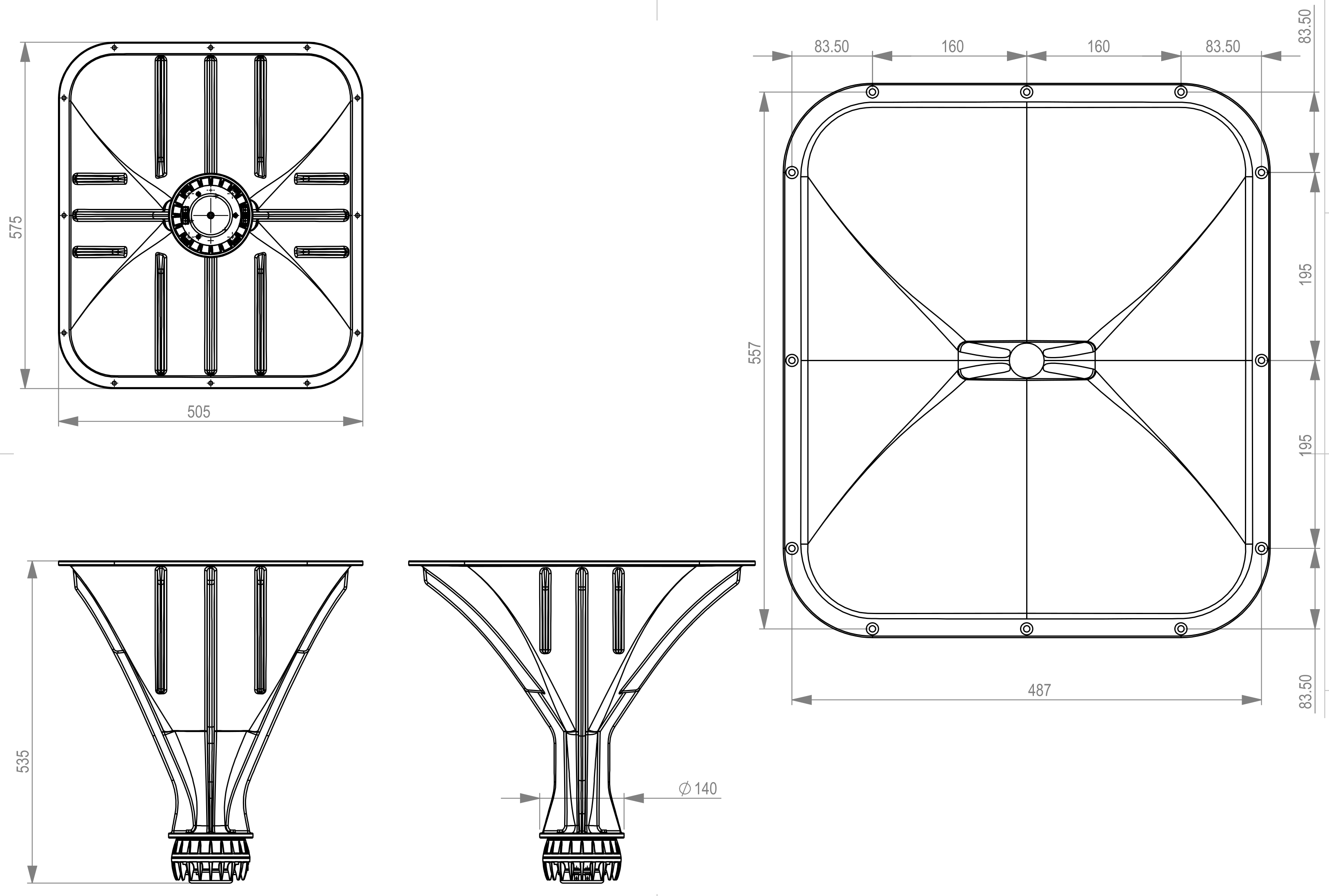

Dimensions
