Features
- 2000 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 40 - 1500 Hz response
- 96 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal Diameter320 mm (12.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance6.5 Ω
- Nominal Power Handling11000 W
- Continuous power handling22000 W
- Sensitivity (1W/1m)396.0 dB
- Frequency Range40 - 1500 Hz
- Voice Coil Diameter100 mm (4.0 in)
- Winding MaterialCopper
- Former MaterialGlass Fibre
- Winding Depth25.0 mm (1.0 in)
- Magnetic Gap Depth11.0 mm (0.43 in)
- Flux Density1.1 T
Design
- Surround ShapeTriple Roll
- Cone ShapeExponential
- Magnet MaterialNeodymium Inside Slug
- SpiderDouble Silicone
- Pole DesignT-Pole
- Woofer Cone TreatmentTWP Waterproof Both Sides
- Recommended Enclosure40.0 dm3 (1.41 ft3)
- Recommended Tuning50 Hz
Parameters4
- Resonance Frequency41 Hz
- Re5.1 Ω
- Qes0.24
- Qms3.9
- Qts0.22
- Vas51.0 dm3 (1.8 ft3)
- Sd531.0 cm2 (82.0 in2)
- η₀1.45 %
- Xmax± 10.0 mm
- Xvar± 10.0 mm
- Mms117.0 g
- Bl25.6 Txm
- Le1.9 mH
- EBP170 Hz

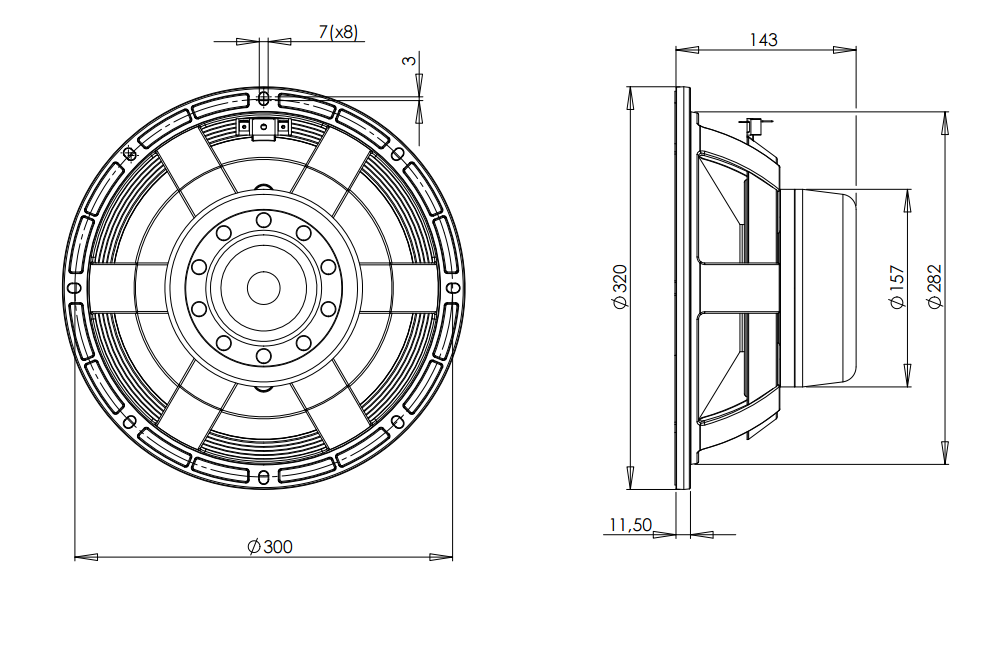

Mounting and Shipping Info
- Overall Diameter320 mm (12.6 in)
- Bolt Circle Diameter300 mm (11.8 in)
- Baffle Cutout Diameter280.0 mm (11.0 in)
- Depth143 mm (5.63 in)
- Flange and Gasket Thickness12 mm (0.47 in)
- Air Volume Occupied by Driver4.0 dm3 (0.14 ft3)
- Net Weight8.25 kg (18.19 lb)
- Shipping Units1
- Shipping Weight9.15 kg (20.17 lb)
- Shipping Box360x360x200 mm (14.17x14.17x7.87 in)
- 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
