Continuous power handling
Voice coil diameter
Magnet material
The FW88 series is perfectly balanced for the loudspeaker systems of today. A performance-oriented range of ferrite woofers with 3.5" (88mm) voice coil and high flux ferrite magnet, incorporated into a compact but powerful motor package. The results are unexpected low frequency output and midrange extension to meet with almost any driver for two way applications.  Do more, with less, with the FW88 series.





Features

  • 1400 W continuous program power capacity
  • 88 mm (3.5 in) aluminium voice coil
  • 49 - 3000 Hz response
  • 98,1 dB sensitivity
  • Ventilated voice coil gap for reduced power compression
  • Double silicone spider with optimized compliance
  • Aluminum demodulating ring allows a very low distortion figure

Specifications

  • Nominal Diameter380 mm (15.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance6.4 Ω
  • Nominal Power Handling1700 W
  • Continuous power handling21400 W
  • Sensitivity (1W/1m)398.1 dB
  • Frequency Range49 - 3000 Hz
  • Voice Coil Diameter88 mm (3.45 in)
  • Winding MaterialAluminium
  • Former MaterialGlass Fibre
  • Winding Depth21.5 mm (0.85 in)
  • Magnetic Gap Depth11.0 mm (0.43 in)
  • Flux Density1.04 T

Design

  • Surround ShapeTriple Roll
  • Cone ShapeExponential
  • Magnet MaterialFerrite Ring
  • SpiderDouble Silicone
  • Pole DesignT-Pole
  • Woofer Cone TreatmentWP Waterproof Front Side
  • Recommended Enclosure130.0 dm3 (4.59 ft3)
  • Recommended Tuning45 Hz

Parameters4

  • Resonance Frequency49 Hz
  • Re5.2 Ω
  • Qes0.45
  • Qms9.3
  • Qts0.43
  • Vas103.7 dm3 (3.66 ft3)
  • Sd855.0 cm2 (132.53 in2)
  • η₀2.63 %
  • Xmax± 8.0 mm
  • Xvar± 9.5 mm
  • Mms106.8 g
  • Bl19.27 Txm
  • Le0.81 mH
  • EBP108 Hz

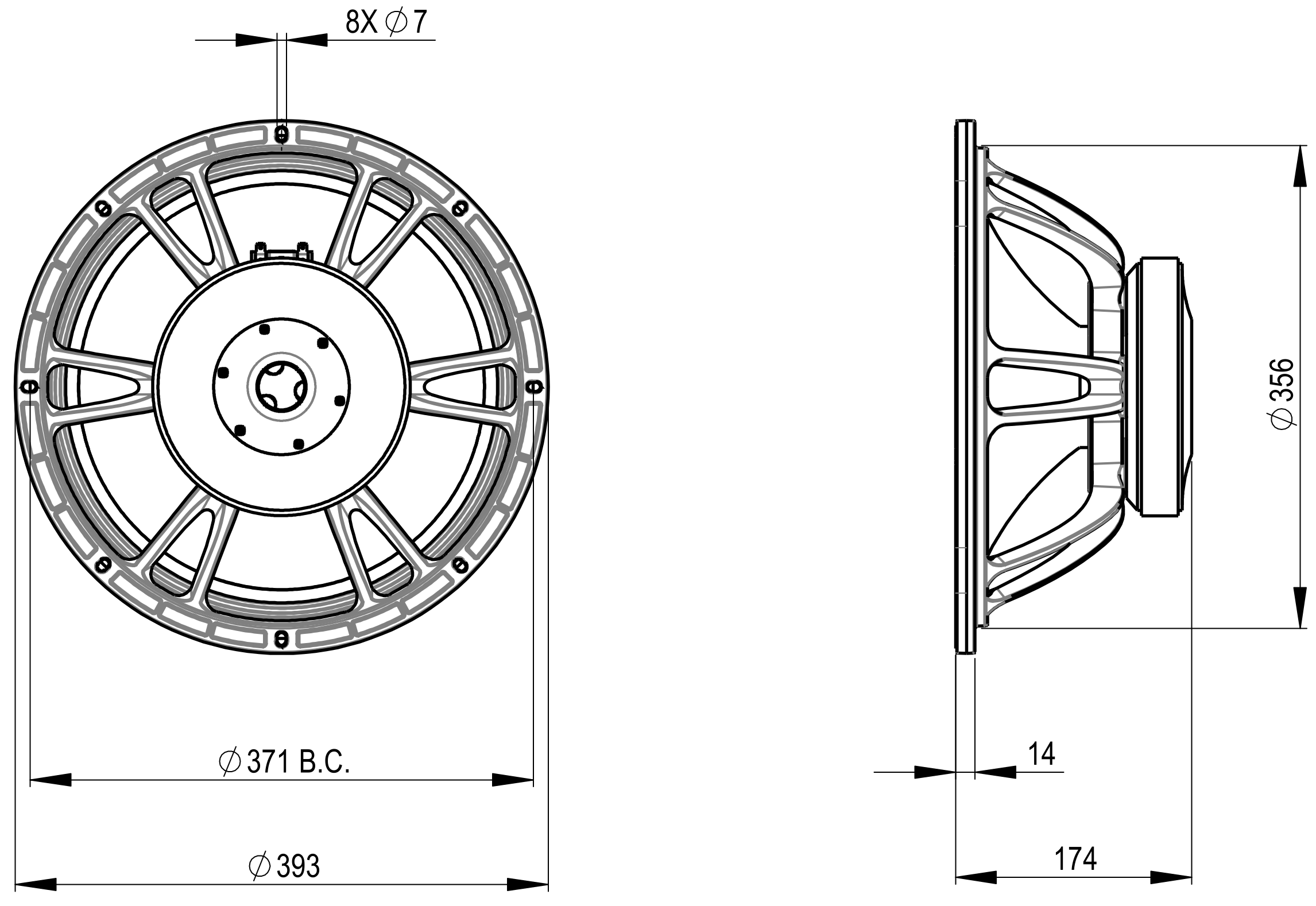

Mounting and Shipping Info

  • Overall Diameter393 mm (15.47 in)
  • Bolt Circle Diameter371 mm (14.61 in)
  • Baffle Cutout Diameter357.0 mm (14.06 in)
  • Depth174 mm (6.85 in)
  • Flange and Gasket Thickness14 mm (0.55 in)
  • Air Volume Occupied by Driver3.5 dm3 (0.12 ft3)
  • Net Weight9.0 kg (19.84 lb)
  • Shipping Units1
  • Shipping Weight10.3 kg (22.71 lb)
  • Shipping Box425x425x224 mm (16.73x16.73x8.82 in)
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
