Features
- 500 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil

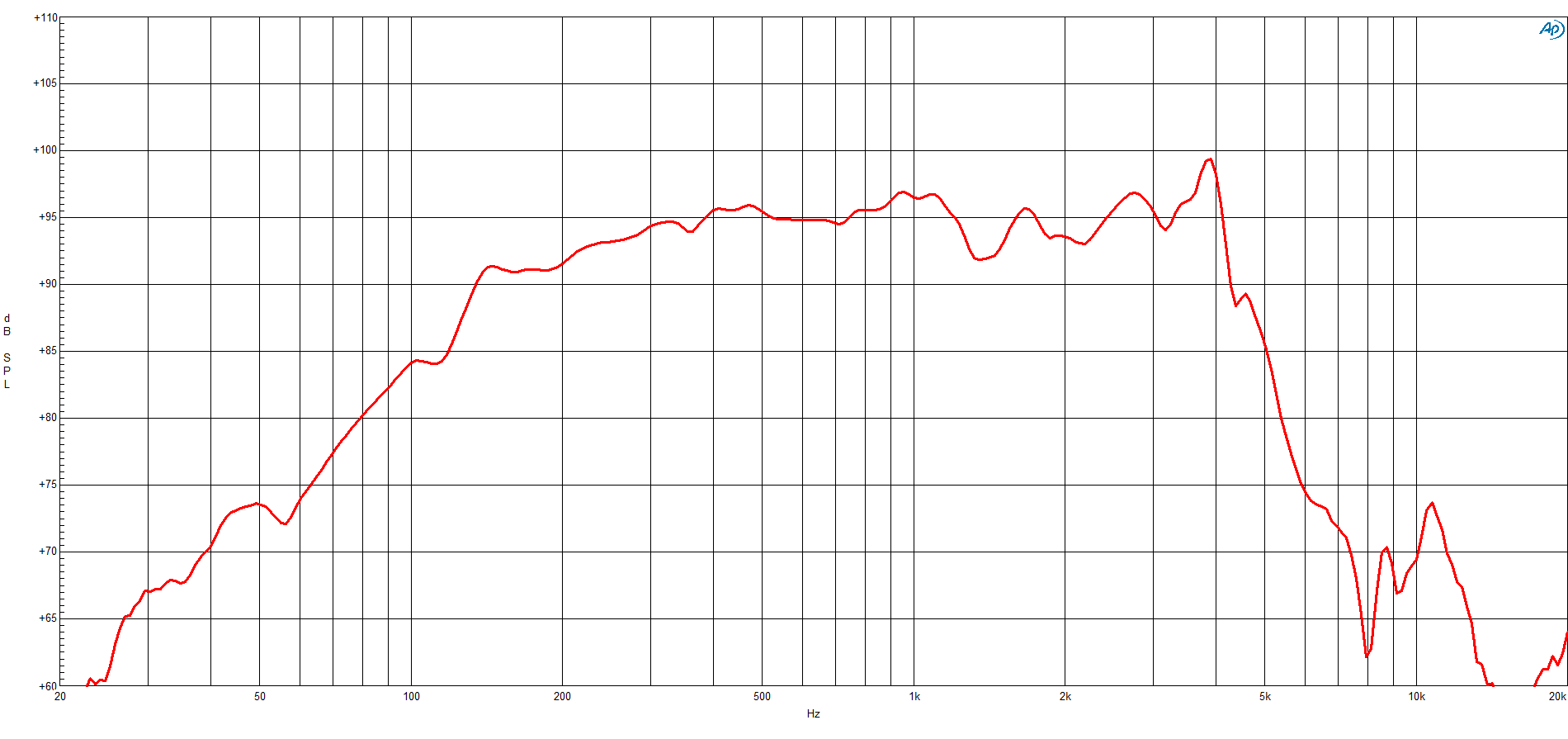

- 70 - 4000 Hz response
- 96 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
200 mm (8 in)

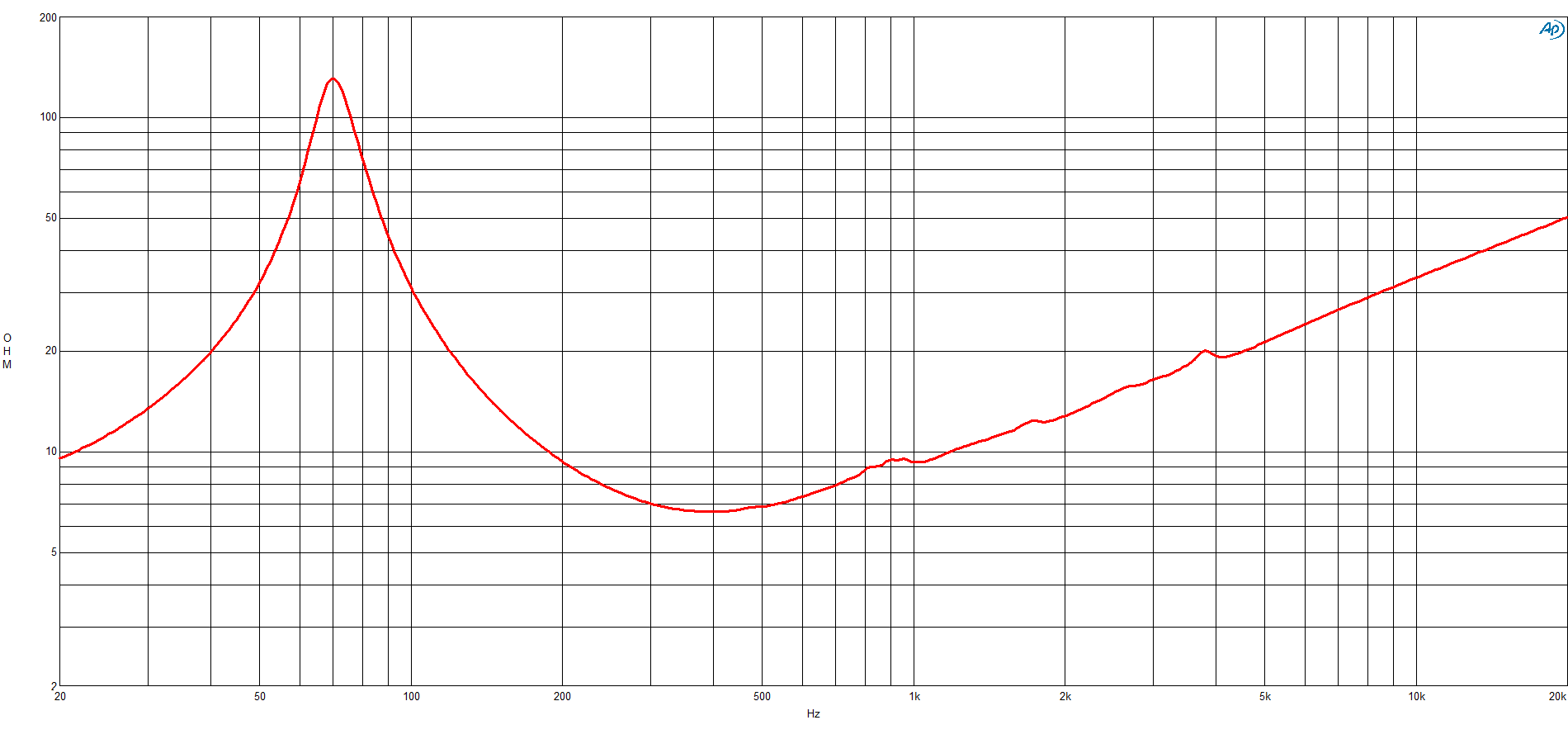

Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Nominal Power Handling
250 W
Continuous Power Handling
500 W
Sensitivity
96 dB
Frequency Range
70 Hz - 4000 Hz
Voice Coil Diameter
64 mm (2.5 in)
Winding Material
Aluminium
Former Material
SV Kraft
Winding Depth
14.5 mm (0.57 in)
Magnetic Gap Depth
8 mm (0.31 in)
Flux Density
1.2 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
71 Hz
Re
5.6 Ω
Qes
0.25
Qms
7.3
Qts
0.24
Vas
12.5 dm³ (0.44 ft³)
Sd
220 cm² (34.1 in²)
η0
1.8 %
Xmax
5.3 mm (0.21 in)
Xvar
6.6 mm
Mms
27 g
Bl
16.4 Tm
Le
1 mH
EBP
284 Hz
Design
Surround Shape
Double Roll
Cone Shape
Curvilinear
Magnet Material
Neodymium Inside Slug
Spider
Single
Pole Design
Straight Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Loading
Vented Box

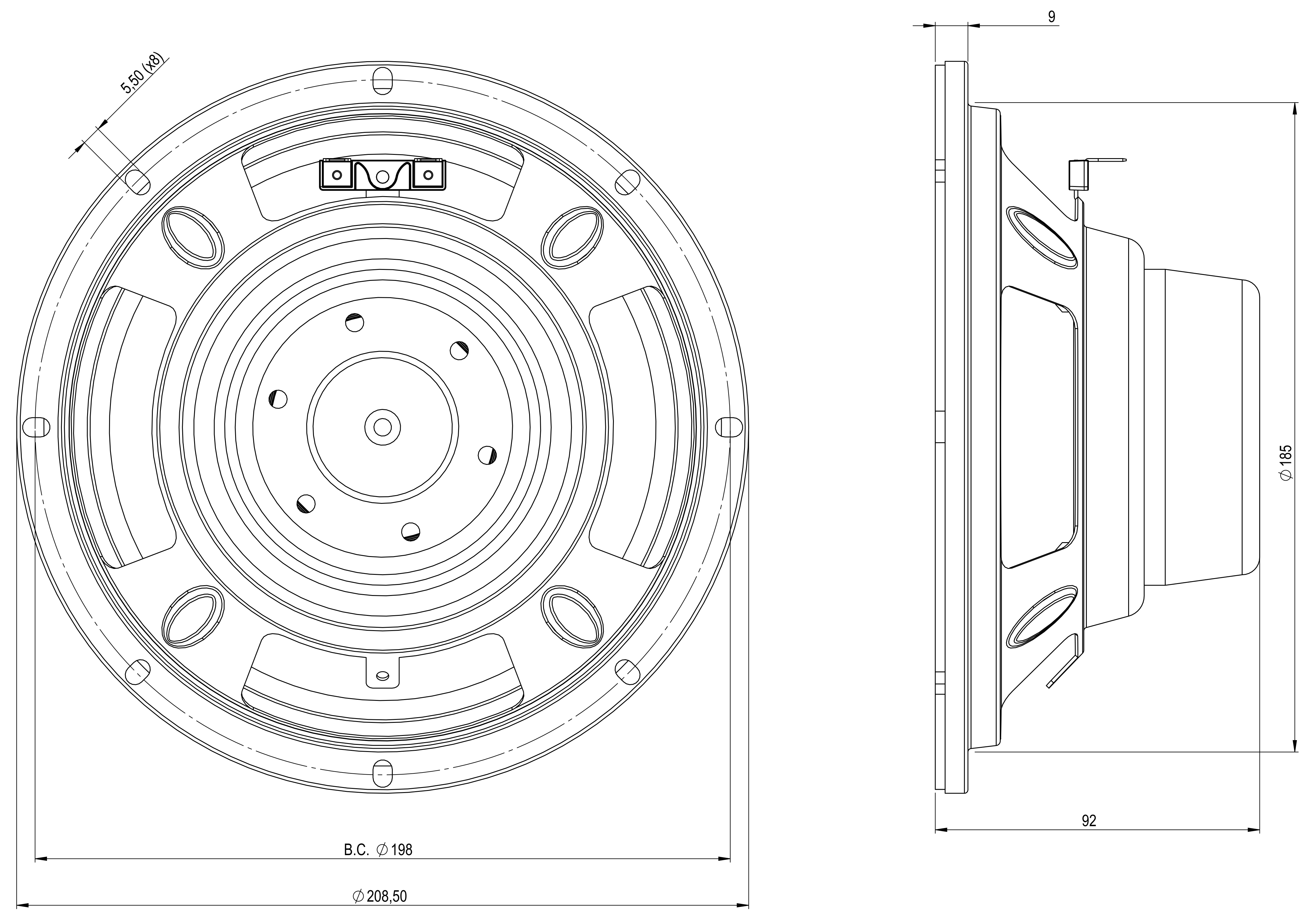

Mounting and Shipping Info
Overall Diameter
209 mm (8.23 in)
Bolt Circle Diameter
198 mm (7.8 in)
Baffle Cutout Diameter
185 mm (7.3 in)
Depth
95 mm (3.74 in)
Flange and Gasket Thickness
9 mm (0.35 in)
Air Volume Occupied by Driver
1.1 dm³ (0.04 ft³)
Net Weight
