Features
700 W continuous program power capacity
76 mm (3 in) aluminium voice coil
55 - 4000 Hz response
96 dB sensitivity
Shorting copper cap for extended HF response
Specifications
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.1 Ω
Nominal Power Handling
350 W
Continuous Power Handling
700 W
Sensitivity
96 dB
Frequency Range
55 Hz - 4000 Hz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
18 mm (0.71 in)
Magnetic Gap Depth
10 mm (0.4 in)
Flux Density
0.9 T
Woofer Cone Treatment
None
Parameters
Fs
54 Hz
Re
6 Ω
Qes
0.33
Qms
2.9
Qts
0.29
Vas
38 dm³ (1.3 ft³)
Sd
320 cm² (49.1 sq²)
η0
1.8 %
Xmax
5.5 mm
Xvar
5 mm
Mms
33 g
Bl
14.1 Tm
Le
1.2 mH
EBP
164 Hz
Design
Surround Shape
Double Roll
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
None
Recommended Enclosure
25 dm³ (0.88 ft³)
Recommended Tuning
65 Hz

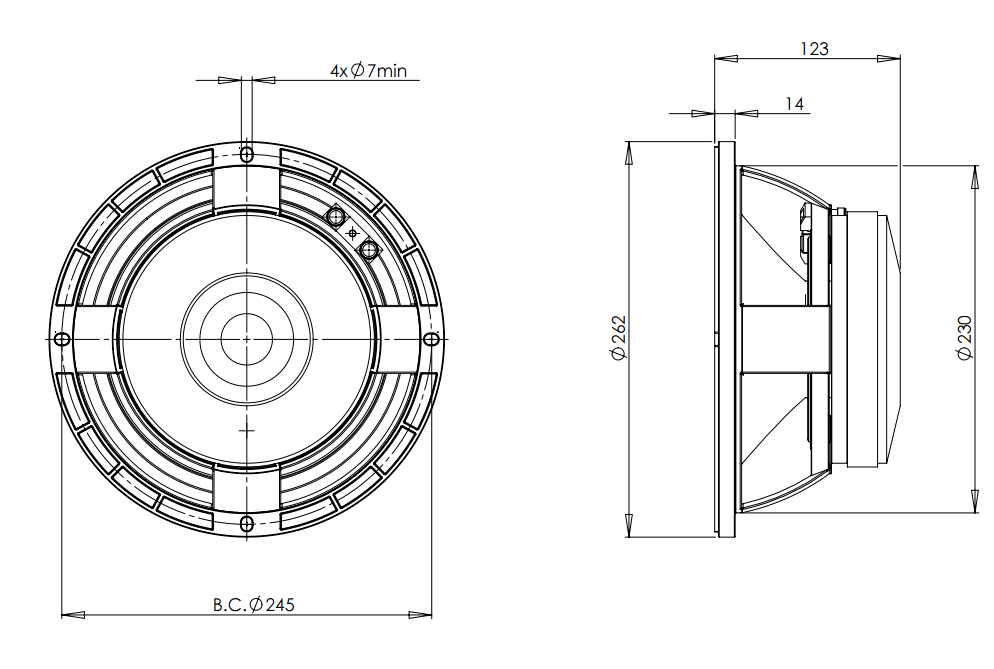

Mounting and Shipping Info
Overall Diameter
262 mm (10.3 in)
Bolt Circle Diameter
245 mm (9.6 in)
Baffle Cutout Diameter
230 mm (8.8 in)
Depth
123 mm (4.8 in)
Flange and Gasket Thickness
14 mm (0.55 in)
Net Weight
6.05 kg (13.34 lb)
Shipping Units
1 pcs
Shipping Weight
6.65 kg (14.66 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
lf Recone Kit
RCK010PS268
Cone
Gasket
Centering Shims
