Features
- Line Array optimized Waveguide with DE400 driver
- 140° max horizontal coverage
- 100 W continuous program power capacity
- 44 mm (1.7 in) aluminium voice coil
- Polyimide diaphragm
- 1200 - 18000 Hz response
- 108.5 dB sensitivity
- Compact Neodymium magnet assembly
Specifications
- Horizontal Coverage140 ° Max
- Active Radiating Factor92.5 %
- Recommended Crossover11.5 kHz
- Waveguide MaterialCast Aluminium
- Nominal Impedance8 Ω
- Minimum Impedance7.7 Ω
- Nominal Power Handling250 W
- Continuous Power Handling3100 W
- Sensitivity4108.5 dB
- Frequency Range51.2 - 18.0 kHz
- Voice Coil Diameter44 mm (1.7 in)
- Winding MaterialAluminium
- Diaphragm MaterialPolyimide
- Flux Density1.8 T
- Magnet MaterialNeodymium Ring
Mounting and Shipping Info
- Exit Size102x25 mm (4x1 in)
- Driver Diameter86 mm (3.3 in)

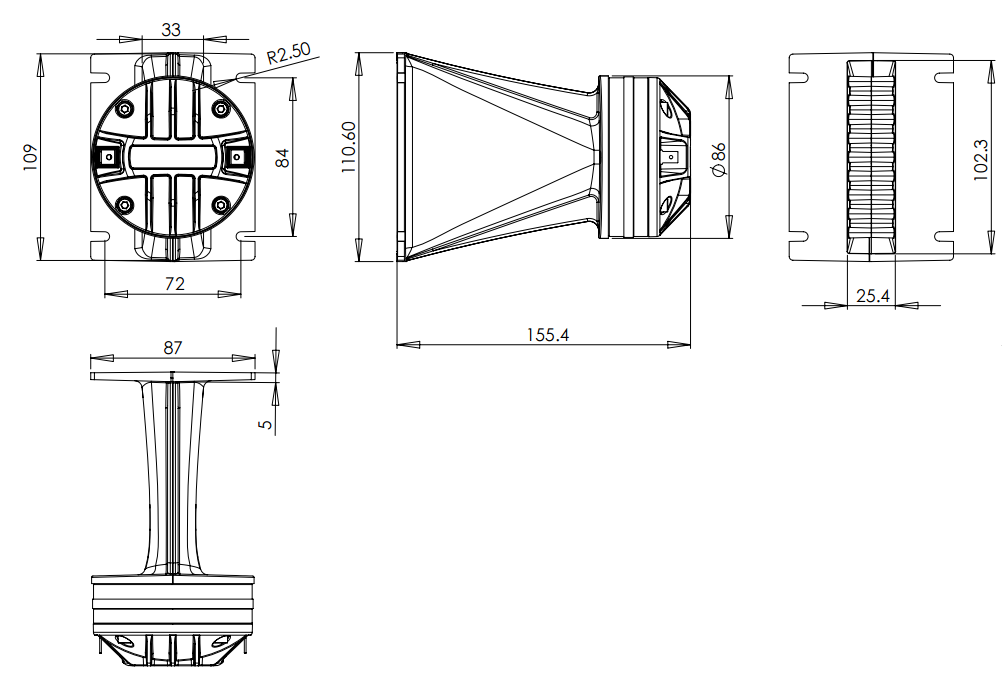

- Dimensions111x87x155 mm (4.4x3.5x6.1 in)
- Net Weight1.3 kg (2.9 lb)
- Shipping Units4
- Shipping Weight5.8 kg (12.79 lb)
- Shipping Box265x245x240 mm (10.43x9.65x9.45 in)
- 12 dB/oct. Or higher slope high-pass filter.
- 2 hour test made with continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
- Power on Continuous Program is defined as 3 dB greater then the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- Waveguide mounted on 90°x10° bell horn
