Features
500 W continuous program power capacity
70° nominal coverage
70 - 18000 Hz response
94 dB sensitivity
Single Neodymium magnet assembly
Aluminum demodulating ring for very low distortion
General
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Frequency Range
70 - 18000 Hz
Dispersion Angle
70 °
Specifications LF unit
Sensitivity
94 dB
Nominal Power Handling
250 W
Continuous Power Handling
500 W
Voice Coil Diameter
64 mm (2.5 in)
Winding Material
Copper
Flux Density
0.9 T
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Former Material
Glass Fibre
Winding Depth
14.5 mm (0.57 in)
Magnetic Gap Depth
8 mm (0.31 in)
Woofer Cone Treatment
WP Waterproof Front Side
Specifications HF unit
Sensitivity
105 dB
Nominal Power Handling
70 W
Continuous Power Handling
140 W
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Flux Density
1.6 T
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Minimum Impedance
8.2 Ω
Recommended Crossover
1.2 kHz
Inductance
0.14 mH
Diaphragm Material
HT Polymer
Magnet Material
Neodymium Ring
Design
Magnet Material
Neodymium Ring
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
70 Hz
Re
5.6 Ω
Qes
0.67
Qms
9.8
Qts
0.63
Vas
21 dm³ (0.74 ft³)
Sd
320 cm² (49.6 sq²)
η0
1.1 %
Xvar
5.5 mm
Mms
36 g
Bl
11.4 Tm
Le
0.91 mH
EBP
104 Hz

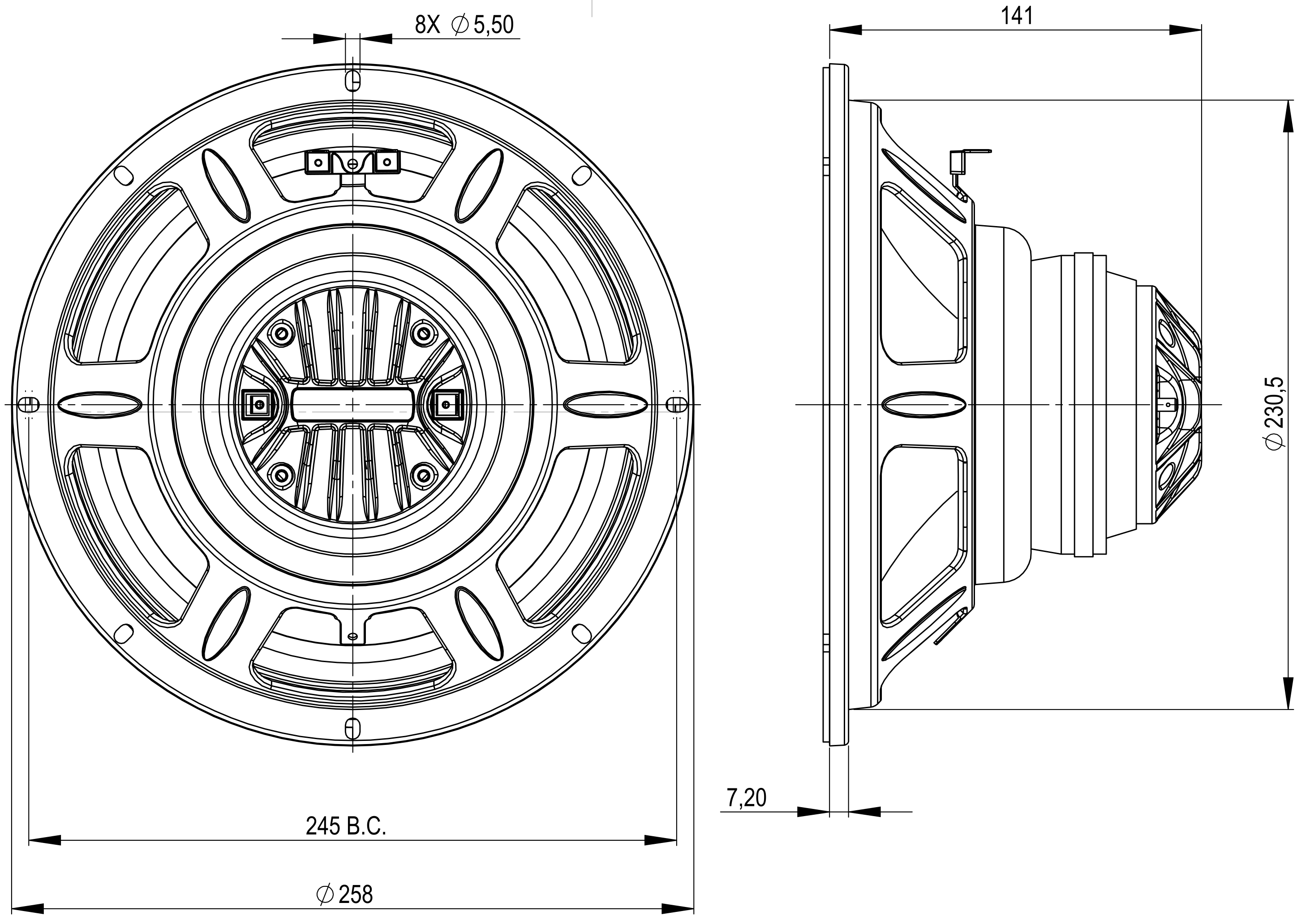

Mounting and Shipping Info
Overall Diameter
258 mm (10.16 in)
Bolt Circle Diameter
245 mm (9.65 in)
Baffle Cutout Diameter
231 mm (9.09 in)
Depth
141 mm (5.55 in)
Flange and Gasket Thickness
9 mm (0.37 in)
Net Weight
3.1 kg (6.83 lb)
Shipping Box
NaN in
Service Kit
hf Replacement Diaphragm
MMD5508
lf Recone Kit
RCK10CLX648
Cone
Basket
Dust Cap
Wooterprof Treatment
Centering Shims
