    14CXN88

    13.5 inches

    NEW
    New to the large format coaxial family is the 14CXN88. Like the 12CXN88 and 15CXN88, that were introduced in the spring of 2017, this new 14” addition features an 88mm voice coil woofer and 75mm diaphragm high frequency driver. This motor combination offers an excellent balance between HF and LF output. As a practical compromise between our 12-inch and 15-inch alternatives, the 14CXN88 coaxial (which is actually 13.5-inches in diameter) offers better low frequency output than a 12-inch coaxial, but more balanced midrange performance than a 15-inch coaxial.

    Features


    1000 W continuous program power capacity
    80° nominal coverage
    45 - 18000 Hz response
    99 dB sensitivity
    Single Neodymium magnet assembly
    Aluminium demodulating ring allows a very low distortion figure
    Double silicone spider with optimized compliance

    General

    Nominal Diameter

    343 mm (13.5 in)

    Nominal Impedance

    4 Ω

    Frequency Range

    45 Hz - 18000 Hz

    Dispersion Angle

    80 °

    Specifications LF unit

    Sensitivity

    99 dB

    Nominal Power Handling

    500 W

    Continuous Power Handling

    1000 W

    Voice Coil Diameter

    88 mm (3.5 in)

    Winding Material

    Aluminium

    Flux Density

    1.05 T

    Nominal Diameter

    343 mm (13.5 in)

    Nominal Impedance

    4 Ω

    Minimum Impedance

    4.3 Ω

    Former Material

    Glass Fibre

    Winding Depth

    22 mm (0.87 in)

    Magnetic Gap Depth

    10 mm (0.39 in)

    Woofer Cone Treatment

    WP Waterproof Front Side

    Specifications HF unit

    Sensitivity

    103 dB

    Nominal Power Handling

    80 W

    Continuous Power Handling

    160 W

    Voice Coil Diameter

    75 mm (3 in)

    Winding Material

    Aluminium

    Flux Density

    1.75 T

    Nominal Diameter

    343 mm (13.5 in)

    Nominal Impedance

    4 Ω

    Minimum Impedance

    8.8 Ω

    Recommended Crossover

    1.2 kHz

    Inductance

    0.14 mH

    Diaphragm Material

    Titanium

    Design

    Magnet Material

    Neodymium Ring

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    44 Hz

    Re

    3.2 Ω

    Qes

    0.26

    Qms

    15

    Qts

    0.25

    Vas

    116 dm³ (4.1 ft³)

    Sd

    707 cm² (109.59 sq²)

    η0

    3.8 %

    Xvar

    9 mm

    Mms

    78.5 g

    Bl

    16.6 Tm

    Le

    0.72 mH

    EBP

    169 Hz

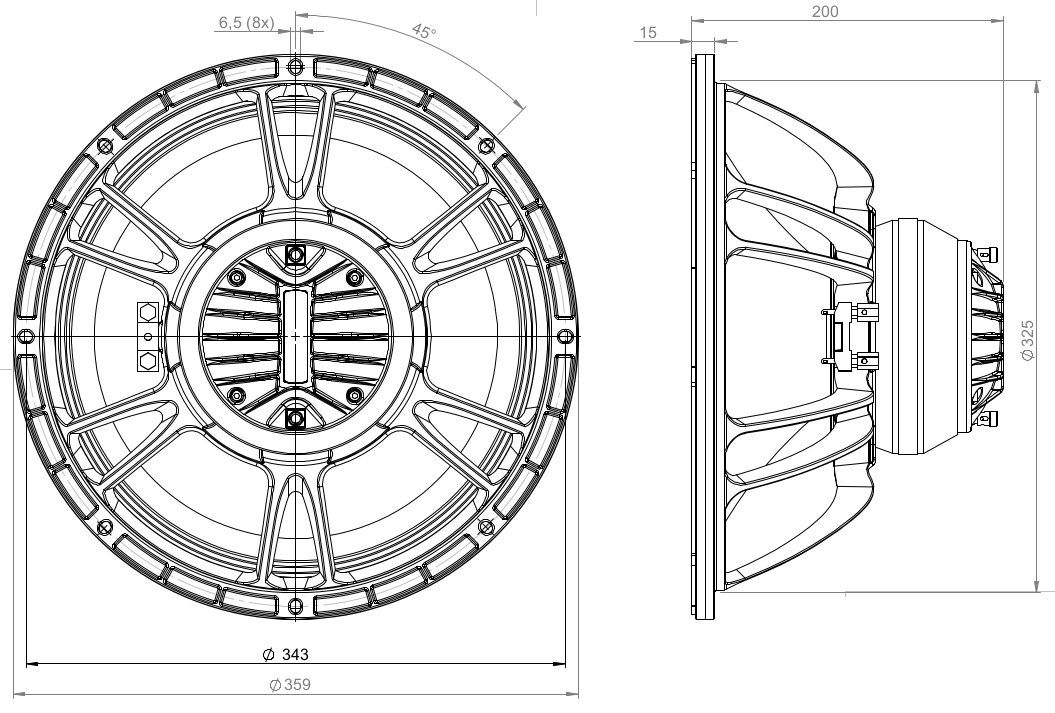

    Mounting and Shipping Info

    Overall Diameter

    359 mm (14.13 in)

    Bolt Circle Diameter

    343 mm (323 in)

    Baffle Cutout Diameter

    326 mm (12.83 in)

    Depth

    200 mm (7.87 in)

    Flange and Gasket Thickness

    15 mm (0.59 in)

    Net Weight

    7.4 kg (16.31 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    9 kg (19.84 lb)

    Shipping Box

    500x495x275 mm (19.69x19.49x10.83 in)

    Service Kit

    hf Replacement Diaphragm
    MMD3DTN8M
    lf Recone Kit
    RCK14CXN884
    • Cone

    • Gasket

    • Centering Shims
