14CXN88
NEW
New to the large format coaxial family is the 14CXN88.
Like
the 12CXN88 and 15CXN88, that were introduced in the spring of 2017, this new
14” addition features an 88mm voice coil woofer and 75mm diaphragm high
frequency driver. This motor combination offers an excellent balance between HF
and LF output. As a practical compromise between our 12-inch and 15-inch
alternatives, the 14CXN88 coaxial (which is actually 13.5-inches in diameter) offers
better low frequency output than a 12-inch coaxial, but more balanced midrange
performance than a 15-inch coaxial.
Features
1000 W continuous program power capacity
80° nominal coverage
45 - 18000 Hz response
99 dB sensitivity
Single Neodymium magnet assembly
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
General
Nominal Diameter
343 mm (13.5 in)
Nominal Impedance
8 Ω
Frequency Range
45 - 18000 Hz
Dispersion Angle
80 °
Specifications LF unit
Sensitivity
99 dB
Nominal Power Handling
500 W
Continuous Power Handling
1000 W
Voice Coil Diameter
88 mm (3.5 in)
Winding Material
Aluminium
Flux Density
1.05 T
Nominal Diameter
343 mm (13.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.8 Ω
Former Material
Glass Fibre
Winding Depth
22 mm (0.87 in)
Magnetic Gap Depth
11 mm (0.43 in)
Woofer Cone Treatment
WP Waterproof Front Side
Specifications HF unit
Sensitivity
106 dB
Nominal Power Handling
80 W
Continuous Power Handling
160 W
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Flux Density
1.75 T
Nominal Diameter
343 mm (13.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
8.8 Ω
Recommended Crossover
1.2 kHz
Inductance
0.14 mH
Diaphragm Material
Titanium
Magnet Material
Neodymium Ring
Design
Magnet Material
Neodymium Ring
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
46 Hz
Re
4.7 Ω
Qes
0.27
Qms
13
Qts
0.26
Vas
100 dm³ (3.53 ft³)
Sd
707 cm² (109.59 sq²)
η0
3.6 %
Xvar
9 mm
Mms
83 g
Bl
20.7 Tm
Le
0.95 mH
EBP
170 Hz

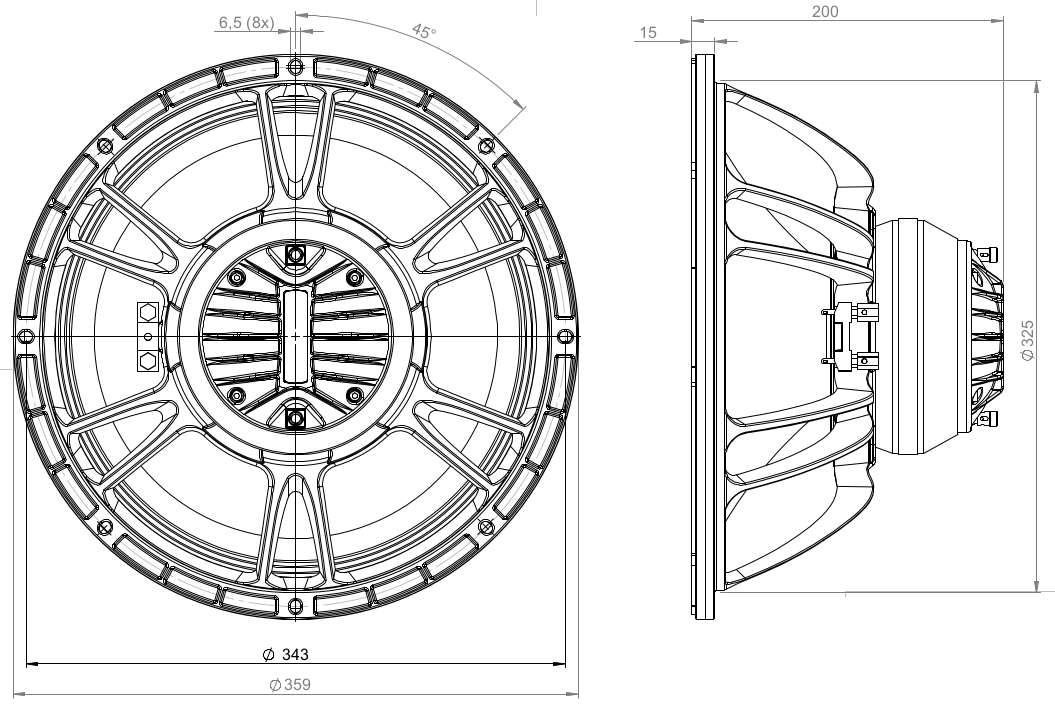

Mounting and Shipping Info
Overall Diameter
359 mm (14.13 in)
Bolt Circle Diameter
343 mm (323 in)
Baffle Cutout Diameter
326 mm (12.83 in)
Depth
200 mm (7.87 in)
Flange and Gasket Thickness
15 mm (0.59 in)
Net Weight
7.4 kg (16.31 lb)
Shipping Units
1 pcs
Shipping Weight
9 kg (19.84 lb)
Shipping Box
500x495x275 mm (19.69x19.49x10.83 in)
Service Kit
hf Replacement Diaphragm
MMD3DTN8M
lf Recone Kit
RCK14CXN888
Cone
Basket
Centering Shims
