Features
800 W continuous program power capacity
80° nominal coverage
45 - 18000 Hz response
100 dB sensitivity
Single Neodymium magnet assembly
Aluminium demodulating ring for very low distortion
General
Nominal Diameter
343 mm (13.5 in)
Nominal Impedance
8 Ω
Frequency Range
45 - 18000 Hz
Dispersion Angle
80 °
Specifications LF unit
Sensitivity
100 dB
Nominal Power Handling
400 W
Continuous Power Handling
800 W
Voice Coil Diameter
76 mm (3 in)
Winding Material
Copper
Flux Density
1.05 T
Nominal Diameter
343 mm (13.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Former Material
Glass Fibre
Winding Depth
16.5 mm (0.65 in)
Magnetic Gap Depth
9 mm (0.35 in)
Woofer Cone Treatment
WP Waterproof Front Side
Specifications HF unit
Sensitivity
105 dB
Nominal Power Handling
80 W
Continuous Power Handling
160 W
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Flux Density
1.8 T
Nominal Diameter
343 mm (13.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
8.2 Ω
Recommended Crossover
1.2 kHz
Inductance
0.14 mH
Diaphragm Material
Polyester/Titanium
Magnet Material
Neodymium Ring
Design
Magnet Material
Neodymium Ring
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
45 Hz
Re
5.2 Ω
Qes
0.29
Qms
8.5
Qts
0.28
Vas
131 dm³ (4.63 ft³)
Sd
707 cm² (109.59 sq²)
η0
4 %
Xvar
8 mm
Mms
67 g
Bl
18.4 Tm
Le
1 mH
EBP
155 Hz

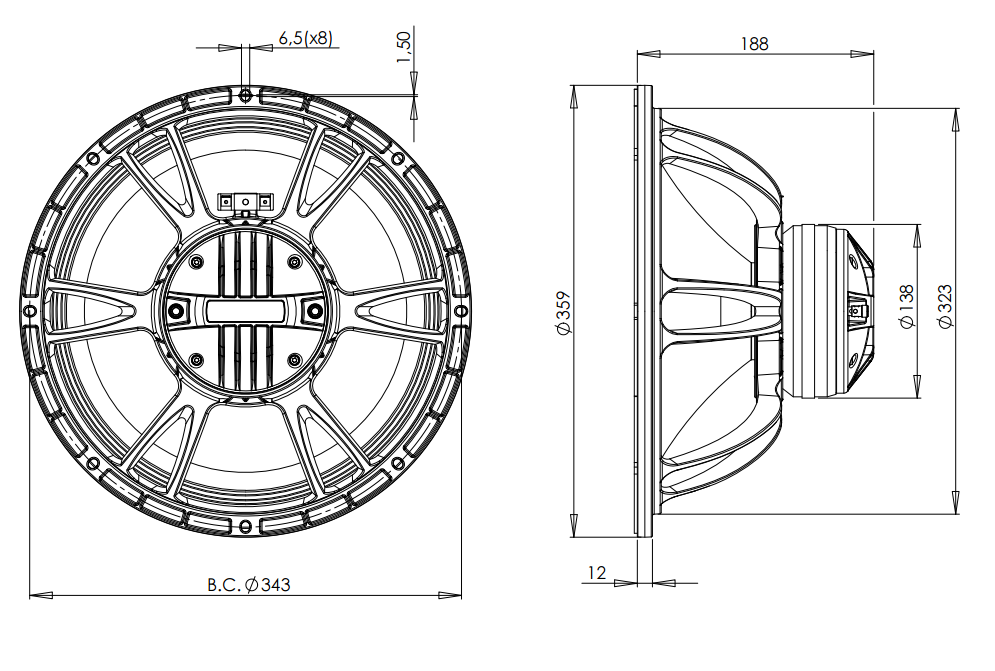

Mounting and Shipping Info
Overall Diameter
359 mm (14.13 in)
Bolt Circle Diameter
343 mm (13.5 in)
Baffle Cutout Diameter
323 mm (12.72 in)
Depth
188 mm (7.4 in)
Flange and Gasket Thickness
12 mm (0.47 in)
Net Weight
5.6 kg (12.35 lb)
Shipping Units
1 pcs
Shipping Weight
6.9 kg (15.21 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
hf Replacement Diaphragm
MMD9028M
lf Recone Kit
RCK14CXN768
Cone
Basket
Centering Shims
