15CXN88
15 inches
NEW
Continuing our never-ending quest for higher output, we now offer our popular single neodymium magnet coaxials with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 15CXN88, with 3.5” LF and 3” HF voice coils. Power handling has increased to 1000W, while also improving nearly every other parameter (including Xvar) relative to our established 3” coil CXN76 series.
Features
1000 W continuous program power capacity
80° nominal coverage
45 - 18000 Hz response
100 dB sensitivity
Single Neodymium magnet assembly
Aluminium demodulating ring allows a very low distortion figure
Double spider with optimized compliance
General
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Frequency Range
45 - 18000 Hz
Dispersion Angle
80 °
Specifications LF unit
Sensitivity
100 dB
Nominal Power Handling
500 W
Continuous Power Handling
1000 W
Voice Coil Diameter
88 mm (3.5 in)
Winding Material
Aluminium
Flux Density
1.2 T
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
5.8 Ω
Former Material
Glass Fibre
Winding Depth
22 mm (0.87 in)
Magnetic Gap Depth
11 mm (0.43 in)
Woofer Cone Treatment
WP Waterproof Front Side
Specifications HF unit
Sensitivity
106 dB
Nominal Power Handling
80 W
Continuous Power Handling
160 W
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Flux Density
1.75 T
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
8.5 Ω
Recommended Crossover
1.2 kHz
Inductance
0.14 mH
Diaphragm Material
Titanium
Magnet Material
Neodymium Ring
Design
Magnet Material
Neodymium Ring
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
47 Hz
Re
4.6 Ω
Qes
0.31
Qms
12.6
Qts
0.3
Vas
124 dm³ (4.38 ft³)
Sd
855 cm² (132.53 sq²)
η0
4 %
Xvar
9.5 mm
Mms
94 g
Bl
20.15 Tm
Le
0.95 mH
EBP
152 Hz

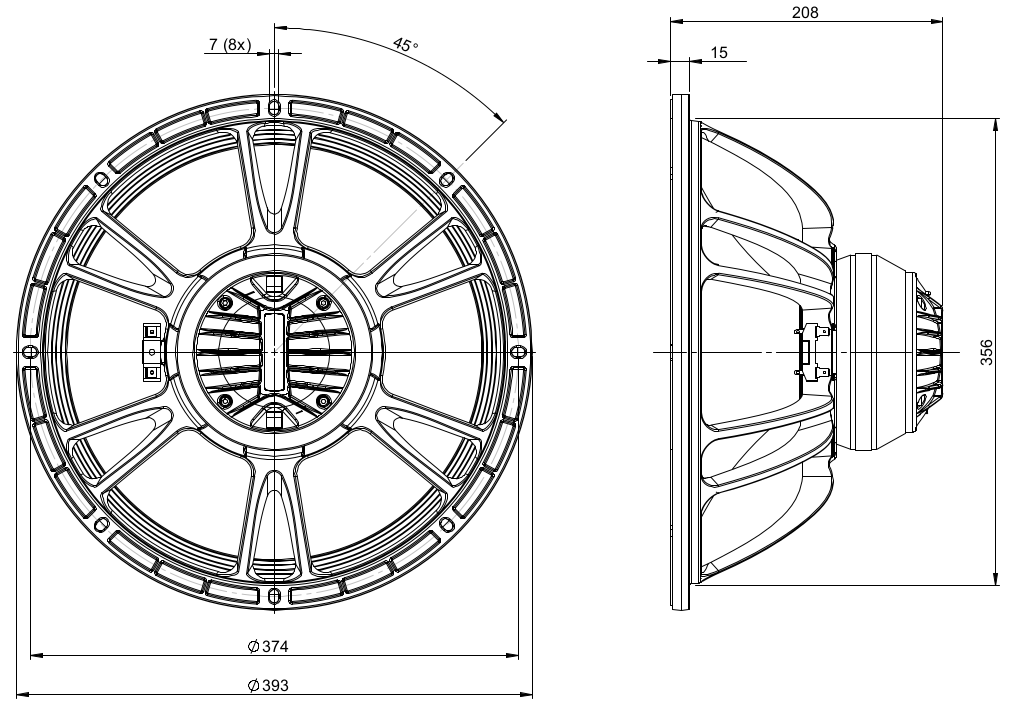

Mounting and Shipping Info
Overall Diameter
393 mm (15.47 in)
Bolt Circle Diameter
374 mm (14.72 in)
Baffle Cutout Diameter
356 mm (14.02 in)
Depth
208 mm (8.19 in)
Flange and Gasket Thickness
15 mm (0.59 in)
Net Weight
7.65 kg (16.87 lb)
Shipping Units
1 pcs
Shipping Weight
9.25 kg (20.39 lb)
Shipping Box
500x495x275 mm (19.69x19.49x10.83 in)
Service Kit
hf Replacement Diaphragm
MMD3DTN8M
lf Recone Kit
RCK15CXN888
Cone
Basket
Centering Shims
