4CXN36
NEW
Features
200 W continuous program power capacity
70° nominal coverage
110 - 18000 Hz response
86 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Aluminium demodulating ring allows a very low distortion figure
General
Nominal Diameter
100 mm (4 in)
Nominal Impedance
16 Ω
Frequency Range
110 - 18000 Hz
Dispersion Angle
70 °
Specifications LF unit
Sensitivity
86 dB
Nominal Power Handling
100 W
Continuous Power Handling
200 W
Voice Coil Diameter
34 mm (1.34 in)
Winding Material
Copper
Flux Density
0.74 T
Nominal Diameter
100 mm (4 in)
Nominal Impedance
16 Ω
Minimum Impedance
12 Ω
Former Material
Glass Fibre
Winding Depth
11.2 mm (0.44 in)
Magnetic Gap Depth
6 mm (0.24 in)
Woofer Cone Treatment
WP Waterproof Front Side
Specifications HF unit
Sensitivity
102 dB
Nominal Power Handling
25 W
Continuous Power Handling
50 W
Voice Coil Diameter
36 mm (1.4 in)
Winding Material
Aluminium
Flux Density
1.65 T
Nominal Diameter
100 mm (4 in)
Nominal Impedance
16 Ω
Minimum Impedance
10.2 Ω
Recommended Crossover
2 kHz
Inductance
0.14 mH
Diaphragm Material
HT Polymer
Magnet Material
Neodymium Ring
Design
Magnet Material
Neodymium Ring
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
110 Hz
Re
10.9 Ω
Qes
1.05
Qms
12.1
Qts
0.97
Vas
1.6 dm³ (0.06 ft³)
Sd
56 cm² (8.68 sq²)
η0
0.19 %
Xvar
5 mm
Mms
5.8 g
Bl
6.43 Tm
Le
1.26 mH
EBP
105 Hz

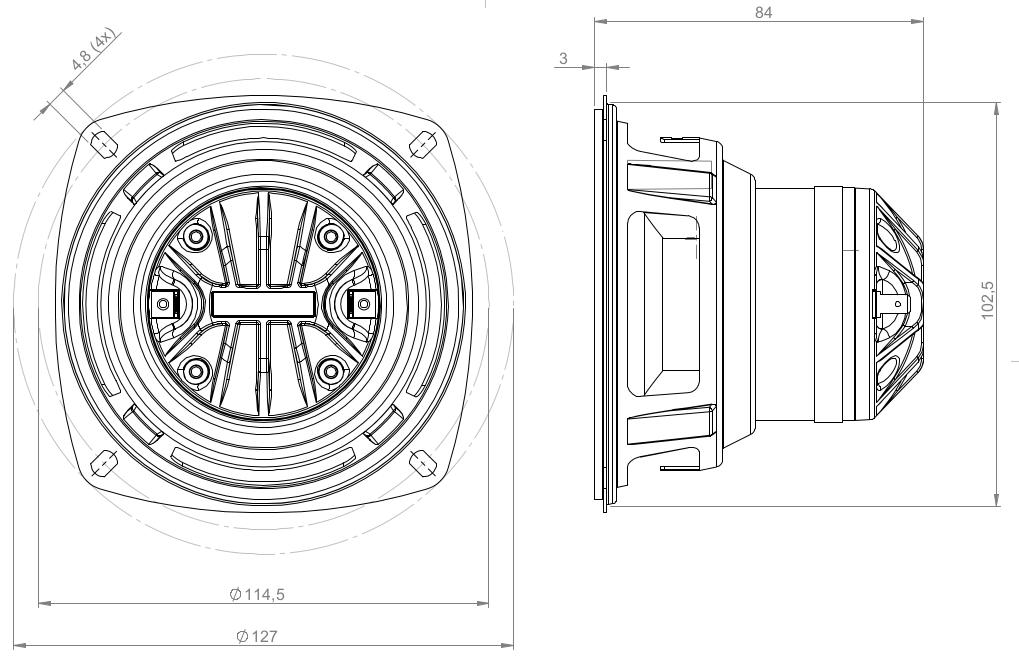

Mounting and Shipping Info
Overall Diameter
127 mm (5 in)
Bolt Circle Diameter
114 mm (4.51 in)
Baffle Cutout Diameter
103 mm (4.06 in)
Depth
84 mm (3.31 in)
Flange and Gasket Thickness
3 mm (0.12 in)
Net Weight
0.55 kg (1.21 lb)
Shipping Units
1 pcs
Shipping Weight
0.76 kg (1.68 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
hf Replacement Diaphragm
MMDDE11016
lf Recone Kit
RCK004CXN1616
Cone
Basket
Dust Cap
Wooterprof Treatment
Centering Shims
