5CXN36
5 inches
Unique to B&C, a complete lineup of high sensitivity and power handling 4”, 5" and 6.5" frame transducers. These high technology products are made with our famously critical quality control, allowing new compact loudspeaker designs with appropriately scaled performance. Combined with a 1.4” dome compression driver, our 5CXN36 coaxial is one of the most compact and cost effective full range transducers that we have ever built, offering 94 - 18000Hz frequency response and a 70° conical coverage pattern.
Features
8 ohm LF unit, 16 ohm HF unit
200 W continuous program power capacity
70° nominal coverage
94 - 18000 Hz response
89 dB sensitivity
Aluminium demodulating ring for very low distortion
General
Nominal Diameter
127 mm (5 in)
Nominal Impedance
8 Ω
Frequency Range
94 Hz - 18000 Hz
Dispersion Angle
70 °
Specifications LF unit
Sensitivity
89 dB
Nominal Power Handling
100 W
Continuous Power Handling
200 W
Voice Coil Diameter
34 mm (1.3 in)
Winding Material
Copper
Flux Density
0.74 T
Nominal Diameter
127 mm (5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Former Material
Glass Fibre
Winding Depth
11 mm (0.43 in)
Magnetic Gap Depth
6 mm (0.24 in)
Woofer Cone Treatment
WP Waterproof Front Side
Specifications HF unit
Sensitivity
101 dB
Nominal Power Handling
25 W
Continuous Power Handling
50 W
Voice Coil Diameter
36 mm (1.4 in)
Winding Material
Aluminium
Flux Density
1.65 T
Nominal Diameter
127 mm (5 in)
Nominal Impedance
8 Ω
Minimum Impedance
10 Ω
Recommended Crossover
2 kHz
Inductance
0.14 mH
Diaphragm Material
HT Polymer
Design
Magnet Material
Neodymium Ring
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
95 Hz
Re
5.8 Ω
Qes
0.97
Qms
13.5
Qts
0.9
Vas
4.4 dm³ (0.16 ft³)
Sd
95 cm² (14.73 sq²)
η0
0.36 %
Xvar
5.5 mm
Mms
8.3 g
Bl
5.42 Tm
Le
0.89 mH
EBP
98 Hz

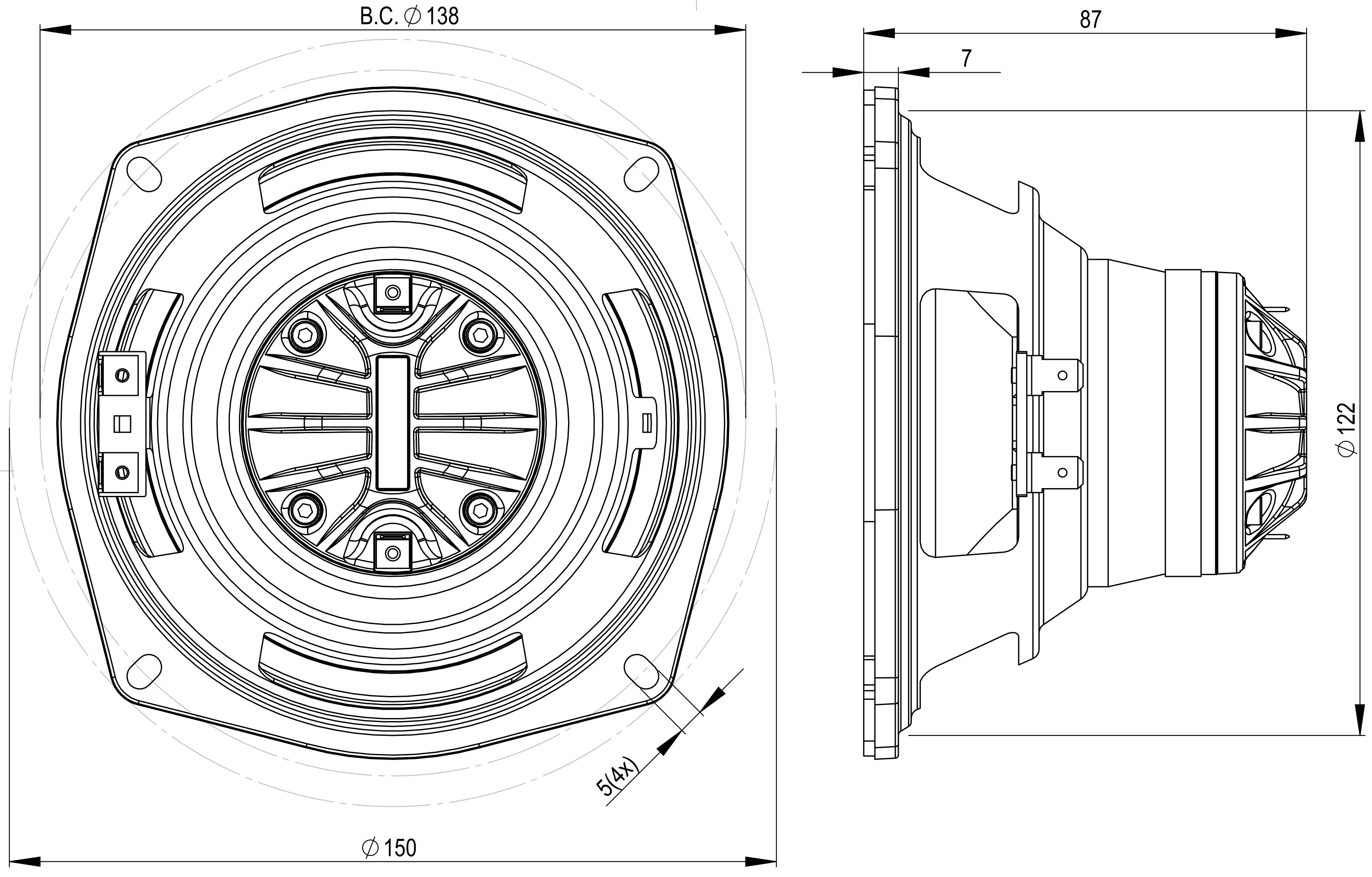

Mounting and Shipping Info
Overall Diameter
150 mm (5.91 in)
Bolt Circle Diameter
138 mm (5.43 in)
Baffle Cutout Diameter
123 mm (4.84 in)
Depth
87 mm (3.43 in)
Flange and Gasket Thickness
7 mm (0.28 in)
Net Weight
0.65 kg (1.43 lb)
Shipping Units
1 pcs
Shipping Weight
1.13 kg (2.49 lb)
Shipping Box
255x255x150 mm (10.04x10.04x5.91 in)
Service Kit
hf Replacement Diaphragm
MMDDE11016
lf Recone Kit
RCK005CXN368
Cone
Gasket
Centering Shims
