Features
220 W continuous program power capacity
1.4" horn throat diameter
75 mm (3 in) aluminium voice coil
Titanium diaphragm
500 - 18000 Hz response
108.5 dB sensitivity
Neodymium magnet assembly with shorting copper cap
Specifications
Throat Diameter
36 mm (1.4 in)
Nominal Impedance
16 Ω
Minimum Impedance
11.3 Ω
Nominal Power Handling
110 W
Continuous Power Handling
220 W
Sensitivity
108.5 dB
Frequency Range
0.5 kHz - 18 kHz
Recommended Crossover
1.2 kHz
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Inductance
0.12 mH
Flux Density
2.05 T
Diaphragm Material
Titanium
Min Frequency Range
0.5 kHz
Max Frequency Range
18 kHz

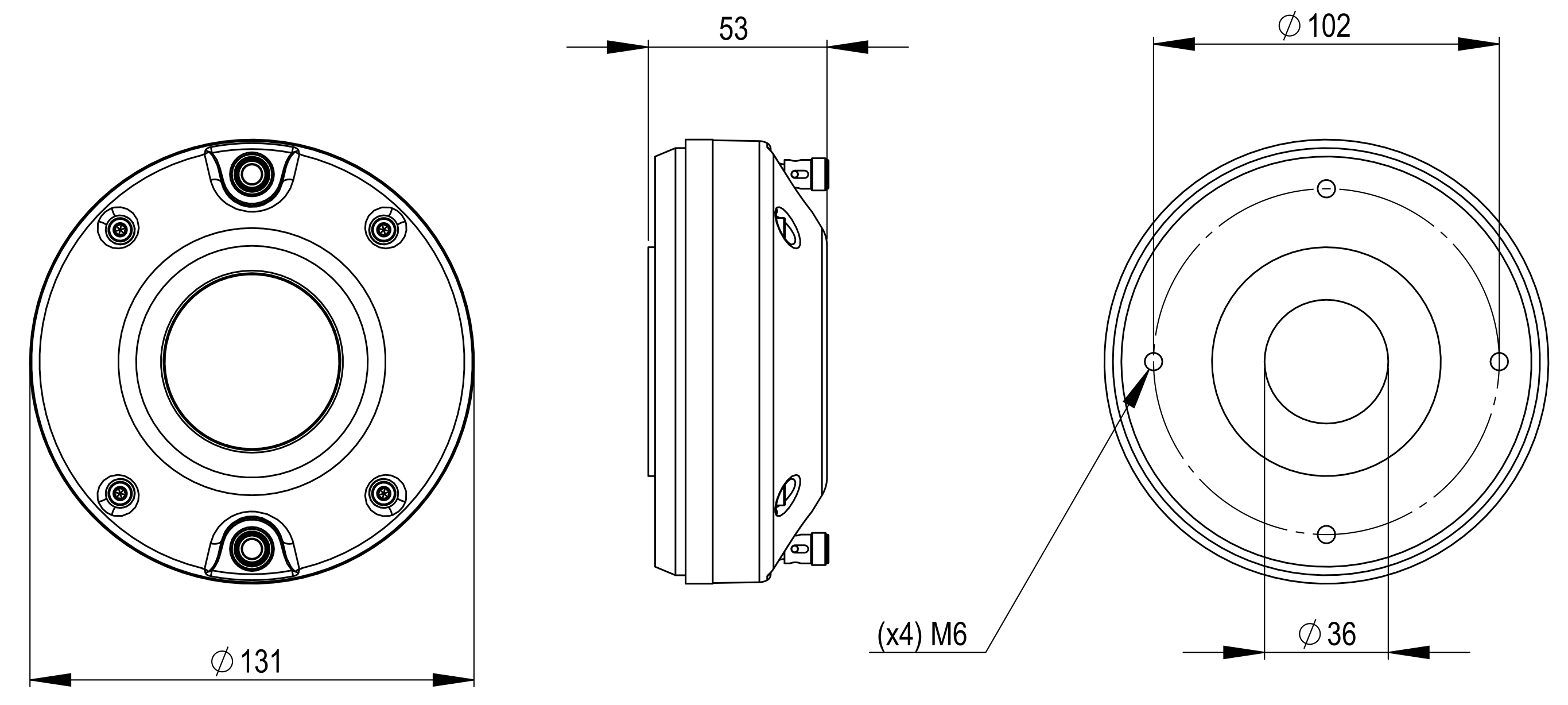

Mounting and Shipping Info
Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter
131 mm (5.2 in)
Depth
53 mm (2.09 in)
Net Weight
2.4 kg (5.29 lb)
Shipping Units
1 pcs
Shipping Weight
2.45 kg (5.39 lb)
Shipping Box
140x135x62 mm (5.51x5.31x2.44 in)
Service Kit
hf Replacement Diaphragm
MMD3BTN16M
