Features
120 W continuous program power capacity
1.4" horn throat diameter
44 mm (1.7 in) aluminium voice coil
Titanium diaphragm
1000 - 19000 Hz response
106.5 dB sensitivity
Specifications
Throat Diameter
36 mm (1.4 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.8 Ω
Nominal Power Handling
60 W
Continuous Power Handling
120 W
Sensitivity
106.5 dB
Frequency Range
1 - 19 kHz
Recommended Crossover
1.5 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.11 mH
Diaphragm Material
Titanium
Magnet Material
Ferrite
Flux Density
1.85 T
Mounting and Shipping Info
Other details
4x M6 Mounting Studs with bolts and washers included

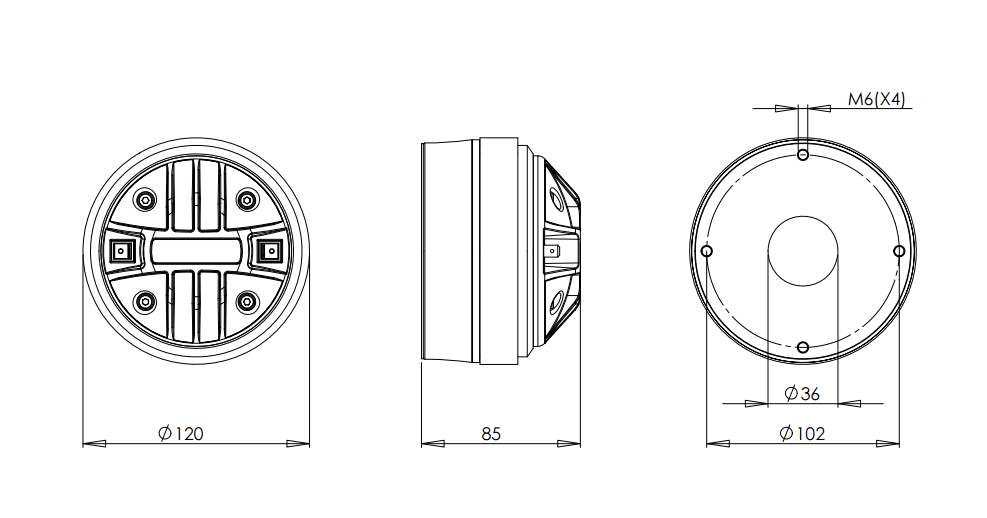

Overall Diameter
120 mm (4.7 in)
Depth
85 mm (3.3 in)
Net Weight
2.4 kg (5.3 lb)
Shipping Units
1 pcs
Shipping Weight
2.44 kg (5.39 lb)
Shipping Box
135x135x93 mm (5.31x5.31x3.66 in)
Service Kit
hf Replacement Diaphragm
MMD5028M
Available in Fast-On Version
