Features
160 W continuous program power capacity
1.4' horn throat diameter
65 mm (2.5 in) aluminium voice coil
Titanium diaphragm
1000 - 18000 Hz response
107 dB sensitivity
Neodymium magnet assembly with shorting copper cap
Specifications
Throat Diameter
36 mm (1.4 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.9 Ω
Nominal Power Handling
80 W
Continuous Power Handling
160 W
Sensitivity
107 dB
Frequency Range
1 kHz - 18 kHz
Recommended Crossover
1.2 kHz
Voice Coil Diameter
65 mm (2.5 in)
Winding Material
Aluminium
Inductance
0.15 mH
Flux Density
1.8 T
Diaphragm Material
Titanium
Min Frequency Range
1 kHz
Max Frequency Range
18 kHz

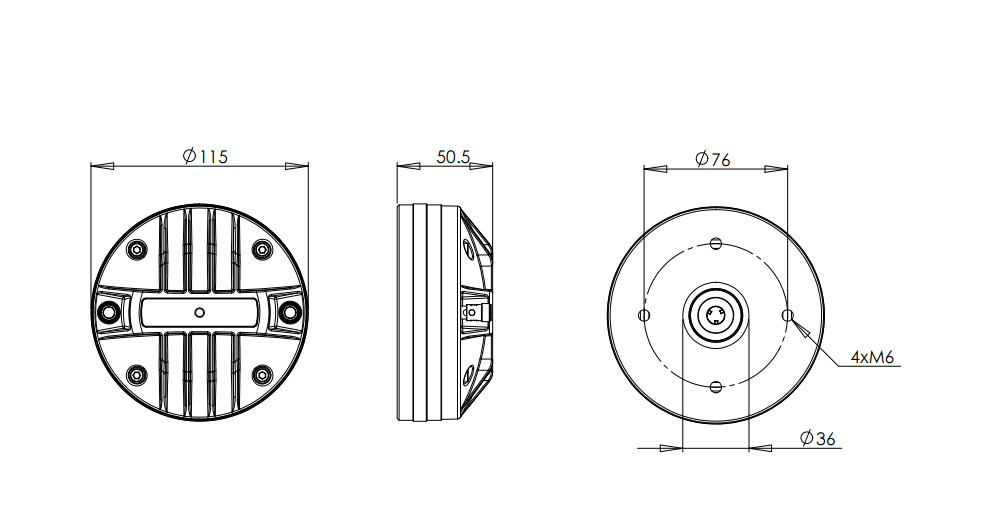

Mounting and Shipping Info
Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter
115 mm (4.5 in)
Depth
52 mm (2 in)
Net Weight
1.75 kg (3.85 lb)
Shipping Units
1 pcs
Shipping Weight
1.79 kg (3.94 lb)
Shipping Box
120x120x65 mm (4.72x4.72x2.56 in)
Service Kit
hf Replacement Diaphragm
MMD620TN8M
