DE640U
1.4 inch exit
NEW

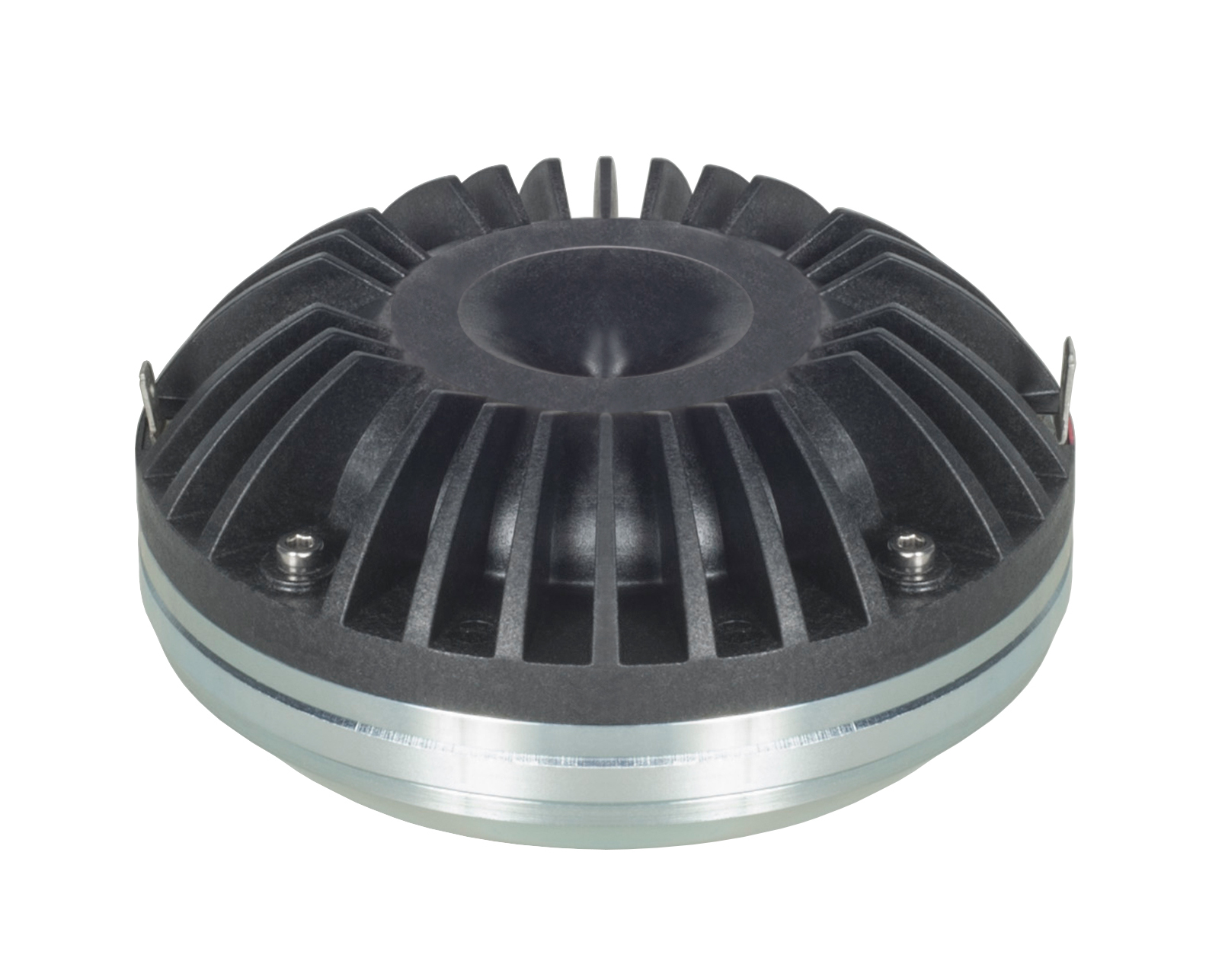

The DE640U ring radiator high frequency driver features a Upilex (Polyimide) diaphragm with a neodymium magnet motor. Extensive FEA modelling and physical testing over the last several years has culminated in these 2.5 inch (64mm) coil, ring radiator drivers with outstanding sensitivity, high frequency extension, and compactness. A practical recommended crossover point of 1.2kHz and sensitivity of 109dB allow the DE640U to be suitable for a wide range of applications, including compact two way point source boxes and line arrays. Also available, DE640P, with HT Polymer diaphragm.
Features
- 140 W continuous program power capacity
- 1.4" horn throat diameter
- 65 mm (2.5 in) aluminium voice coil
- Upilex (Polyimide) diaphragm
- 1000 - 18000 Hz response
- 109 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
Specifications
Throat Diameter
36 mm (1.4 in)
Nominal Impedance
8 Ω

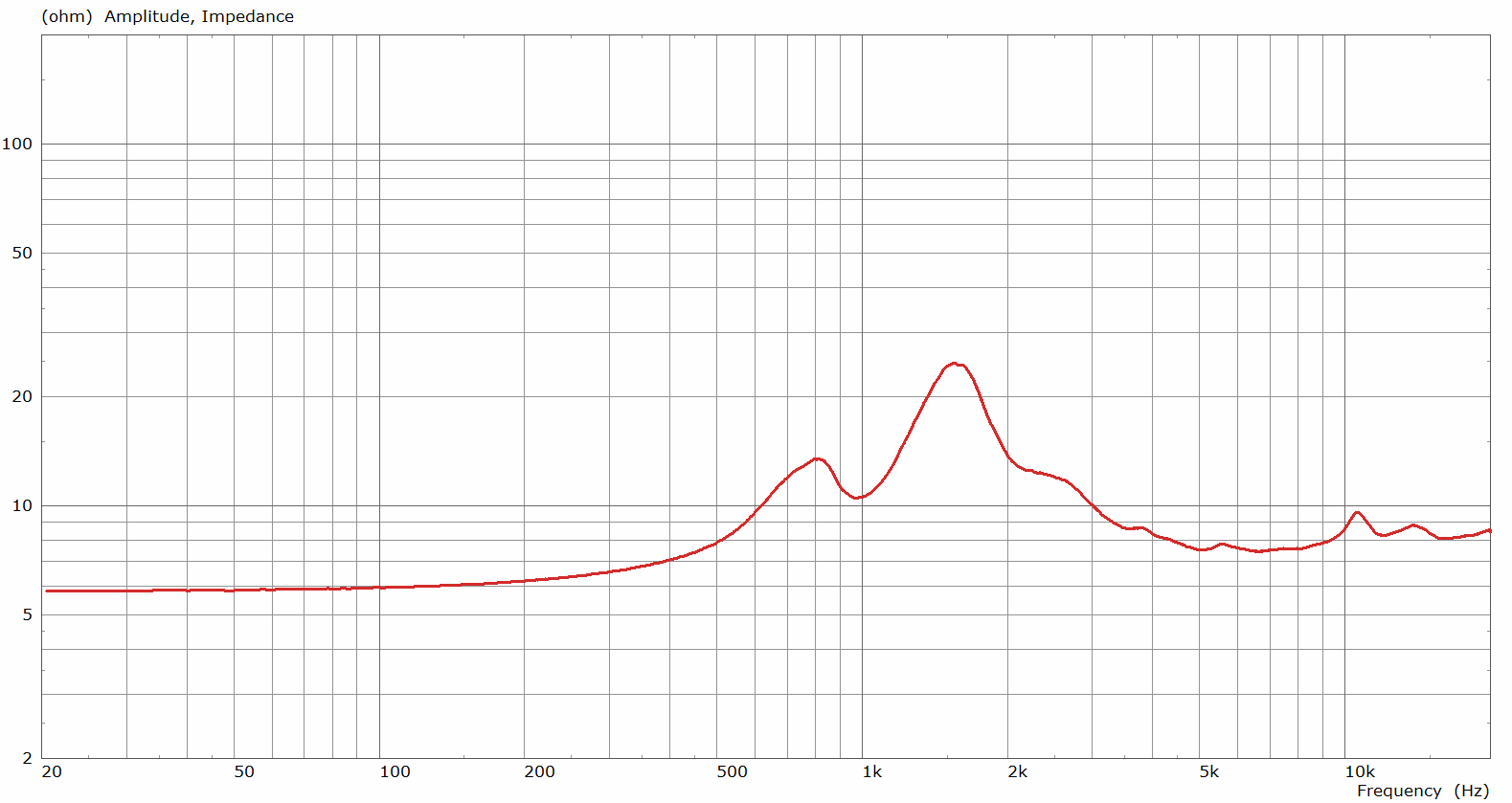

Minimum Impedance
7.6 Ω
Nominal Power Handling
70 W
Continuous Power Handling
140 W
Sensitivity
109 dB
Frequency Range
1 kHz - 18 kHz
Recommended Crossover
1.2 kHz
Voice Coil Diameter
65 mm (2.5 in)
Winding Material
Aluminium
Inductance
0.14 mH
Flux Density
1.95 T
Diaphragm Material
Polyimide

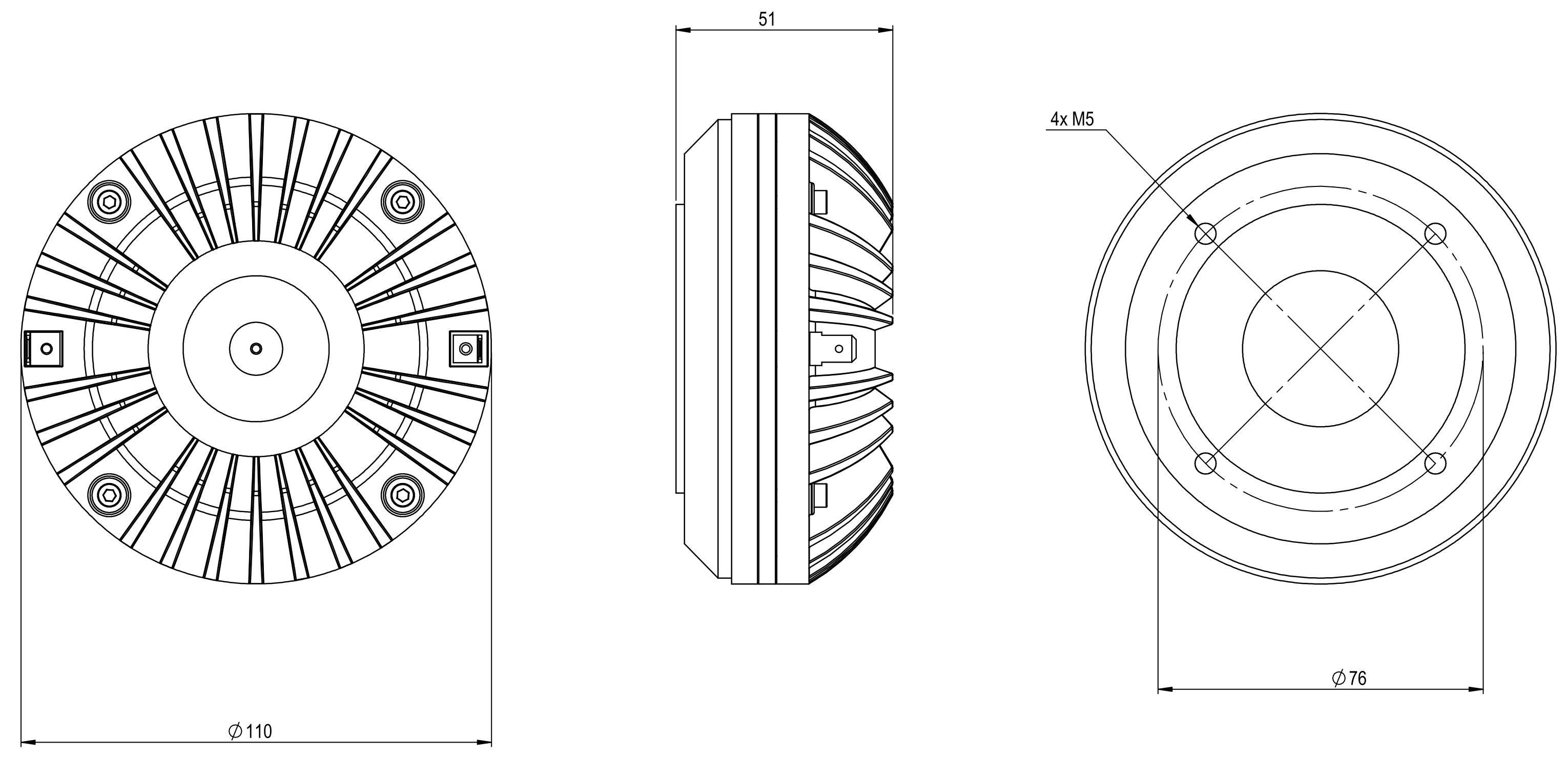

Mounting and Shipping Info
Four M6 holes 90° on 76 mm (3 in) diameter
Overall Diameter
110 mm (4.33 in)
Depth
51 mm (2.01 in)
Net Weight
