Features
220 W continuous program power capacity
1.4' horn throat diameter
75 mm (3 in) aluminium voice coil
Composite Polyimide/Titanium diaphragm
500 - 18000 Hz response
108 dB sensitivity
Neodymium magnet assembly with shorting copper cap
Specifications
Throat Diameter
36 mm (1.4 in)
Nominal Impedance
8 Ω
Minimum Impedance
8 Ω
Nominal Power Handling
110 W
Continuous Power Handling
220 W
Sensitivity
108 dB
Frequency Range
1 - 18 kHz
Recommended Crossover
1.2 kHz
Voice Coil Diameter
75 mm (3 in)
Winding Material
Aluminium
Inductance
0.14 mH
Diaphragm Material
Composite Polyimide/Titanium
Magnet Material
Neodymium Ring
Flux Density
1.85 T
Mounting and Shipping Info
Other details
4x M6 Mounting Studs with bolts and washers included

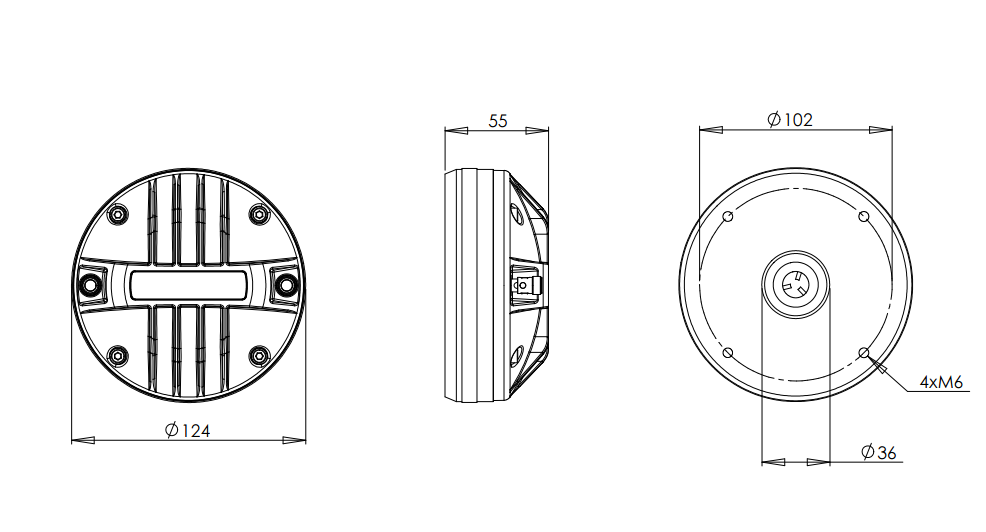

Overall Diameter
124 mm (4.9 in)
Depth
56 mm (2.2 in)
Net Weight
2.3 kg (5.1 lb)
Shipping Units
1 pcs
Shipping Weight
2.35 kg (5.17 lb)
Shipping Box
140x135x62 mm (5.51x5.31x2.44 in)
Service Kit
hf Replacement Diaphragm
MMD8008M
Available in Fast-On Version
