Features
100 W continuous program power capacity
1' horn throat diameter
44 mm (1.7 in) aluminium voice coil
Polyimide diaphragm
1200 - 18000 Hz response
109 dB sensitivity
Compact Neodymium magnet assembly
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
16 Ω
Minimum Impedance
10.4 Ω
Nominal Power Handling
50 W
Continuous Power Handling
100 W
Sensitivity
109 dB
Frequency Range
1 - 18 kHz
Recommended Crossover
1.6 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.11 mH
Diaphragm Material
Polyimide
Magnet Material
Neodymium Ring
Flux Density
1.8 T
Mounting and Shipping Info
Other details
2x M6 Mounting Studs with bolts and washers included

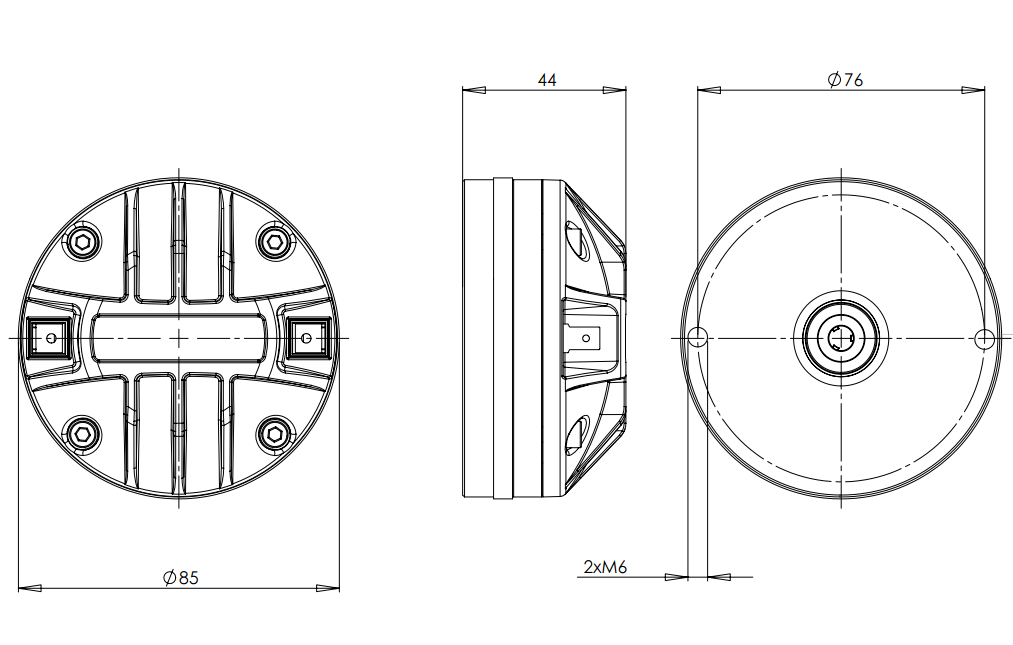

Overall Diameter
85 mm (3.3 in)
Depth
44 mm (1.7 in)
Net Weight
0.86 kg (1.88 lb)
Shipping Units
1 pcs
Shipping Weight
0.89 kg (1.95 lb)
Shipping Box
