DH450
NEW
HLX Series - The Helical Approach
B&C has a reputation for performance, by turning the limits of traditional compression driver design on their head. HLX™ : Compression driver efficiency in miniature. The HLX™ phase plug (US Patent #12149906) has a central channel that is twisted, like DNA, to gain the length required to match the outer channels. This technique works with standard, cost-effective injection mold tooling and plastics by rotating the inner die along a screw profile. The convex dome design, so achieved, has a number of significant cost and performance advantages.
➔ Minimized diameter, weight, and cost
➔ lncreased diaphragm area
➔ Low, ~1kHz Crossover point
➔ Reduced distortion, especially intermodulation distortion
➔ More efficient magnetic flux use
Features
Very Compact 69 mm diameter
40 W continuous program power capacity (without heatsink)
80 W continuous program power capacity (with heatsink - DH450H)
1" horn throat diameter
44 mm (1.7 in) aluminium voice coil
HT Polymer diaphragm
1000 - 18000 Hz response
110 dB sensitivity
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
16 Ω
Minimum Impedance
12.3 Ω
Nominal Power Handling
20 W
Continuous Power Handling
40 W
Sensitivity
110 dB
Frequency Range
1 kHz - 18 kHz
Recommended Crossover
1 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.22 mH
Flux Density
1.9 T
Diaphragm Material
HT Polymer
Min Frequency Range
1 kHz
Max Frequency Range
18 kHz

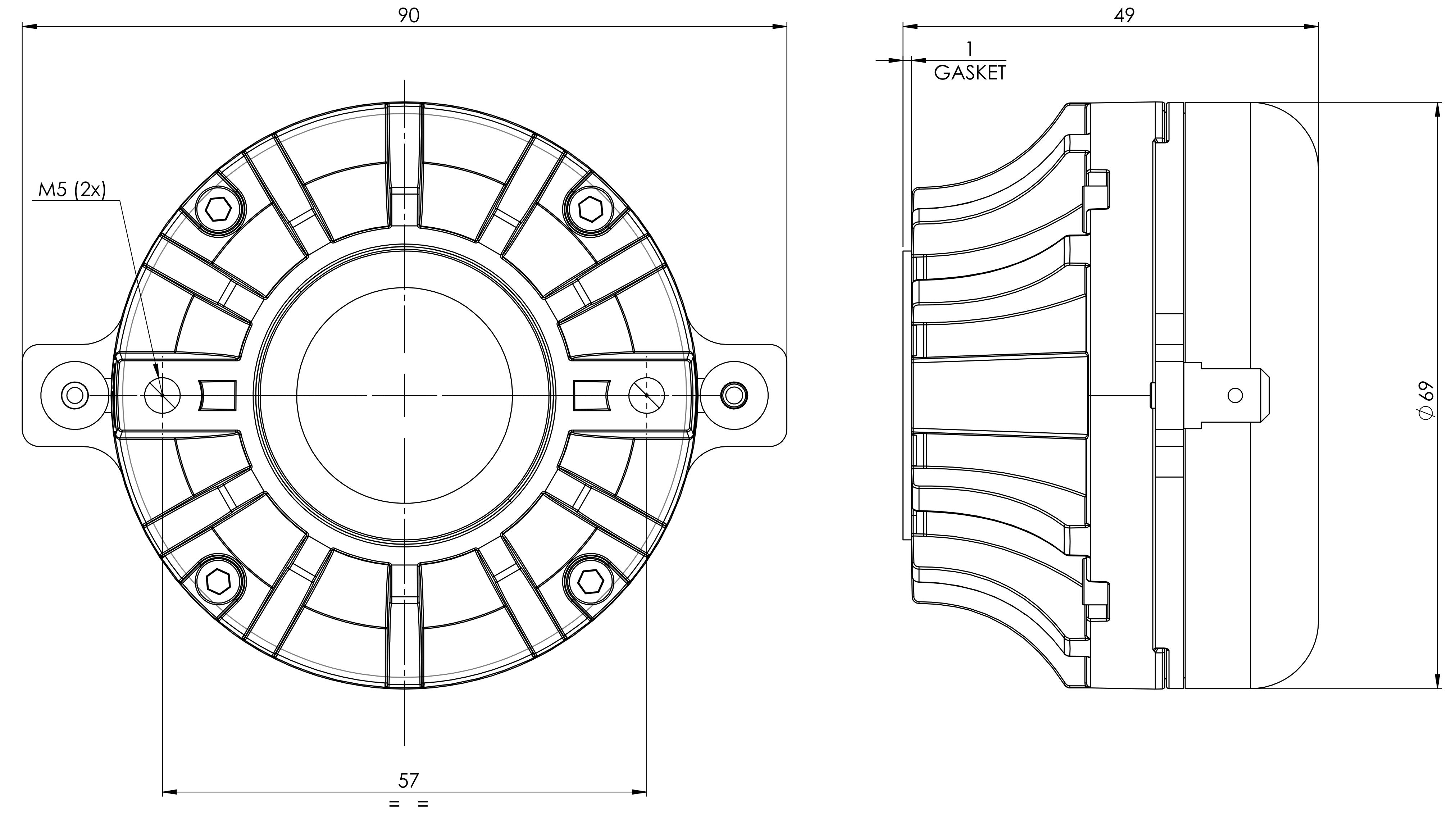

Mounting and Shipping Info
Two M5 holes 180° on 57 mm (2.24 in) diameter Diameter is 90mm at widest point (driver rotated, across mounting studs
Overall Diameter
69 mm (2.72 in)
Depth
48 mm (1.89 in)
Net Weight
0.53 kg (1.16 lb)
Shipping Units
1 pcs
Shipping Weight
0.56 kg (1.23 lb)
