Features
50 W continuous program power capacity
1" horn throat diameter
36 mm (1.4 in) aluminium voice coil
Polyester diaphragm
1500 - 18000 Hz response
106 dB sensitivity
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.8 Ω
Nominal Power Handling
25 W
Continuous Power Handling
50 W
Sensitivity
106 dB
Frequency Range
1.5 - 18 kHz
Recommended Crossover
2.2 kHz
Voice Coil Diameter
36 mm (1.4 in)
Winding Material
Aluminium
Inductance
0.14 mH
Diaphragm Material
Mylar
Magnet Material
Ferrite
Flux Density
1.45 T

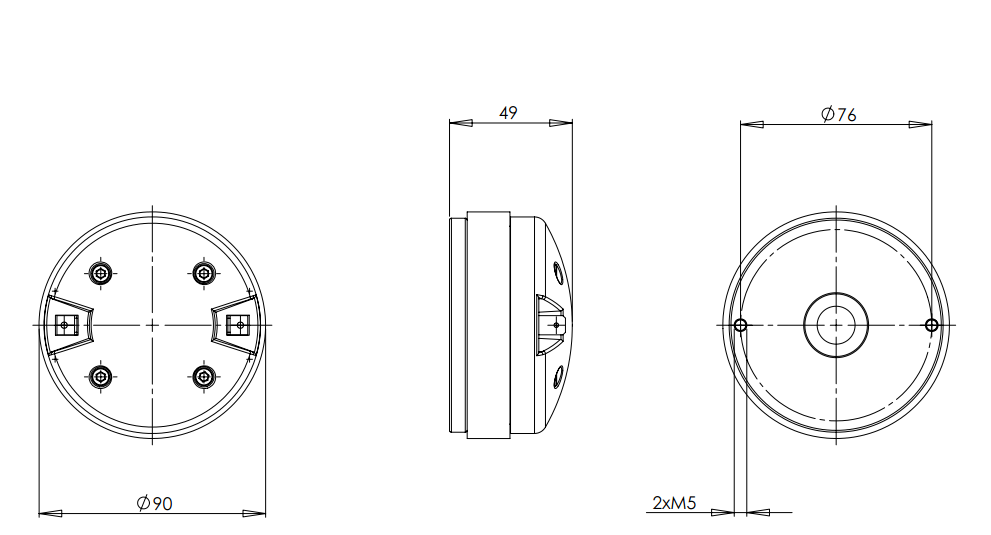

Mounting and Shipping Info
Overall Diameter
90 mm (3.5 in)
Depth
49 mm (2 in)
Net Weight
1.05 kg (2.31 lb)
Shipping Units
1 pcs
Shipping Weight
1.08 kg (2.38 lb)
Shipping Box
105x105x65 mm (4.13x4.13x2.56 in)
Service Kit
hf Replacement Diaphragm
MMD0128
