Features
80 W continuous program power capacity
1" horn throat diameter
44 mm (1.7 in) aluminium voice coil
Mylar diaphragm
1500 - 18000 Hz response
107 dB sensitivity
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.4 Ω
Nominal Power Handling
40 W
Continuous Power Handling
80 W
Sensitivity
107 dB
Frequency Range
1.5 - 18 kHz
Recommended Crossover
2 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.11 mH
Diaphragm Material
Mylar
Magnet Material
Ferrite
Flux Density
1.5 T
Mounting and Shipping Info
Other details
2x M6 Mounting Studs with bolts and washers included

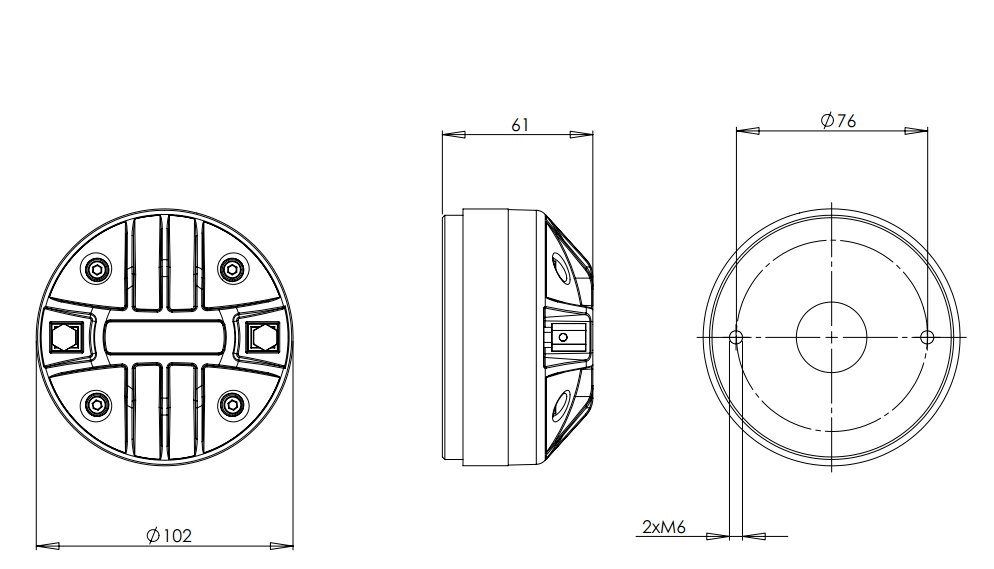

Overall Diameter
102 mm (4 in)
Depth
61 mm (2.4 in)
Net Weight
1.7 kg (3.75 lb)
Shipping Units
1 pcs
Shipping Weight
1.73 kg (3.81 lb)
Shipping Box
105x105x65 mm (4.13x4.13x2.56 in)
Service Kit
hf Replacement Diaphragm
MMDDE1608
Available in Button-On Version
