Features
120 W continuous program power capacity
1' horn throat diameter
44 mm (1.7 in) aluminium voice coil
Polyimide diaphragm
1000 - 18000 Hz response
108.5 dB sensitivity
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.8 Ω
Nominal Power Handling
60 W
Continuous Power Handling
120 W
Sensitivity
108.5 dB
Frequency Range
1 - 18 kHz
Recommended Crossover
1.6 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.11 mH
Diaphragm Material
Polyimide
Magnet Material
Ferrite
Flux Density
1.85 T

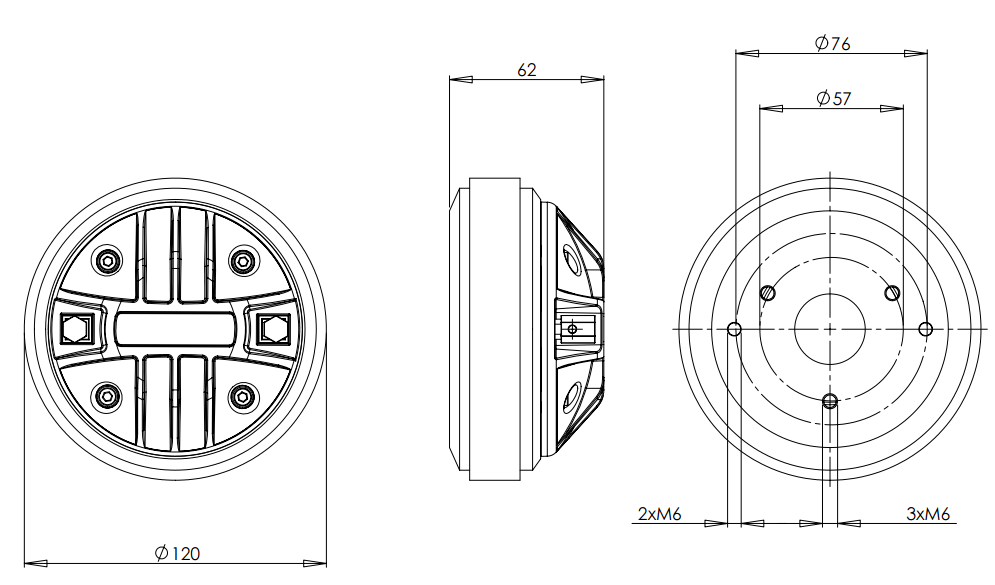

Mounting and Shipping Info
Other details
3x M6 Mounting Studs with bolts and washers included
Overall Diameter
120 mm (4.7 in)
Depth
62 mm (2.4 in)
Net Weight
2.15 kg (4.74 lb)
Shipping Units
1 pcs
Shipping Weight
2.21 kg (4.87 lb)
Shipping Box
