DE360
The DE360 features a high temperature (HT) polymer diaphragm with a neodymium magnet motor. Extensive FEA modeling and physical testing over the last several years has culminated in these 1.5 inch (38mm) coil ring drivers with outstanding sensitivity, high frequency extension, and compactness. A practical recommended crossover point of 1.8kHz and sensitivity of 110dB in the DE360 allows for a wide range of applications, including compact two way boxes and line arrays.
Features
- 70 W continuous program power capacity
- 110 dB sensitivity
- 1200 - 20000 Hz response
- 1" horn throat diameter
- 38 mm (1.5 in) aluminum voice coil
- Annular HT polymer diaphragm
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.6 Ω
Nominal Power Handling
35 W
Continuous Power Handling
70 W
Sensitivity
110 dB
Frequency Range
1.2 kHz - 20 kHz
Recommended Crossover
1.8 kHz
Voice Coil Diameter
38 mm (1.5 in)
Winding Material
Aluminium
Inductance
0.05 mH
Flux Density
2 T
Diaphragm Material
HT Polymer Ring

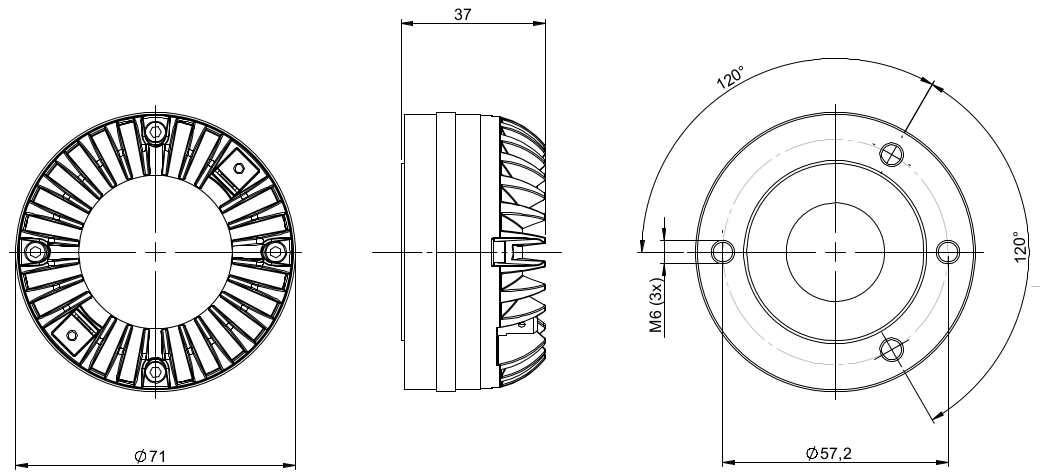

Mounting and Shipping Info
Overall Diameter
71 mm (2.8 in)
Depth
37 mm (1.46 in)
Net Weight
0.5 kg (1.1 lb)
Shipping Units
1 pcs
Shipping Weight
0.53 kg (1.16 lb)
Shipping Box
105x105x65 mm (4.13x4.13x2.56 in)
Service Kit
hf Replacement Diaphragm
MMD0368
