Features
100 W continuous program power capacity
1' horn throat diameter
44 mm (1.7 in) aluminium voice coil
Titanium diaphragm
1200 - 18000 Hz response
106 dB sensitivity
Compact Neodymium magnet assembly
Shorting copper cap for extended HF response
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.7 Ω
Nominal Power Handling
50 W
Continuous Power Handling
100 W
Sensitivity
106 dB
Frequency Range
1.2 - 18 kHz
Recommended Crossover
1.5 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.11 mH
Diaphragm Material
Titanium
Magnet Material
Neodymium Ring
Flux Density
1.8 T

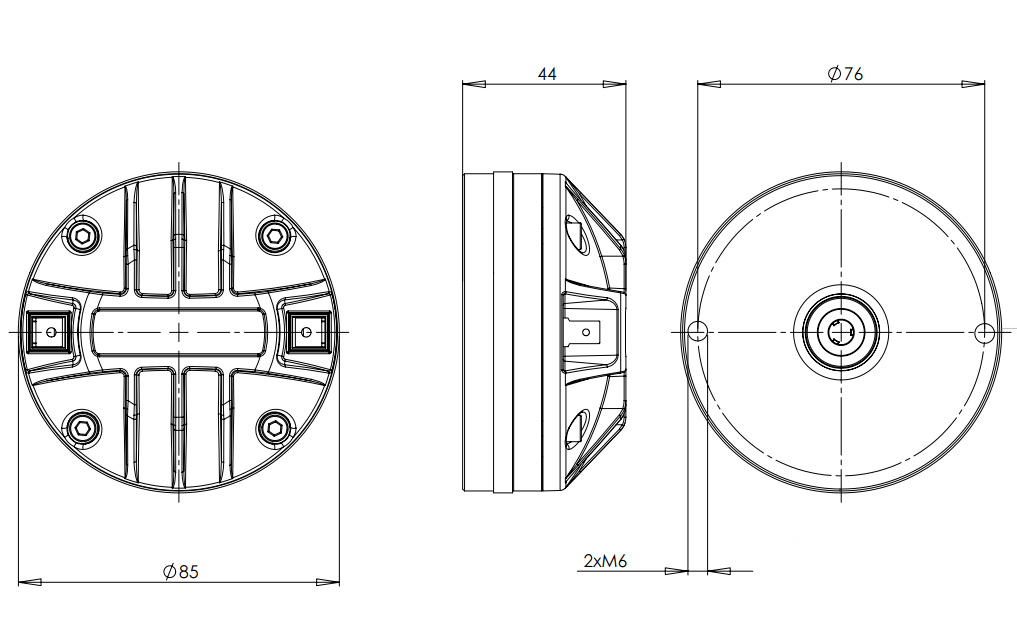

Mounting and Shipping Info
Other details
2x M6 Mounting Studs with bolts and washers included
Overall Diameter
85 mm (3.3 in)
Depth
44 mm (1.7 in)
Net Weight
0.86 kg (1.88 lb)
Shipping Units
1 pcs
Shipping Weight
0.89 kg (1.95 lb)
Shipping Box
105x105x65 mm (4.13x4.13x2.56 in)
Service Kit
hf Replacement Diaphragm
MMD400TN8
