DE1085TN
The DE1085TN is the latest version of our premium 100mm (4.0 in) voice coil, neodymium high frequency driver. The diaphragm in this model has been completely redesigned to incorporate a bent edge voice coil former as well as new dome and surround geometry. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.
Features
280 W continuous program power capacity
2" horn throat diameter
100 mm (4 in) aluminium voice coil
Titanium diaphragm
500 - 20000 Hz response
108 dB sensitivity
Neodymium magnet assembly with shorting copper cap
Specifications
Throat Diameter
50 mm (2 in)

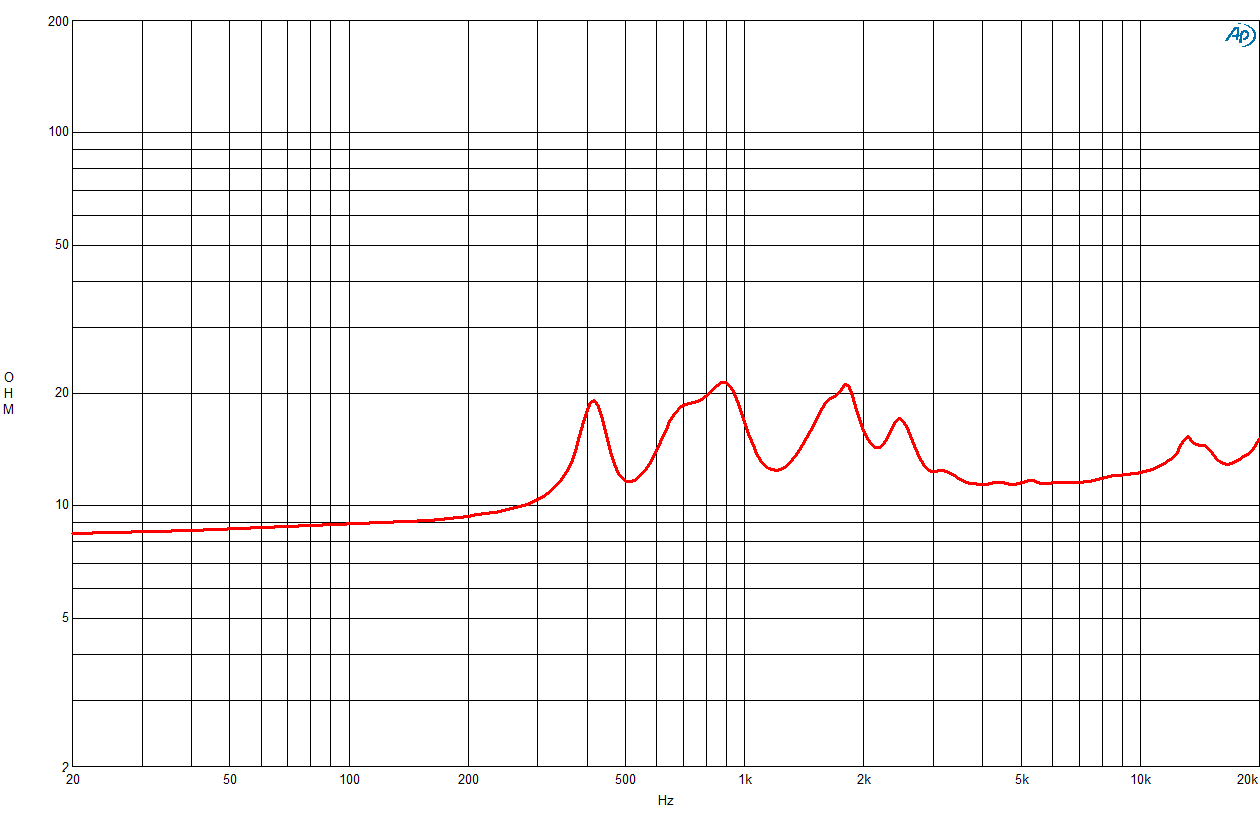

Nominal Impedance
16 Ω
Minimum Impedance
11.4 Ω
Nominal Power Handling
140 W
Continuous Power Handling
280 W

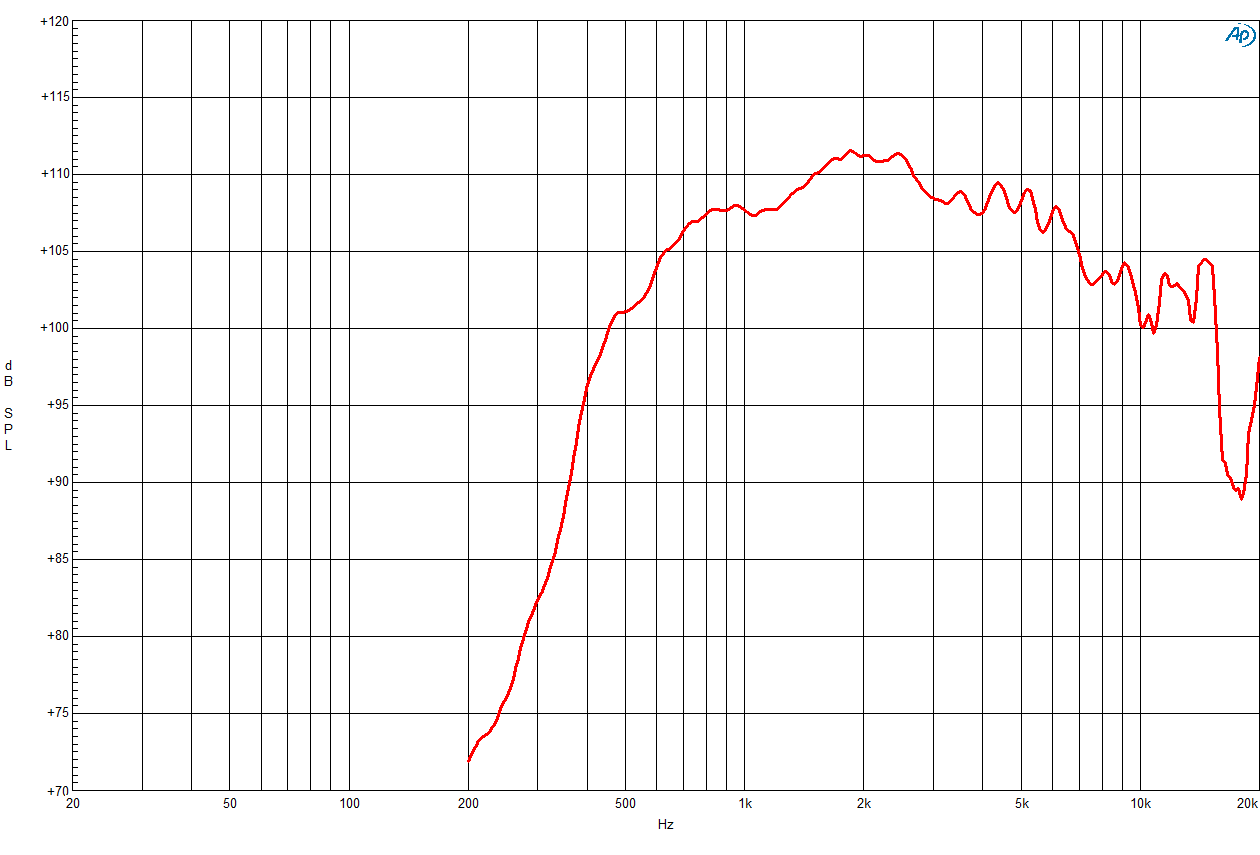

Sensitivity
108 dB
Frequency Range
500 - 20 kHz
Recommended Crossover
0.8 kHz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Aluminium
Inductance
0.18 mH
Diaphragm Material
Titanium
Magnet Material
Neodymium Ring
Flux Density
1.95 T
Mounting and Shipping Info
Other details
4x M6 Mounting Studs with bolts and washers included
Overall Diameter
154 mm (6.1 in)
Depth
86 mm (3.39 in)
Net Weight
3.7 kg (8.16 lb)
Shipping Units
1 pcs
Shipping Weight
4 kg (8.82 lb)
Shipping Box
190x190x120 mm (7.48x7.48x4.72 in)
Service Kit
hf Replacement Diaphragm
MMD4BTN16M
