Features
100 W continuous program power capacity
1' horn throat diameter
44 mm (1.7 in) aluminium voice coil
Titanium diaphragm
1000 - 18000 Hz response
107 dB sensitivity
Optimized Neodymium magnet assembly
Shorting copper cap for extended HF response
Specifications
Throat Diameter
25 mm (1 in)
Nominal Impedance
8 Ω
Minimum Impedance
7.6 Ω
Nominal Power Handling
50 W
Continuous Power Handling
100 W
Sensitivity
107 dB
Frequency Range
1 kHz - 18 kHz
Recommended Crossover
1.5 kHz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Inductance
0.11 mH
Flux Density
1.9 T
Diaphragm Material
Titanium
Min Frequency Range
1 kHz
Max Frequency Range
18 kHz

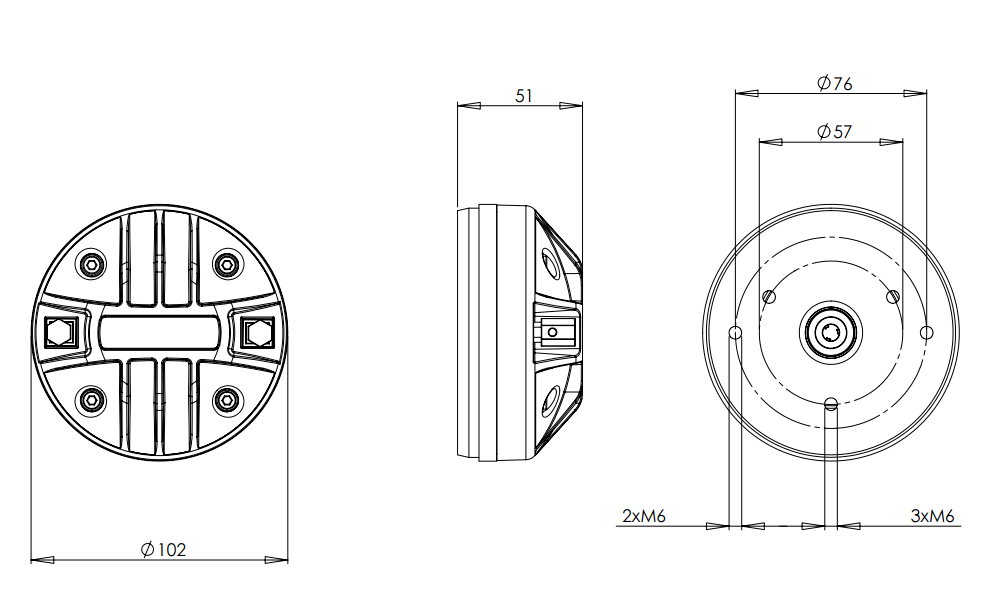

Mounting and Shipping Info
Two M6 holes 180° on 76 mm (3 in) diameter Three M6 holes 120° on 57 mm (2.2 in) diameter
Overall Diameter
102 mm (4 in)
Depth
51 mm (2 in)
Net Weight
1.4 kg (3.1 lb)
Shipping Units
1 pcs
Shipping Weight
1.43 kg (3.14 lb)
Shipping Box
105x105x65 mm (4.13x4.13x2.56 in)
Service Kit
hf Replacement Diaphragm
MMD5008
Available in Button-On Version
