WG7
0.75 inches
Wave guide horn not sold separately
Available exclusively with 4.8+2.8 mm fast-on terminal tab
Available exclusively with 4.8+2.8 mm fast-on terminal tab
Features
Line Array optimized Waveguide with two DE7 drivers
150° max horizontal coverage
40 W continuous program power capacity
25 mm (1 in) aluminium voice coil
Mylar diaphragm
2000 - 18000 Hz response
107 dB sensitivity
Compact Neodymium magnet assembly
Specifications Horn unit
Nominal Impedance
4 Ω
Active Radiating Factor
94.7 %
Horizontal Coverage
150 ° Max
Specifications HF unit
Minimum Impedance
3.6 Ω
Nominal Power Handling
20 W
Continuous Power Handling
40 W
Sensitivity
107 dB
Frequency Range
2 kHz - 18 kHz
Recommended Crossover
2 kHz
Voice Coil Diameter
25 mm (1 in)
Winding Material
Aluminium
Diaphragm Material
Mylar
Flux Density
1.65 T
Mounting and Shipping Info
Exit Size
138x19 mm (5.43x0.75 in)
Net Weight
0.49 kg (1.07 lb)
Shipping Units
1 pcs
Shipping Weight
0.55 kg (1.2 lb)
Shipping Box
150x130x90 mm (5.91x5.12x3.54 in)
Driver Diameter
46 mm (1.8 in)

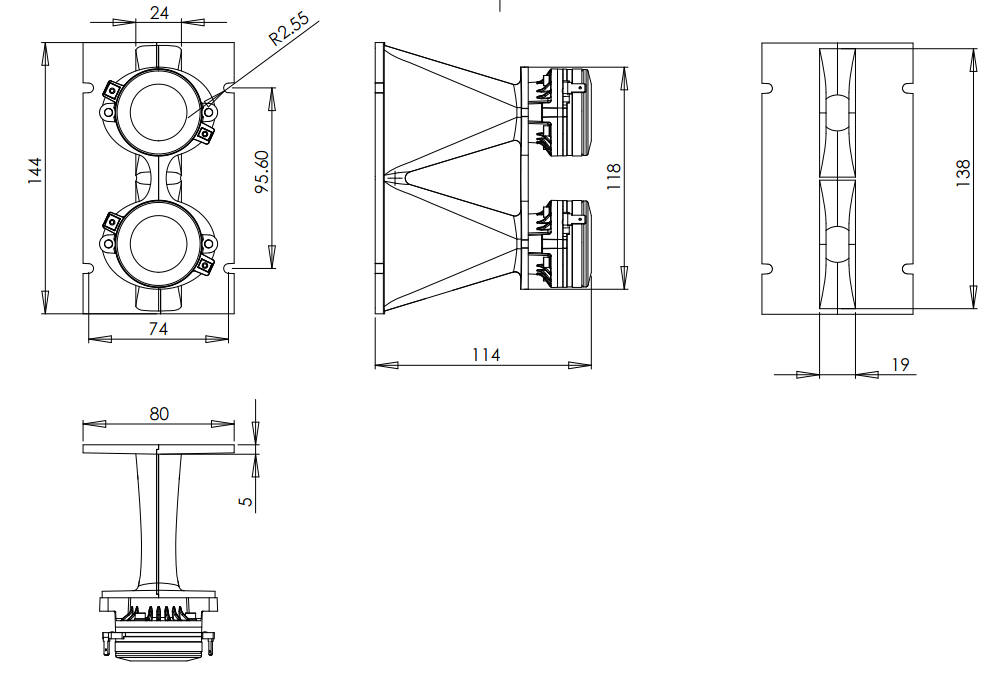

Dimensions
