Features

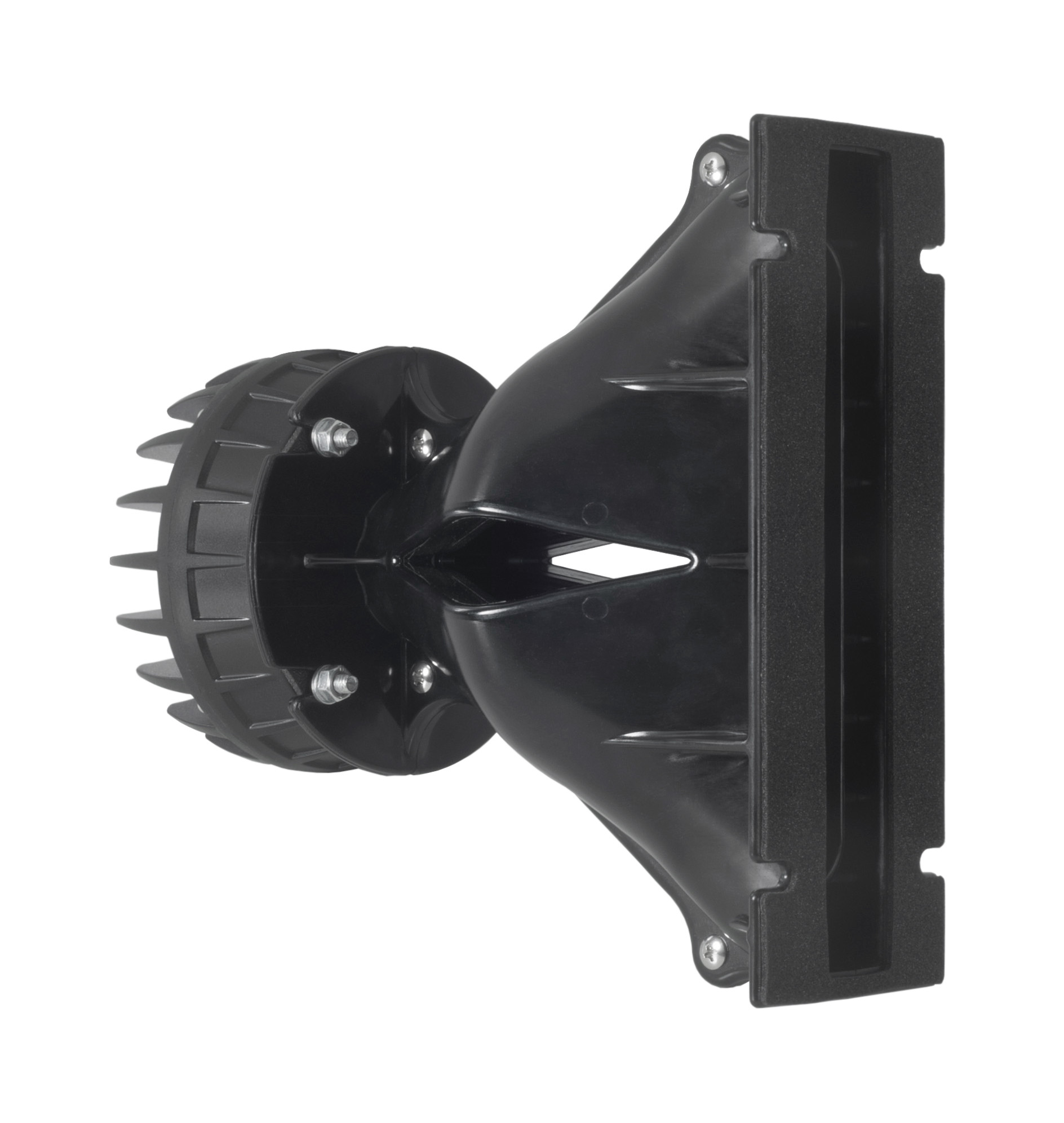

Line Array optimized Waveguide with DCX354-16 driver
Time coherent coaxial ring radiator design

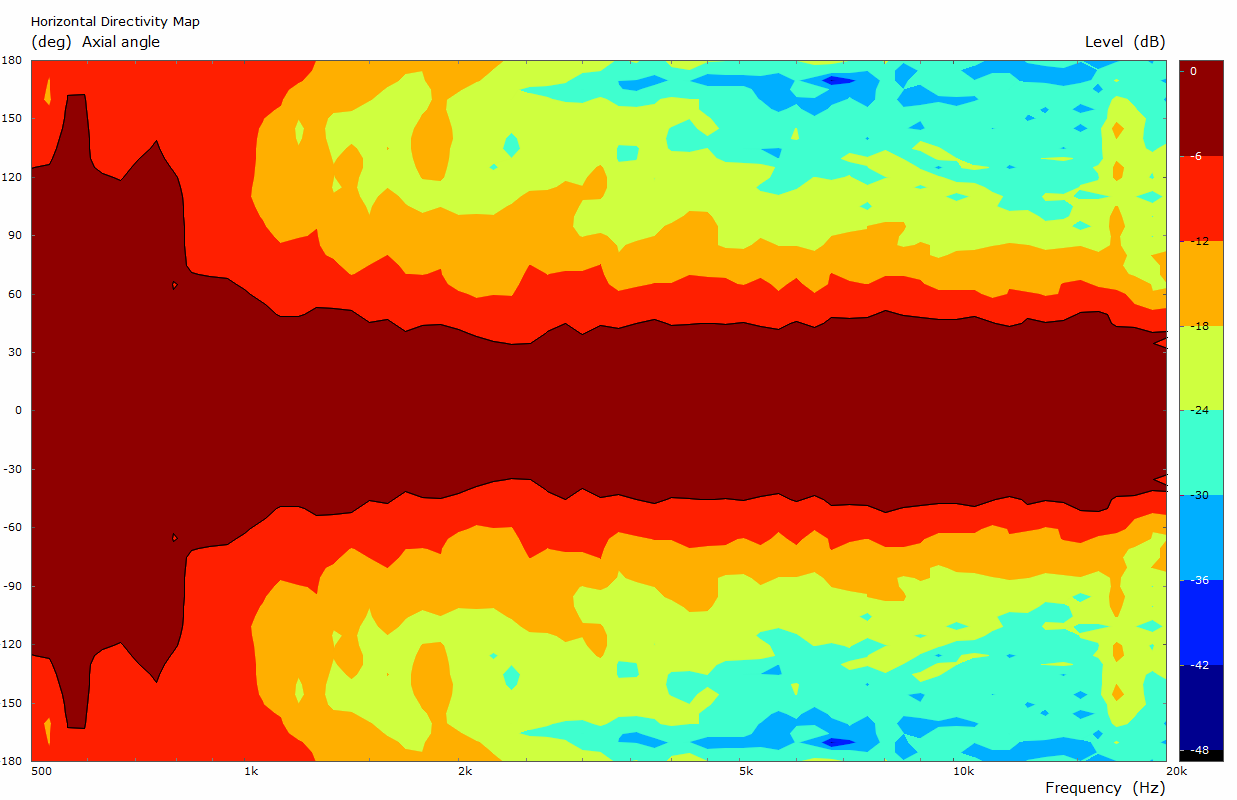

120° max horizontal coverage
111.4 dB sensitivity
180 W continuous program power capacity
Neodymium magnet assembly
Specifications Horn unit
Nominal Impedance
16 Ω
Active Radiating Factor
93.3 %
Horizontal Coverage
120 ° Max
Specifications HF unit
Minimum Impedance
10.3 Ω
Nominal Power Handling
50 W
Continuous Power Handling
100 W
Sensitivity
111.4 dB
Frequency Range
5 kHz - 20 kHz
Recommended Crossover
4.5 kHz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Inductance
0.15 mH
Diaphragm Material
HT Polymer
Flux Density
1.96 T
Specifications MF unit
Minimum Impedance
11.9 Ω
Nominal Power Handling
90 W
Continuous Power Handling
180 W
Sensitivity
109.3 dB
Frequency Range
0.4 kHz - 6 kHz
Recommended Crossover
0.4 kHz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Aluminium
Inductance
0.33 mH
Diaphragm Material
HT Polymer
Flux Density
1.93 T
Mounting and Shipping Info
Exit Size
225x25.6 mm (8.9x1 in)
Net Weight
3.28 kg (7.23 lb)
Driver Diameter
130 mm (5.12 in)
Dimensions
