Features

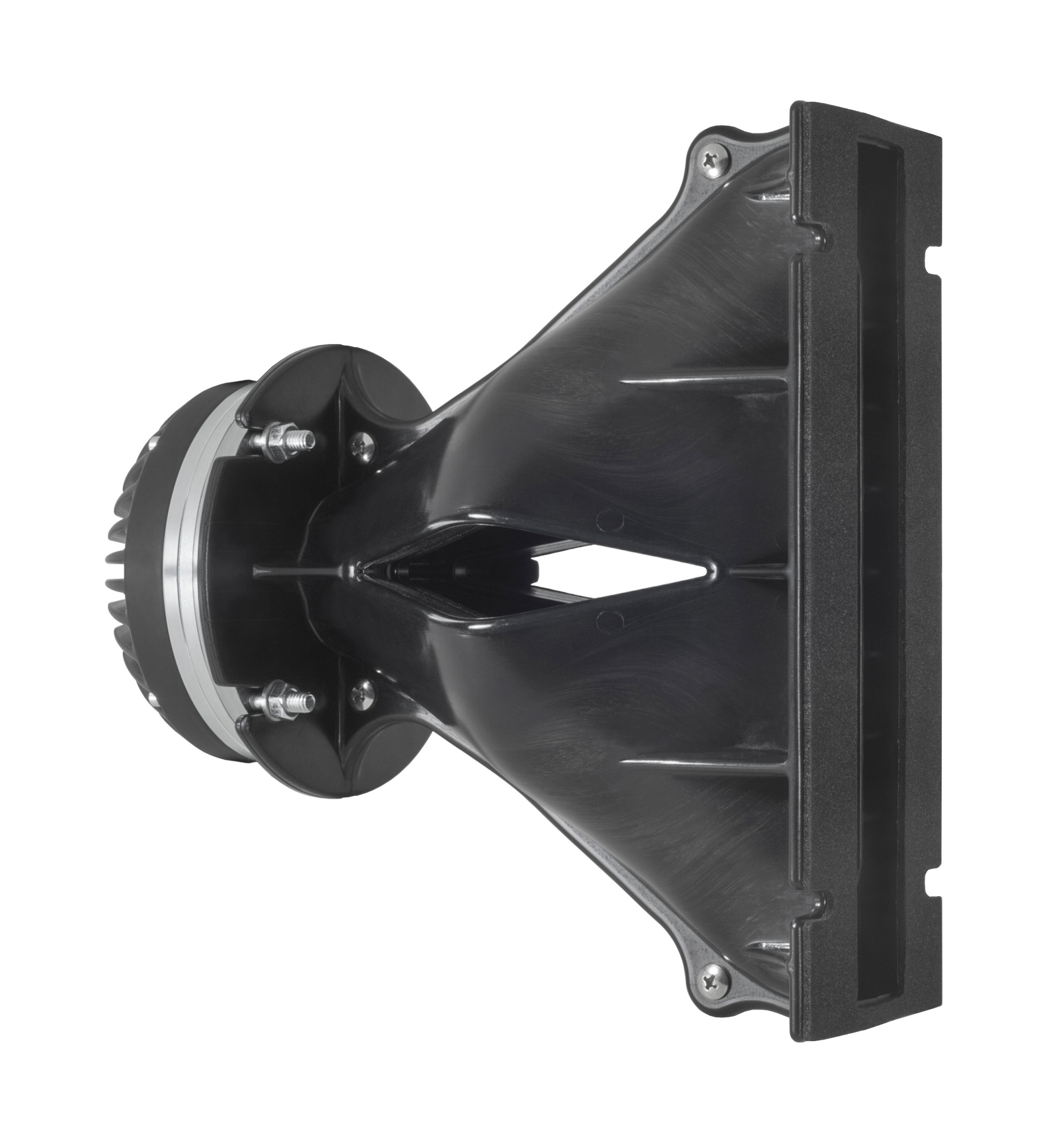

Line Array optimized Waveguide with DE780TN8 driver
120° max horizontal coverage
107.6 dB sensitivity
220 W continuous program power capacity
Neodymium magnet assembly with shorting copper cap
Specifications Horn unit
Nominal Impedance
8 Ω
Active Radiating Factor
93.3 %

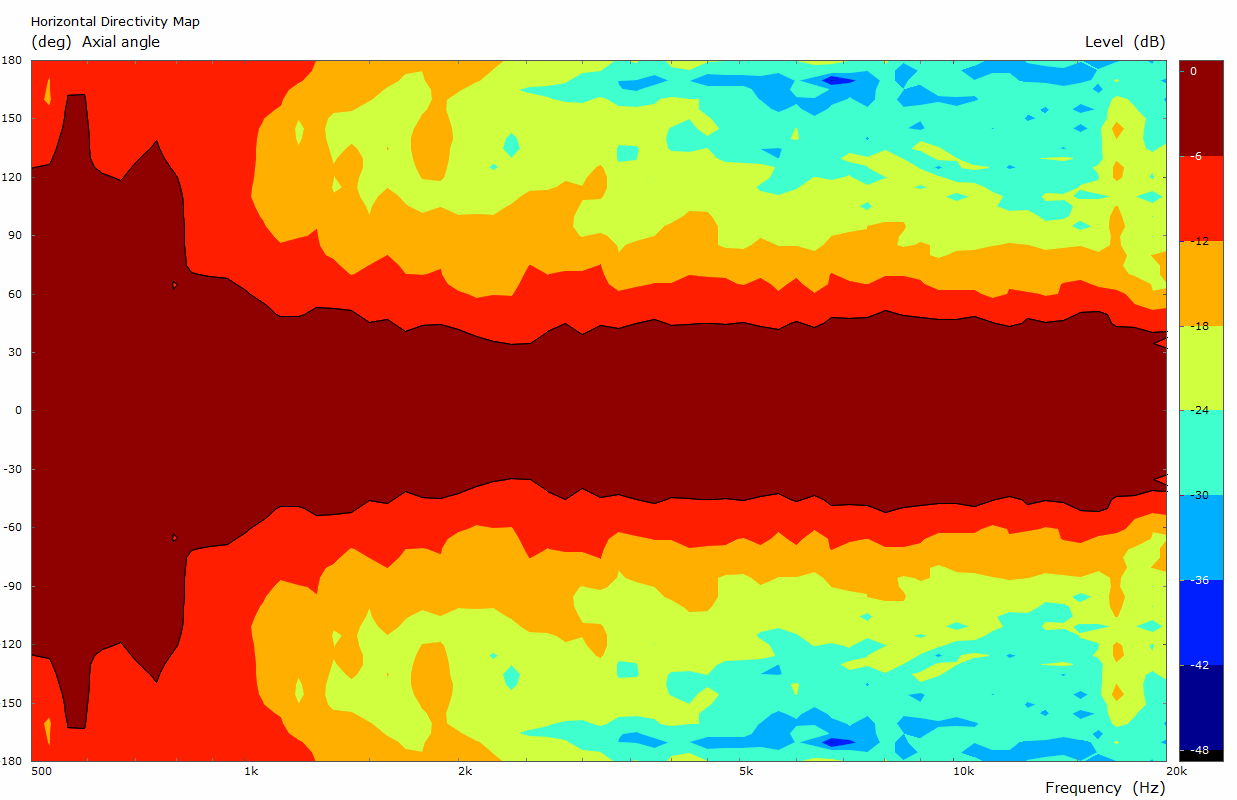

Horizontal Coverage
120 ° Max
Specifications HF unit
Minimum Impedance
7.8 Ω
Nominal Power Handling
110 W
Continuous Power Handling
220 W
Sensitivity
107.6 dB
Frequency Range
500 kHz - 18 kHz
Recommended Crossover
1 kHz
Voice Coil Diameter
75 mm (3 in)
Winding Material
CCAW
Flux Density
1.95 T
Diaphragm Material
Titanium
Min Frequency Range
500 kHz
Max Frequency Range
18 kHz
Mounting and Shipping Info
Exit Size
225x25.6 mm (8.9x1 in)
Net Weight
2.38 kg (5.25 lb)
Shipping Box
NaN in
Driver Diameter
112 mm (4.41 in)

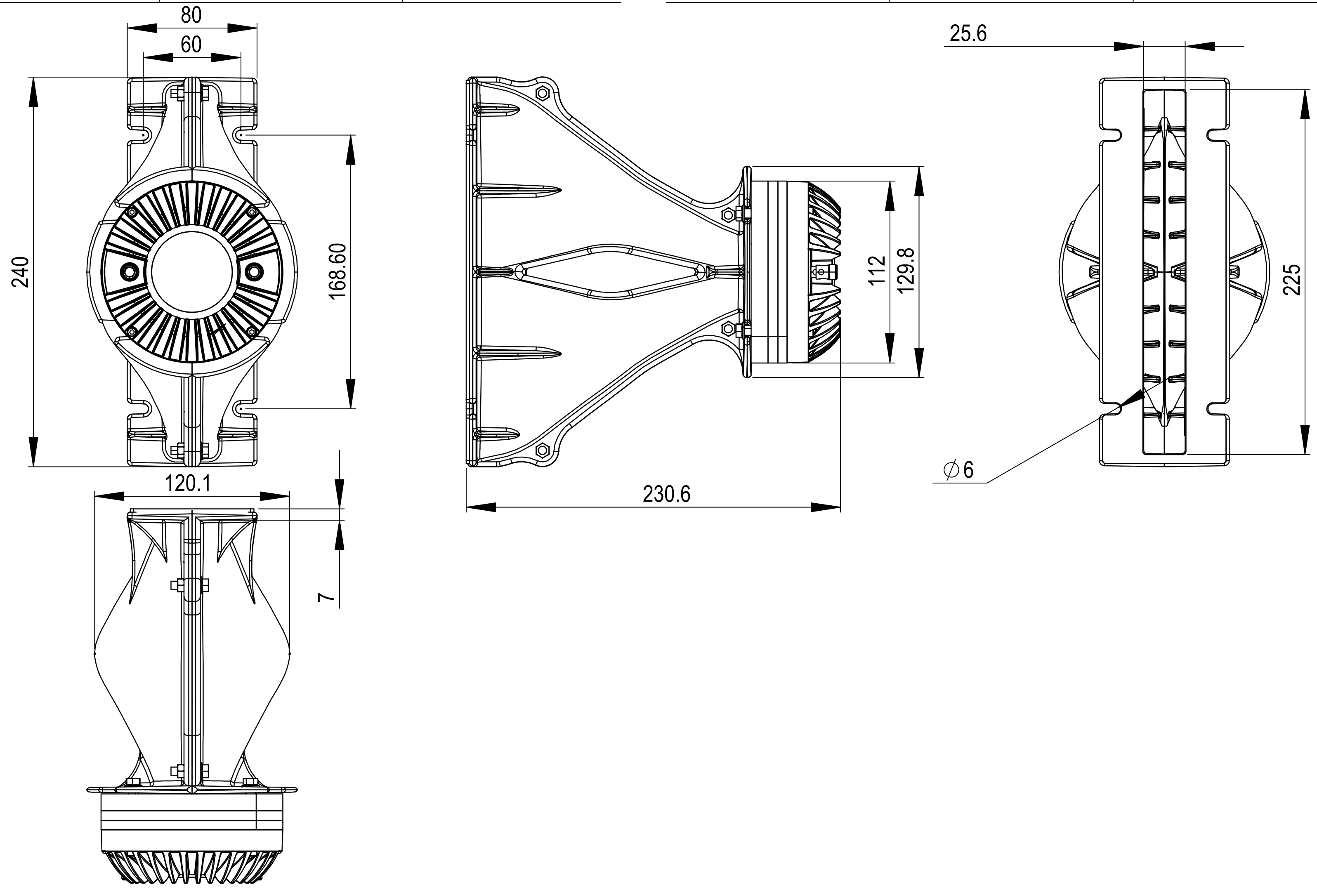

Dimensions
