Features
Line Array optimized Waveguide with DE990TN driver
120° max horizontal coverage
200 W continuous program power capacity
86 mm (3.4 in) CCAW voice coil
Titanium diaphragm
500 - 18000 Hz response
107.5 dB sensitivity
Neodymium magnet assembly with shorting copper cap
Specifications Horn unit
Nominal Impedance
8 Ω
Active Radiating Factor
93.7 %
Horizontal Coverage
120 ° Max
Specifications HF unit
Minimum Impedance
7.8 Ω
Nominal Power Handling
100 W
Continuous Power Handling
200 W
Sensitivity
107.5 dB
Frequency Range
500 kHz - 18 kHz
Recommended Crossover
1 kHz
Voice Coil Diameter
86 mm (3.4 in)
Winding Material
CCAW
Flux Density
1.9 T
Diaphragm Material
Titanium
Min Frequency Range
500 kHz
Max Frequency Range
18 kHz
Mounting and Shipping Info
Exit Size
153x25 mm (6x1 in)
Net Weight
2.95 kg (6.5 lb)
Shipping Units
1 pcs
Shipping Weight
3.05 kg (6.72 lb)
Shipping Box
245x140x175 mm (9.6x5.5x6.9 in)
Driver Diameter
115 mm (4.53 in)

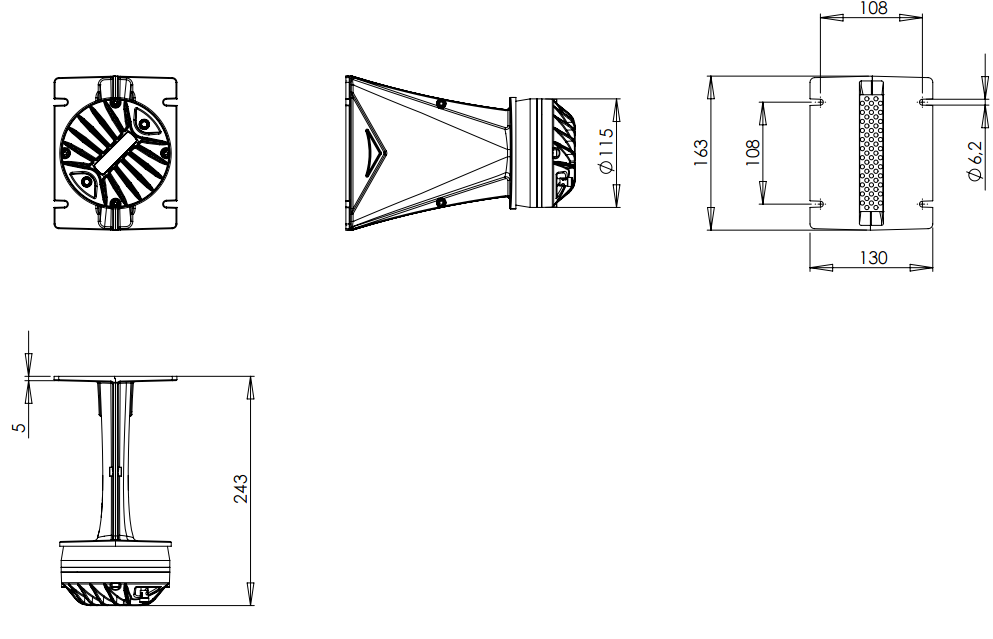

Dimensions
