Features
- 1400 W continuous program power capacity
- 88 mm (3.5 in) aluminIum wire voice coil

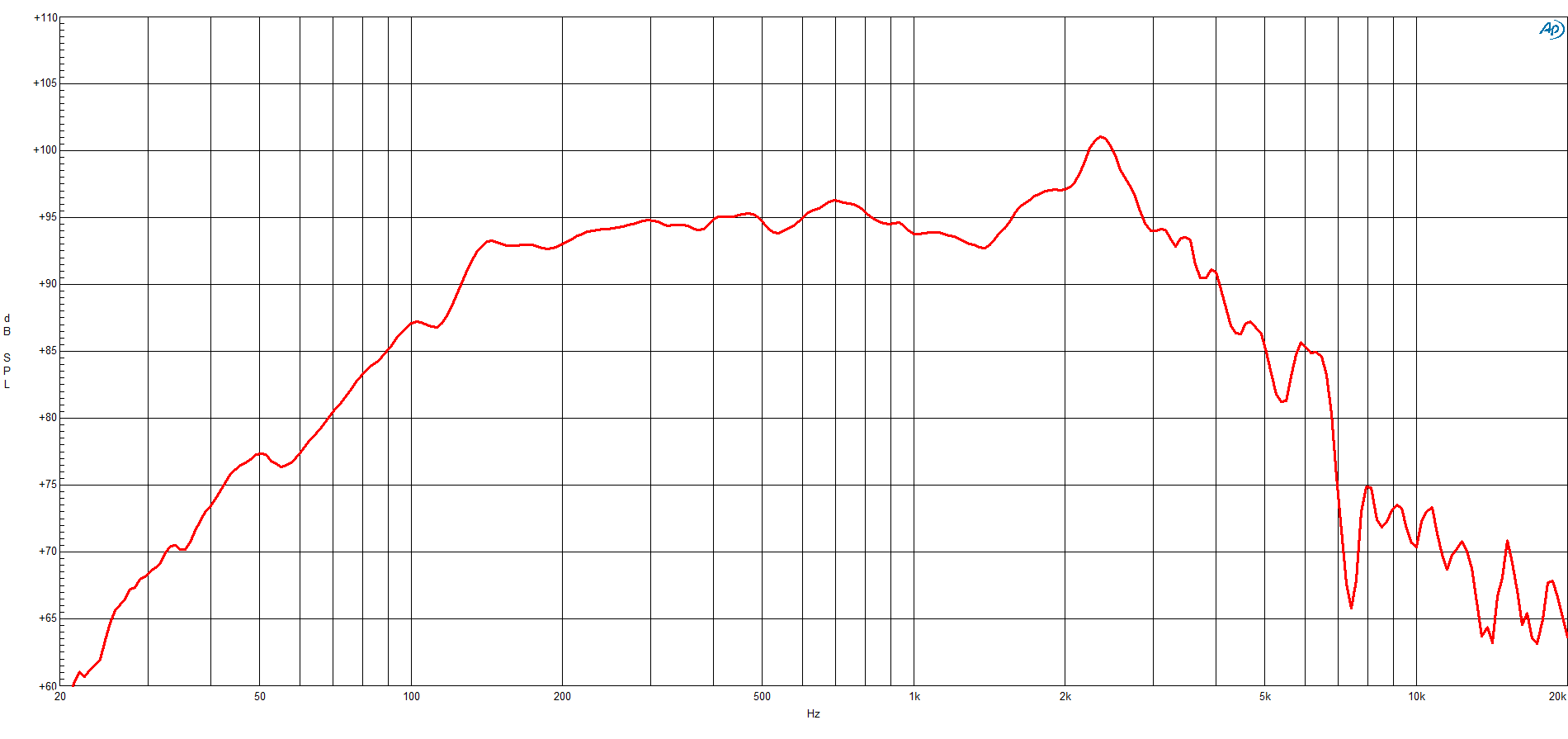

- 67 - 2500 Hz response
- 95.5 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring for very low distortion
- Ventilated voice coil gap for reduced power
Specifications
Nominal Diameter
250 mm (10 in)

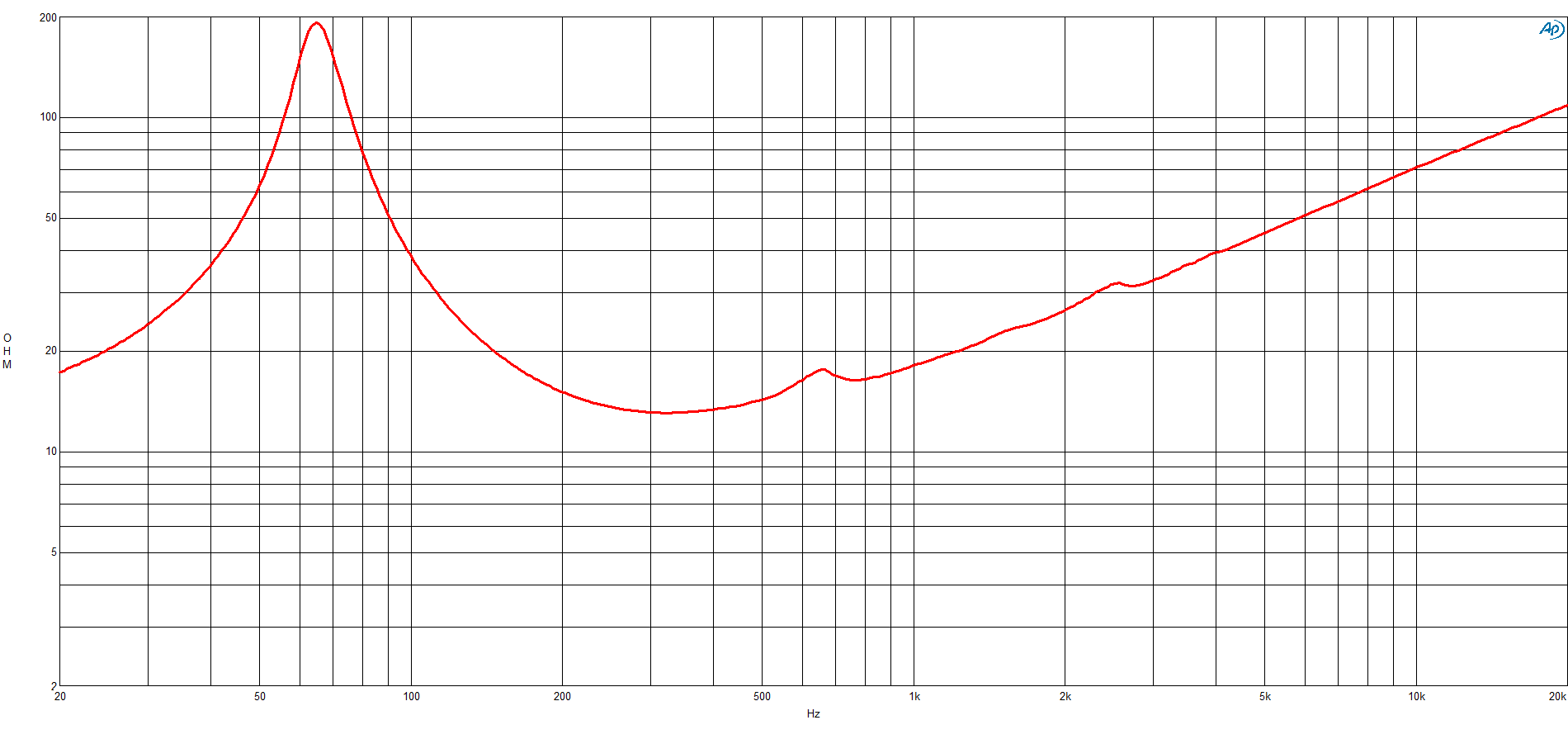

Nominal Impedance
16 Ω
Minimum Impedance
13.1 Ω
Nominal Power Handling
700 W
Continuous Power Handling
1400 W
Sensitivity
95.5 dB
Frequency Range
67 Hz - 2500 Hz
Voice Coil Diameter
88 mm (3.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
21 mm (0.83 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.05 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
67 Hz
Re
10.7 Ω
Qes
0.33
Qms
6.2
Qts
0.32
Vas
15.6 dm³ (0.55 ft³)
Sd
320 cm² (49.6 in²)
η0
1.42 %
Xmax
7.8 mm
Xvar
8 mm
Mms
52 g
Bl
26.4 Tm
Le
2 mH
EBP
203 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Curvilinear
Magnet Material
Neodymium Inside Slug
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
20 dm³ (0.71 ft³)
Recommended Tuning
70 Hz
Recommended Loading
Vented Box
Mounting and Shipping Info
Overall Diameter
261 mm (10.28 in)
Bolt Circle Diameter
246 mm (9.69 in)
Baffle Cutout Diameter
232 mm (9.13 in)
Depth
128 mm (5.04 in)
Flange and Gasket Thickness
14 mm (0.55 in)
Air Volume Occupied by Driver
1.5 dm³ (0.05 ft³)
Net Weight
4.6 kg (10.14 lb)
Shipping Units
1 pcs
Shipping Weight
5.2 kg (11.46 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
lf Recone Kit
RCK10NDL8816
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims
