    10CL51

    10 inches

    Woofer

    Features


    300 W continuous program power capacity
    51 mm (2 in) aluminium voice coil
    60 - 4000 Hz response
    96 dB sensitivity

    Specifications

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    5.8 Ω

    Nominal Power Handling

    150 W

    Continuous Power Handling

    300 W

    Sensitivity

    96 dB

    Frequency Range

    60 - 4000 Hz

    Voice Coil Diameter

    51 mm (2 in)

    Winding Material

    Aluminium

    Former Material

    Glass Fibre

    Winding Depth

    15 mm (0.59 in)

    Magnetic Gap Depth

    8 mm (0.31 in)

    Flux Density

    1.05 T

    Woofer Cone Treatment

    None

    Parameters

    Fs

    58 Hz

    Re

    5.2 Ω

    Qes

    0.42

    Qms

    3.5

    Qts

    0.38

    Vas

    36 dm³ (1.27 ft³)

    Sd

    320 cm² (49.6 sq²)

    η0

    1.57 %

    Xmax

    5.5 mm

    Xvar

    5.5 mm

    Mms

    30.5 g

    Bl

    11.6 Tm

    Le

    0.8 mH

    EBP

    138 Hz

    Design

    Surround Shape

    Double Roll

    Cone Shape

    Exponential

    Magnet Material

    Neodymium Inside Slug

    Spider

    Single

    Pole Design

    Straight Pole

    Woofer Cone Treatment

    None

    Recommended Enclosure

    32 dm³ (1.13 ft³)

    Recommended Tuning

    58 Hz

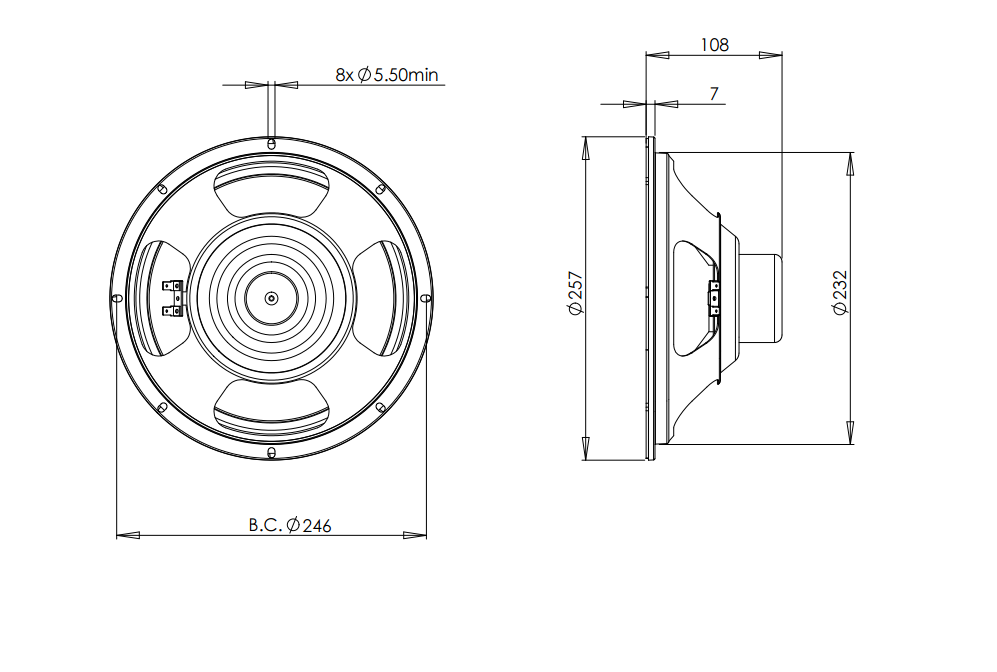

    Mounting and Shipping Info

    Overall Diameter

    257 mm (10.1 in)

    Bolt Circle Diameter

    246 mm (9.7 in)

    Baffle Cutout Diameter

    232 mm (9.1 in)

    Depth

    108 mm (4.25 in)

    Flange and Gasket Thickness

    7 mm (0.28 in)

    Air Volume Occupied by Driver

    1 dm³ (0.03 ft³)

    Net Weight

    1.3 kg (2.87 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    1.9 kg (4.19 lb)

    Shipping Box

    295x314x175 mm (11.61x12.36x6.89 in)

    Service Kit

    lf Recone Kit
    RCK10CL518
    • Cone

    • Basket

    • Dust Cap

    • Wooterprof Treatment

    • Centering Shims
