    10CL64

    10 inches

    Woofer

    NEW

    Features


    500 W continuous program power capacity
    64 mm (2.5 in) copper voice coil
    65 - 4000 Hz response
    96 dB sensitivity

    Specifications

    Nominal Diameter

    250 mm (10 in)

    Nominal Impedance

    8 Ω

    Minimum Impedance

    6.3 Ω

    Nominal Power Handling

    250 W

    Continuous Power Handling

    500 W

    Sensitivity

    96 dB

    Frequency Range

    65 Hz - 4000 Hz

    Voice Coil Diameter

    64 mm (2.5 in)

    Winding Material

    Copper

    Former Material

    Glass Fibre

    Winding Depth

    14.3 mm (0.56 in)

    Magnetic Gap Depth

    8 mm (0.31 in)

    Flux Density

    1.16 T

    Woofer Cone Treatment

    WP Waterproof Front Side

    Parameters

    Fs

    63 Hz

    Re

    5.3 Ω

    Qes

    0.33

    Qms

    5.1

    Qts

    0.31

    Vas

    22.2 dm³ (0.78 ft³)

    Sd

    320 cm² (49.6 sq²)

    η0

    1.69 %

    Xmax

    5.2 mm

    Xvar

    6 mm

    Mms

    41.6 g

    Bl

    16.3 Tm

    Le

    1.17 mH

    EBP

    191 Hz

    Design

    Surround Shape

    Double Roll

    Cone Shape

    Exponential

    Magnet Material

    Neodymium Inside Slug

    Spider

    Single

    Pole Design

    T-Pole

    Woofer Cone Treatment

    WP Waterproof Front Side

    Recommended Enclosure

    29 dm³ (1.02 ft³)

    Recommended Tuning

    65 Hz

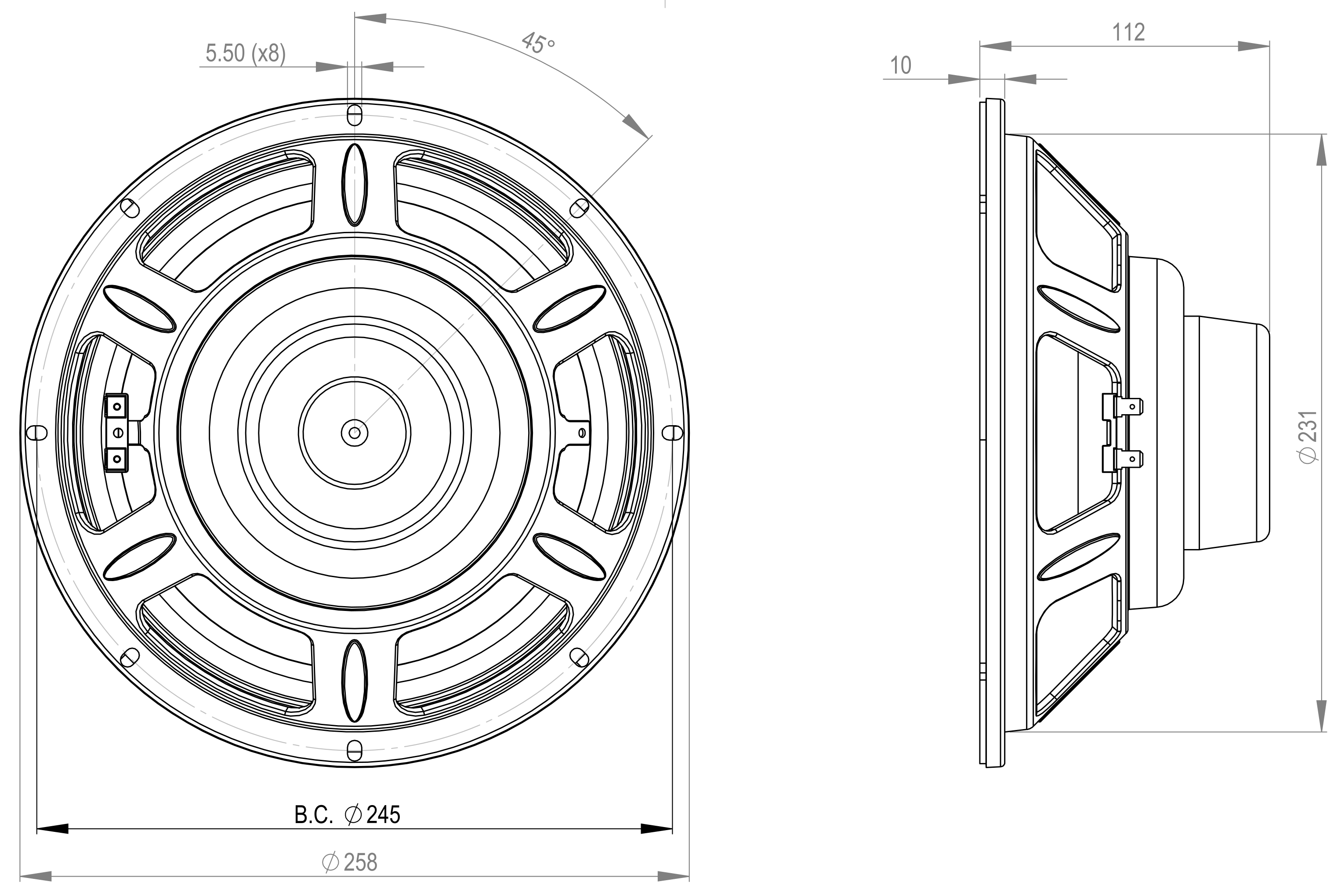

    Mounting and Shipping Info

    Overall Diameter

    258 mm (10.16 in)

    Bolt Circle Diameter

    245 mm (9.65 in)

    Baffle Cutout Diameter

    232 mm (9.13 in)

    Depth

    112 mm (4.41 in)

    Flange and Gasket Thickness

    10 mm (0.39 in)

    Air Volume Occupied by Driver

    1 dm³ (0.04 ft³)

    Net Weight

    2 kg (4.41 lb)

    Shipping Units

    1 pcs

    Shipping Weight

    2.6 kg (5.73 lb)

    Shipping Box

    295x314x175 mm (11.61x12.36x6.89 in)

    Service Kit

    lf Recone Kit
    RCK10CL648
    • Cone

    • Gasket

    • Dust Cap

    • Wooterprof Treatment

    • Centering Shims
