10CLA76
NEW
Careful optimization of our lightest woofer series, now offered with a high temperature copper-clad aluminum voice coil, is rewarded with higher sensitivity and smoother high frequency response. Larger motor makes these a good fit for many more applications, especially where flown, and manufacturing design means the CLA series can be price competitive with ferrite motor designs offering similar performance.
Features
800 W continuous program power capacity
76 mm (3 in) aluminum voice coil
70 - 2500 Hz response
96.5 dB sensitivity
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Nominal Power Handling
400 W
Continuous Power Handling
800 W
Sensitivity
96.5 dB
Frequency Range
70 - 2500 Hz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
18.5 mm (0.73 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.2 T
Woofer Cone Treatment
TWP Waterproof Both Sides
Parameters
Fs
71 Hz
Re
5.2 Ω
Qes
0.3
Qms
6.72
Qts
0.29
Vas
16.4 dm³ (0.58 ft³)
Sd
320 cm² (49.6 sq²)
η0
1.92 %
Xmax
6.5 mm
Xvar
7 mm
Mms
44.7 g
Bl
18.55 Tm
Le
1.14 mH
EBP
237 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Neodymium Inside Slug
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
TWP Waterproof Both Sides
Recommended Enclosure
29 dm³ (1.02 ft³)
Recommended Tuning
70 Hz

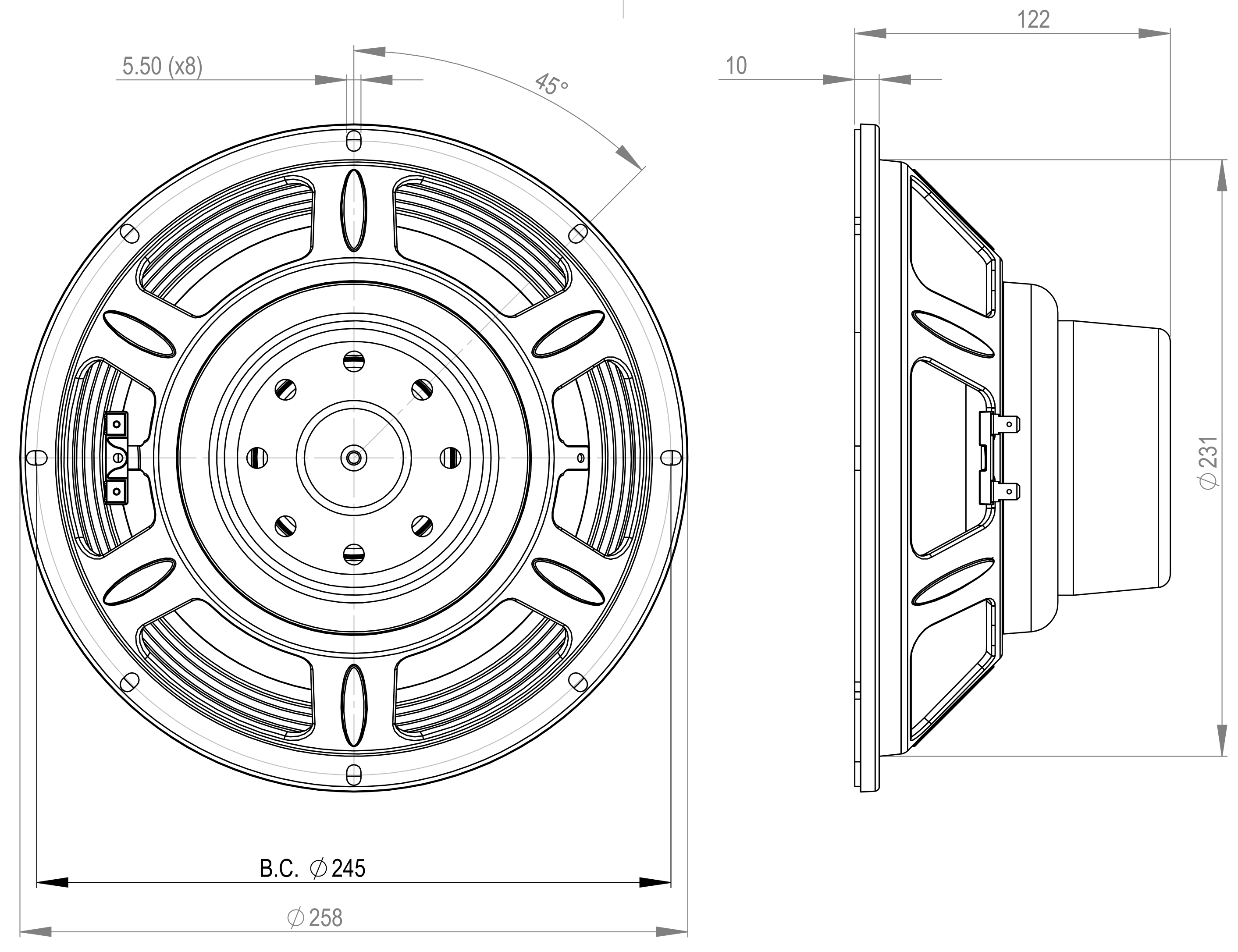

Mounting and Shipping Info
Overall Diameter
258 mm (10.16 in)
Bolt Circle Diameter
245 mm (9.65 in)
Baffle Cutout Diameter
232 mm (9.13 in)
Depth
122 mm (4.8 in)
Flange and Gasket Thickness
10 mm (0.39 in)
Air Volume Occupied by Driver
1.6 dm³ (0.06 ft³)
Net Weight
3.15 kg (6.94 lb)
Shipping Units
1 pcs
Shipping Weight
3.75 kg (8.27 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
lf Recone Kit
RCK10CLA768
Cone
Basket
Dust Cap
Wooterprof Treatment
Centering Shims
