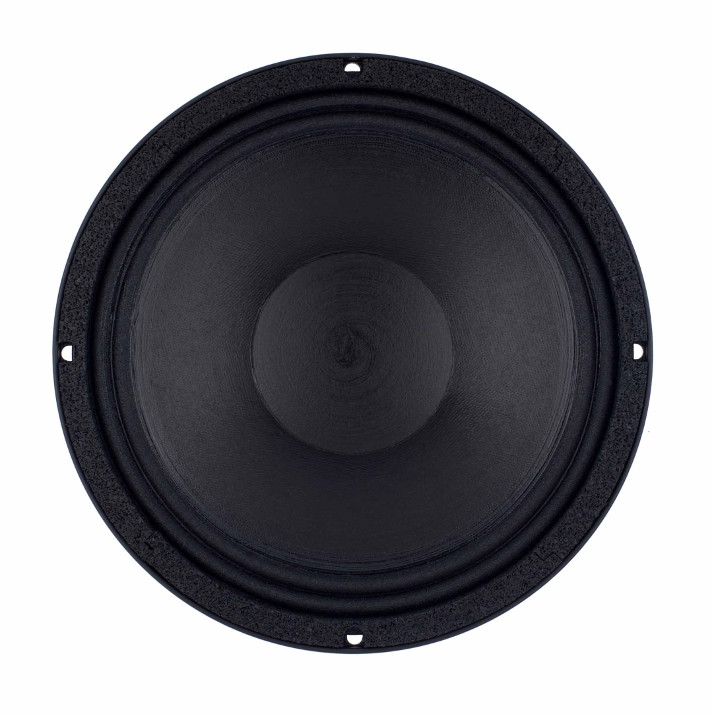

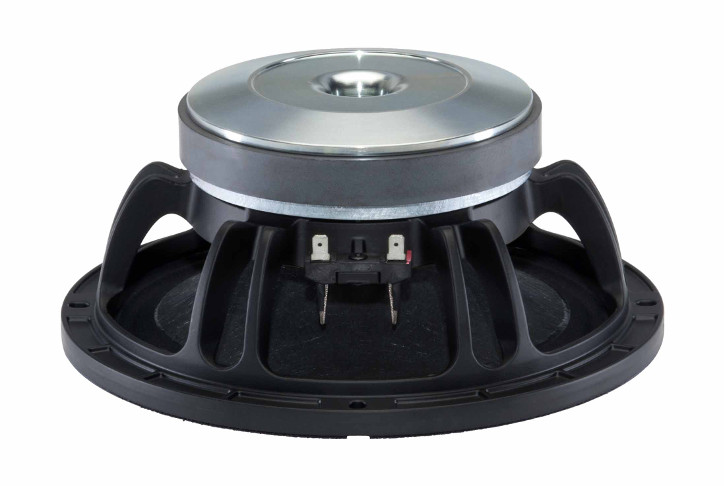

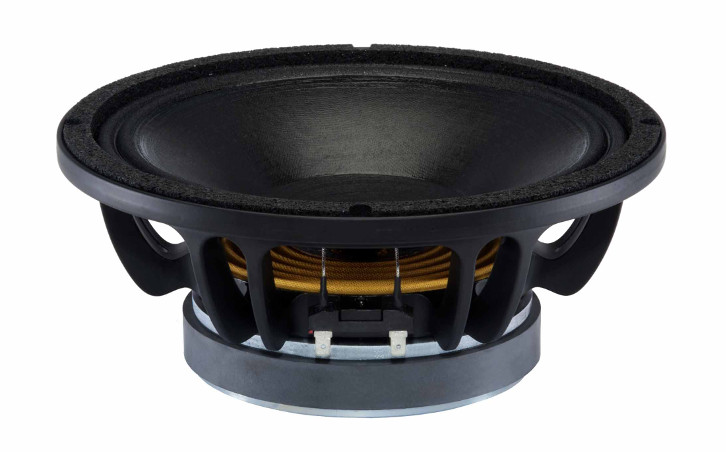

10FL64
The 10FL64 is a wide band woofer with voice forward midrange. They are especially appropriate in applications such as KTV or vocal announcements where digital processing may not be in the budget.
Features
- 500 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 65 - 2500 Hz response
- 96 dB sensitivity
- Shorting copper cap for extended HF response
Specifications
Nominal Diameter
250 mm (10 in)

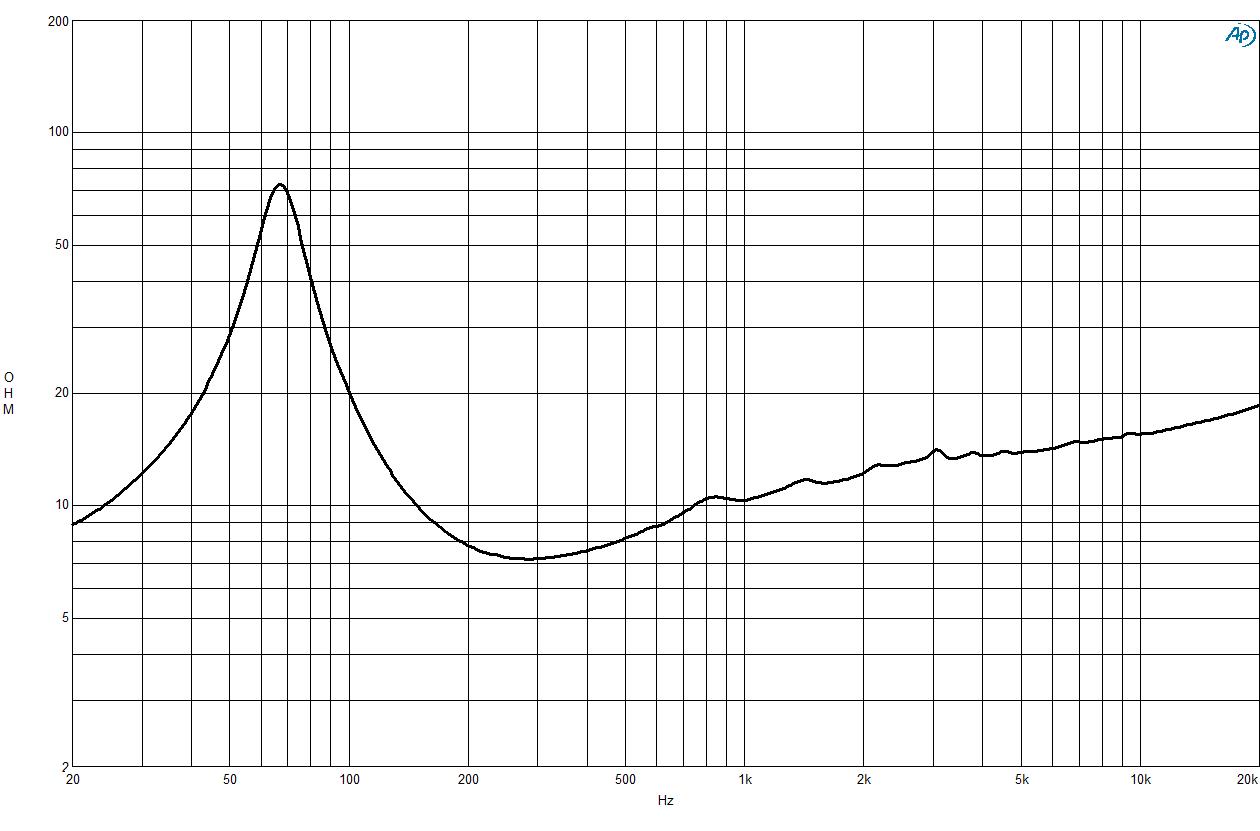

Nominal Impedance
8 Ω
Minimum Impedance
7.3 Ω
Nominal Power Handling
250 W
Continuous Power Handling
500 W
Sensitivity
96 dB

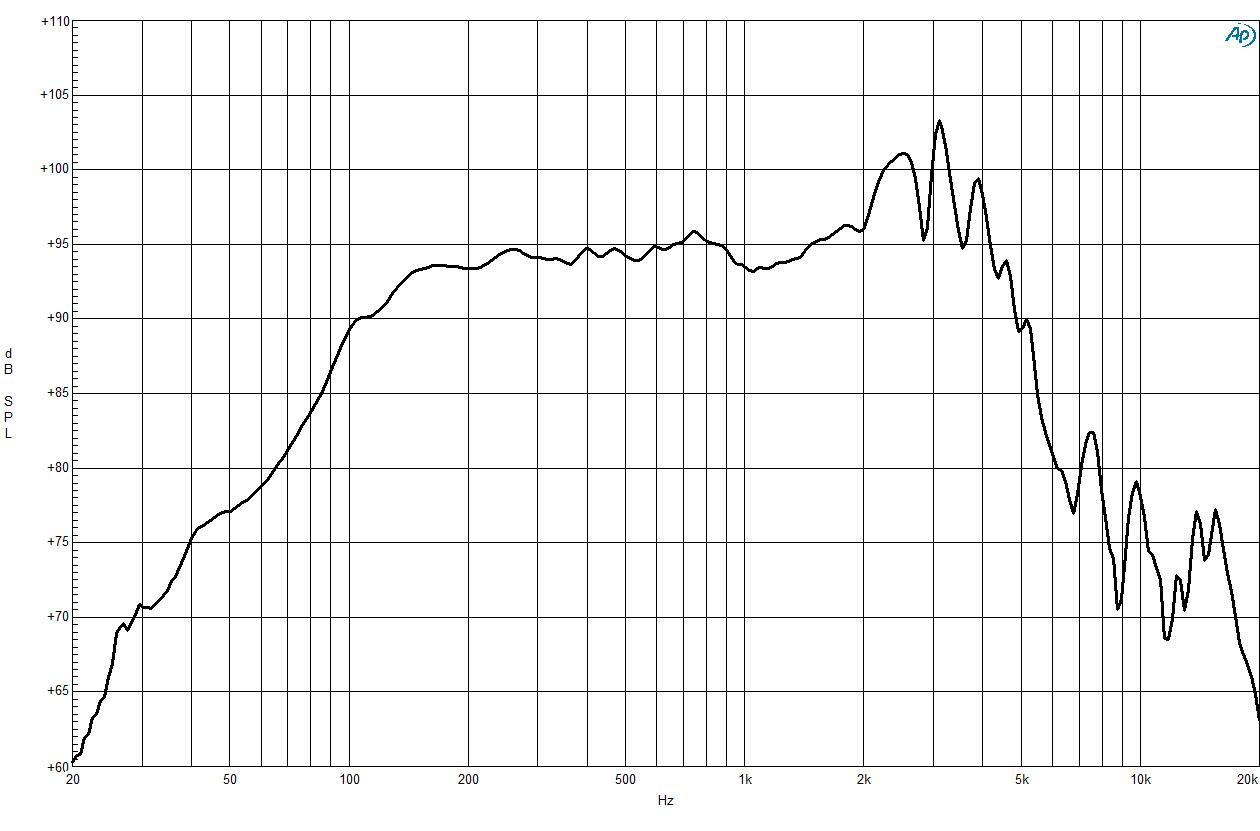

Frequency Range
65 Hz - 2500 Hz
Voice Coil Diameter
64 mm (2.52 in)
Winding Material
Copper
Former Material
Kapton
Winding Depth
13 mm (0.51 in)
Magnetic Gap Depth
9 mm (0.35 in)
Flux Density
1.2 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
63 Hz
Re
5.6 Ω
Qes
0.34
Qms
5.4
Qts
0.32
Vas
23 dm³ (0.81 ft³)
Sd
320 cm² (50 in²)
η0
1.7 %
Xmax
5 mm
Xvar
6 mm
Mms
38 g
Bl
16 Tm
Le
0.7 mH
EBP
185 Hz
Design
Surround Shape
Double Roll
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Single
Pole Design
Straight Pole
Woofer Cone Treatment
WP Waterproof Front Side

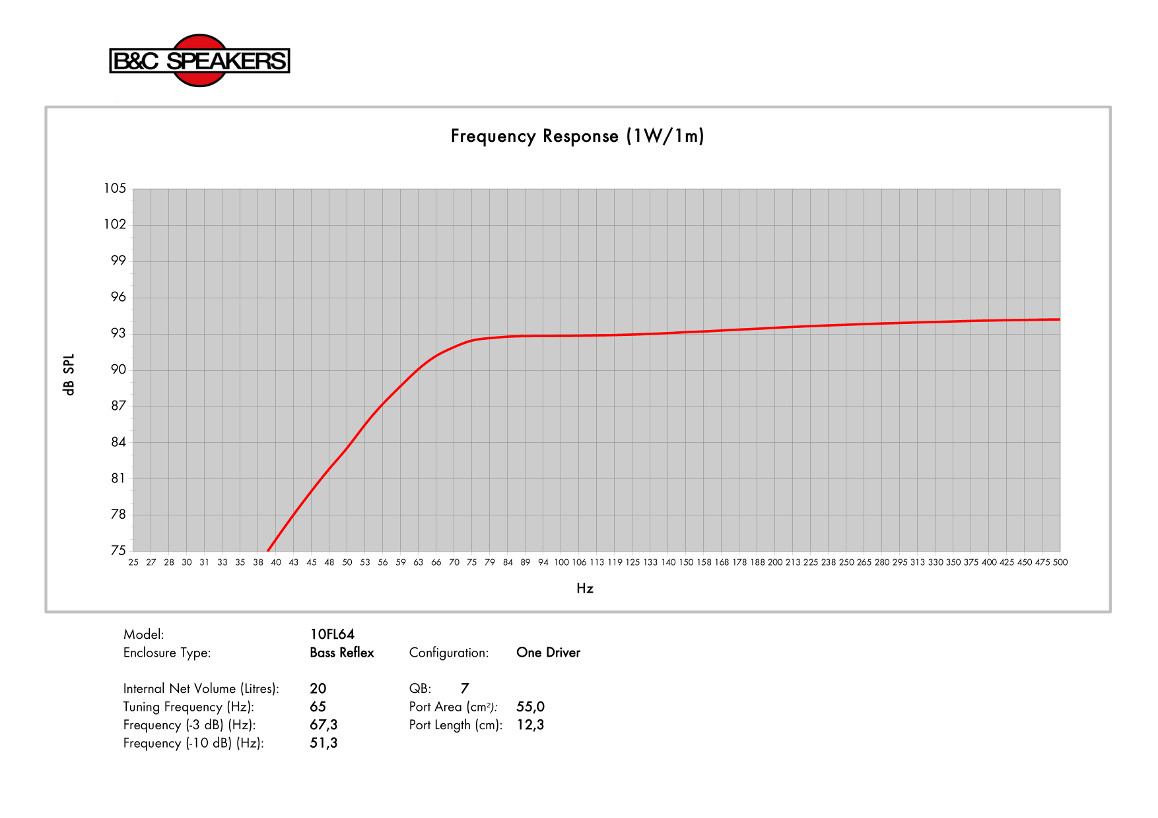

Recommended Enclosure
25 dm³ (0.88 ft³)
Recommended Tuning
65 Hz
Mounting and Shipping Info
Overall Diameter
261 mm (10.28 in)
Bolt Circle Diameter
245 mm (9.6 in)
Baffle Cutout Diameter
230 mm (8.8 in)
Depth
105 mm (4.13 in)
Flange and Gasket Thickness
12 mm (0.49 in)
Air Volume Occupied by Driver
2 dm³ (0.07 ft³)
Net Weight
4.8 kg (10.58 lb)
Shipping Units
1 pcs
Shipping Weight
5.4 kg (11.9 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
lf Recone Kit
RCK10FL648
Cone
Gasket
Centering Shims
